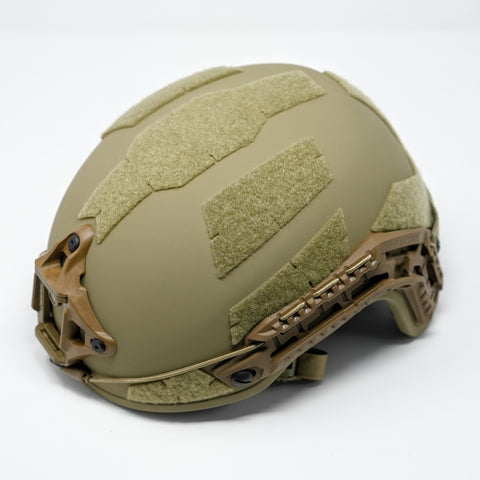

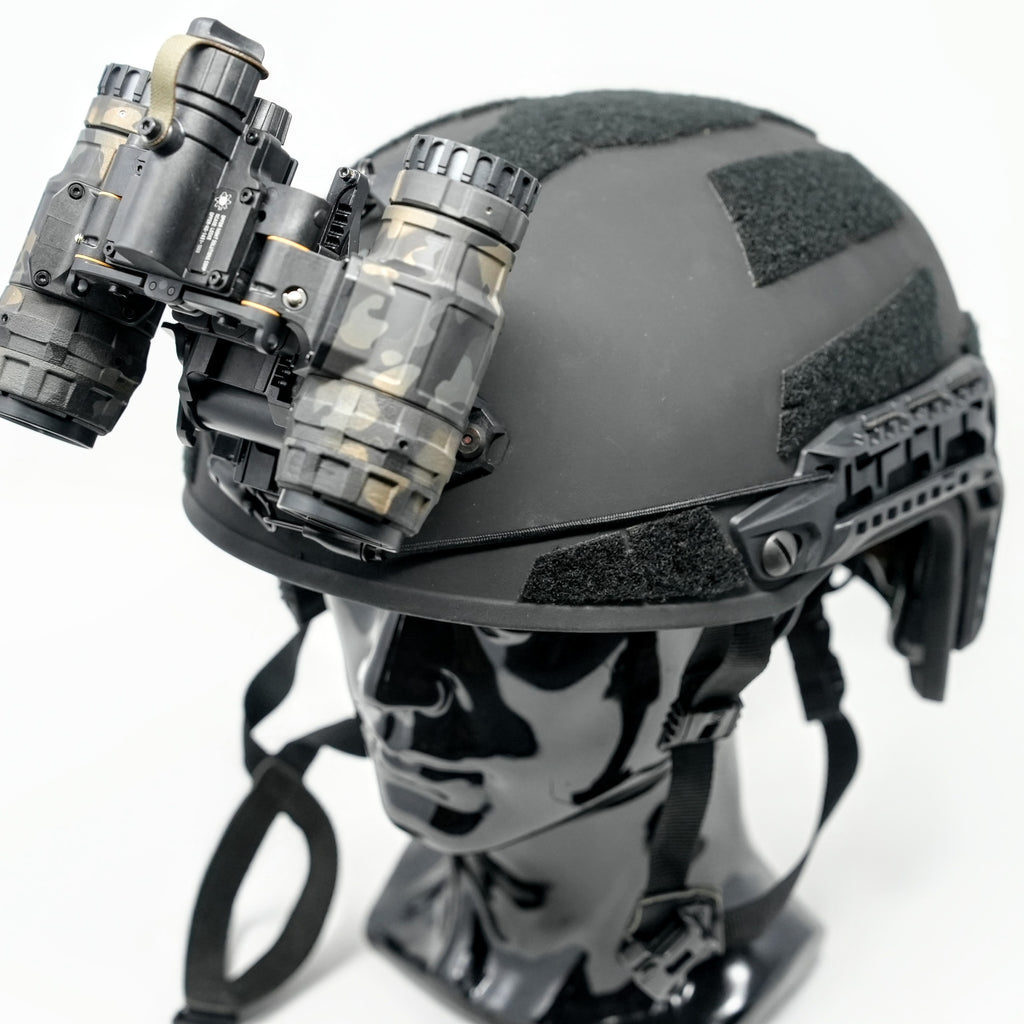

THE CAIMAN BALLISTIC HELMET SYSTEM is a streamlined, lightweight next-generation Special Operations helmet solution. A series of modular accessories—including a Wilcox® Shroud, a lean rail system, and the innovative, multi-size APEX Liner System—enhance this helmet suite, ensuring users are equipped with the lightest, most comfortable, and highest performance head protection possible.
Working directly with SOF operators, Revision built the Caiman Helmet System from the ground up, crafting a helmet solution designed for peak performance in high-intensity, volatile conditions—optimized for riverine, maritime, high-altitude, free-fall, and ground maneuvers. The result: an unconventional helmet system for unconventional missions.
Features
The Helmet System exceeds industry standard impact requirements
- Five Helmet Sizes: 39% of users benefit from better-fitting, comfortable, and lighter helmet
- Weight: Advanced materials and manufacturing processes achieve lightweight helmet solution
- Best-in-class APEX Liner System is infinitely customizable, providing the ultimate comfort and impact protection
- Entire helmet system is designed to seamlessly integrate with other military and communications equipment
- Suite designed for a range of uses including ground and maritime environments
- Integrated and Scalable System: Up or down armor with rails, NVG shroud, and optional full-face protection accessories (various visors and mandible guards)
- Ground-up design: minimizes weight & bulk while offering maximum protection & performance
- Apex Liner System
- Impact liner provides best-in-class impact protection
- Comfort liner – optimized for stability, comfort and heat mitigation
- Removable, repositionable sections – for integration with overhead communications equipment
- Dial Ratchet Mechanism adjusts the fit band – provides on-the-fly dial adjustment
- Easily adjusted for a comfortable fit
SKELETONIZED RAILS
- Ensures integration with dove-tail style attachments and O2 mask clips as well as other performance enhancing equipment – including ballistic and bump mandible guards
- Skeletonized rails – rugged, durable design but 30% lighter than current rails
- Built-in bungees provide integrated cable management and stability for NVGs
BALLISTIC PERFORMANCE
- 2gr FSP V50: > 1242 m/s (4075 ft/s)
- 4gr FSP V50: > 1052 m/s (3450 ft/s)
- 16gr FSP V50: > 739 m/s (2425 ft/s)
- 64gr FSP V50: > 518 m/s (1700 ft/s)
- 17gr FSP V50: > 670 m/s (2200 ft/s)
- 9mm RTP: Remington 124 grain FMJ, 9x19 mm projectile at 1195 + 50ft/s
- 9mm BFD: Remington 124 grain FMJ, 9x19 mm projectile at 1195 + 50ft/s 29 mm (All locations)
- Stops NIJ level IIIA Threats: (9mm, 44 mag & .357 SIG) (NIJ 0106.01)
BLUNT IMPACT PROTECTION
- Meets ACH requirements: 150g in all directions for 3 m/s (10 ft/s) impact
Weight
- Full system weight: 1124 g (40 oz., 2.5 lbs.)-(Medium Size)
- (Includes: Ballistic Shell, Wilcox® L4 Shroud, Rails, Liner & Retention System)
-
Shell Weight
SMALL: 1.47 lbs (0.67 kg)
MEDIUM: 1.53 lbs (0.69 kg)
LARGE: 1.61 lbs (0.73 kg)
X-LARGE: 1.77 lbs (0.80 kg)
XX-LARGE: 1.92 lbs (0.87 kg)
