Argus Panoramic Nightvision Goggle (APNVG)
Panoramic night vision devices represent the absolute best field of view that a night vision device can provide. Enabling unmatched situational awareness they allow you to move faster and make better, smarter decisions.
Description

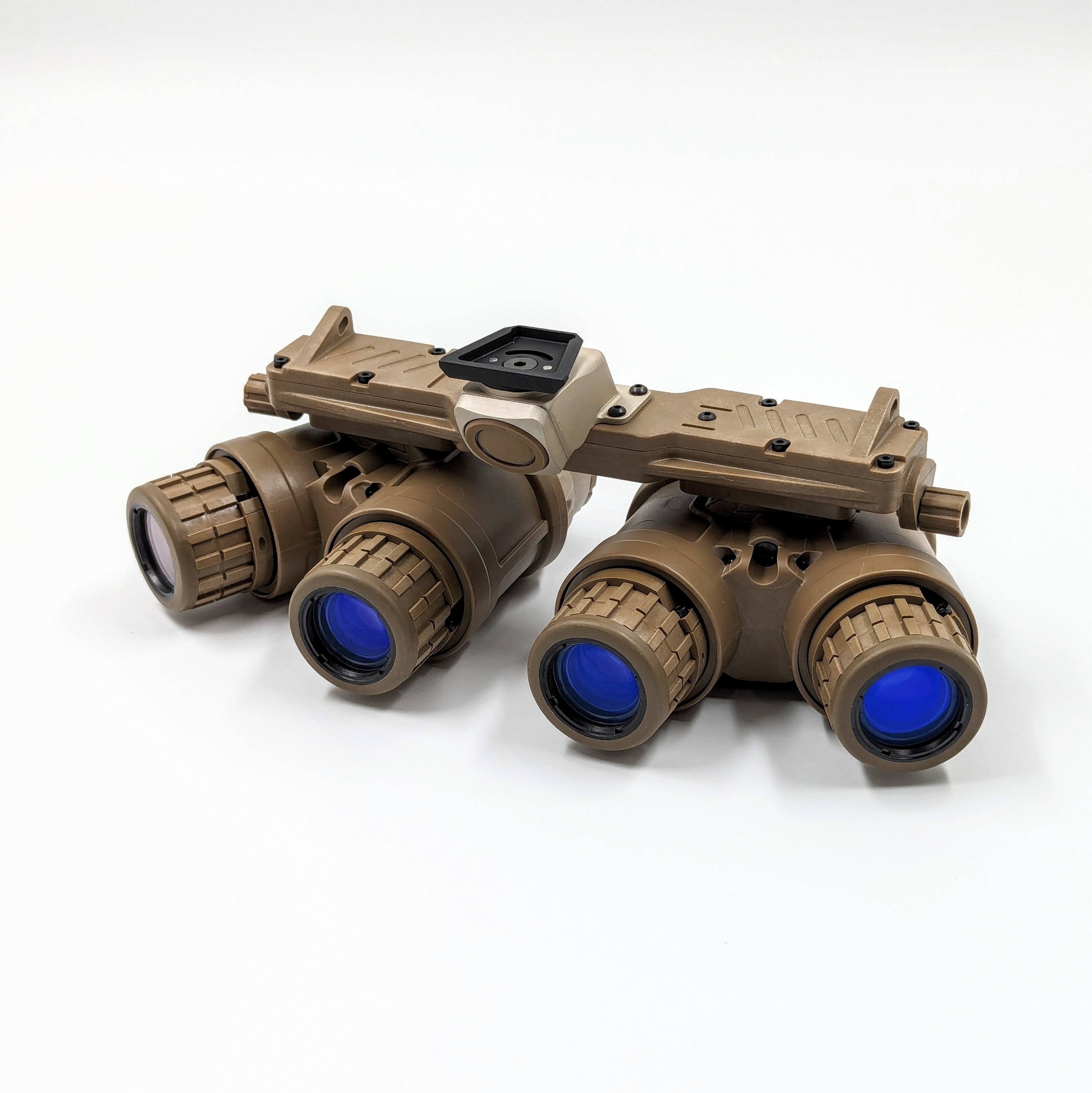

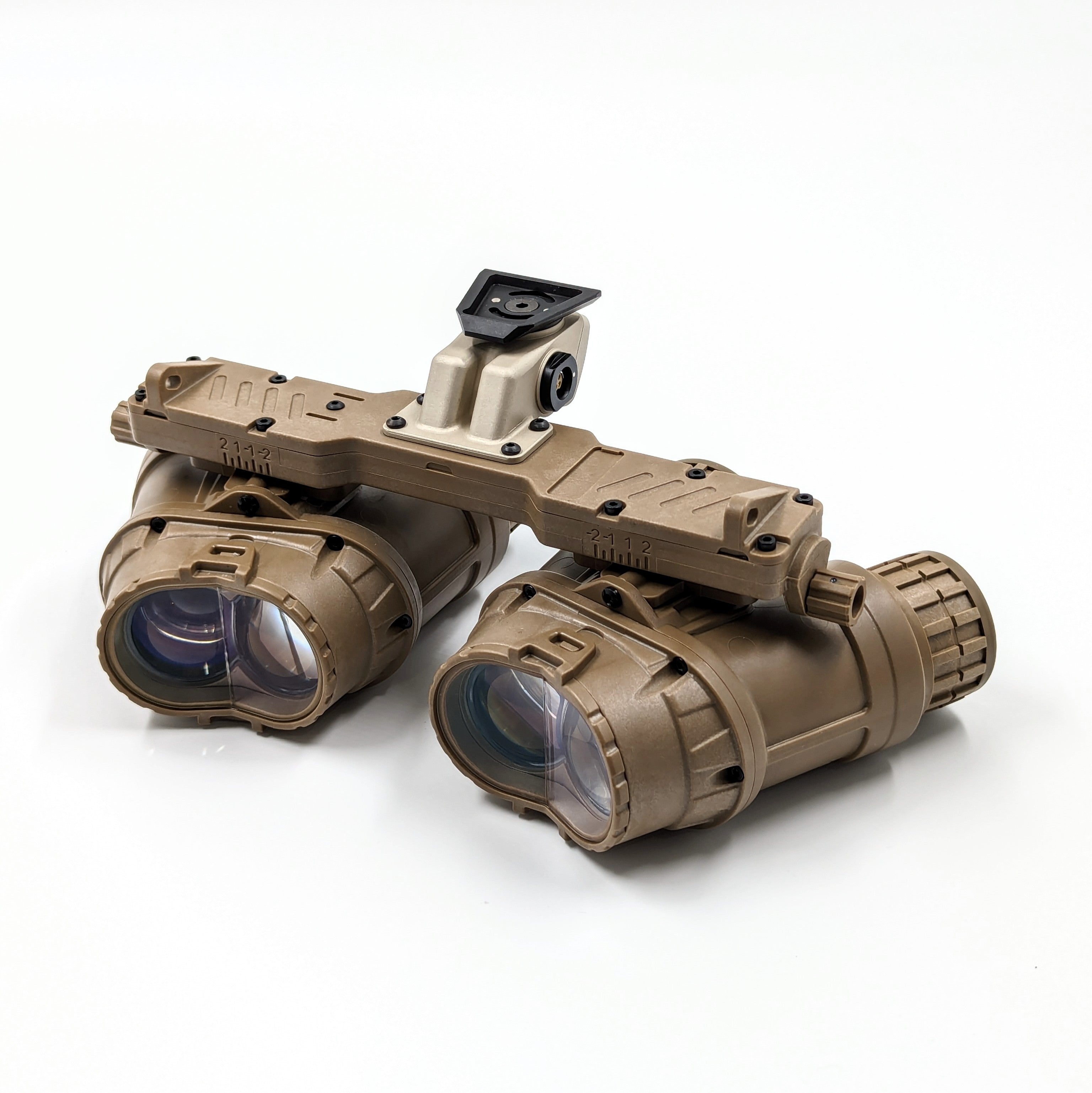

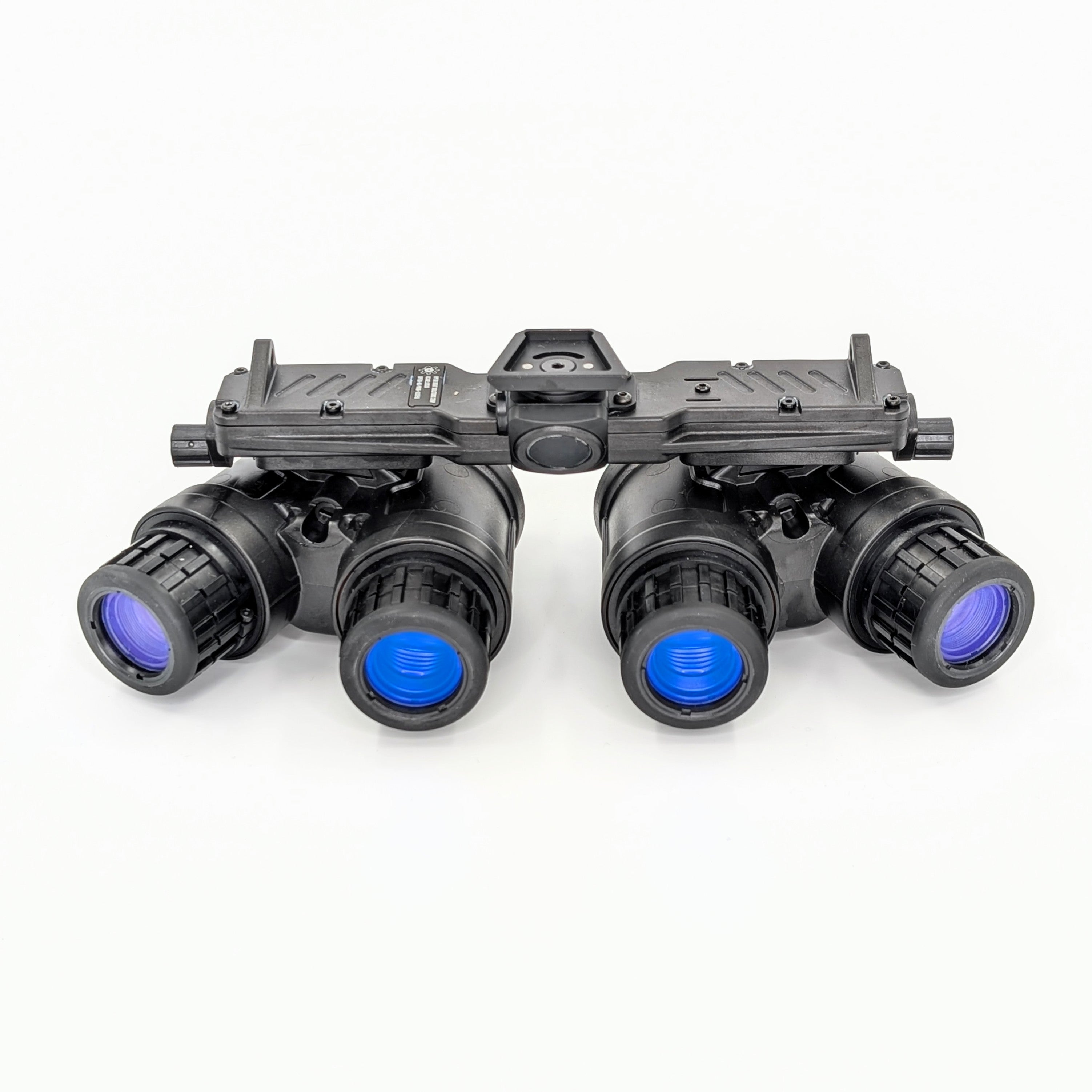

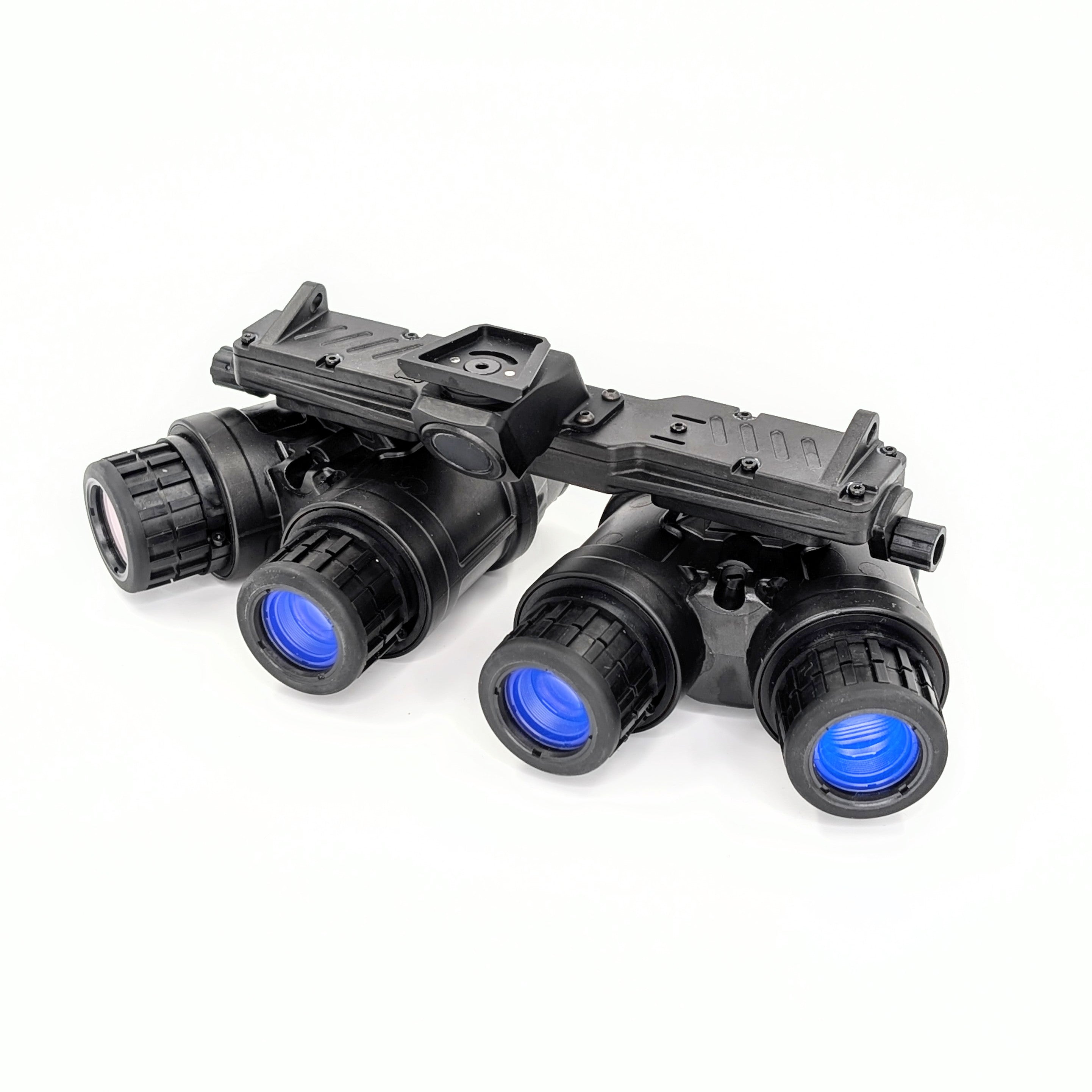

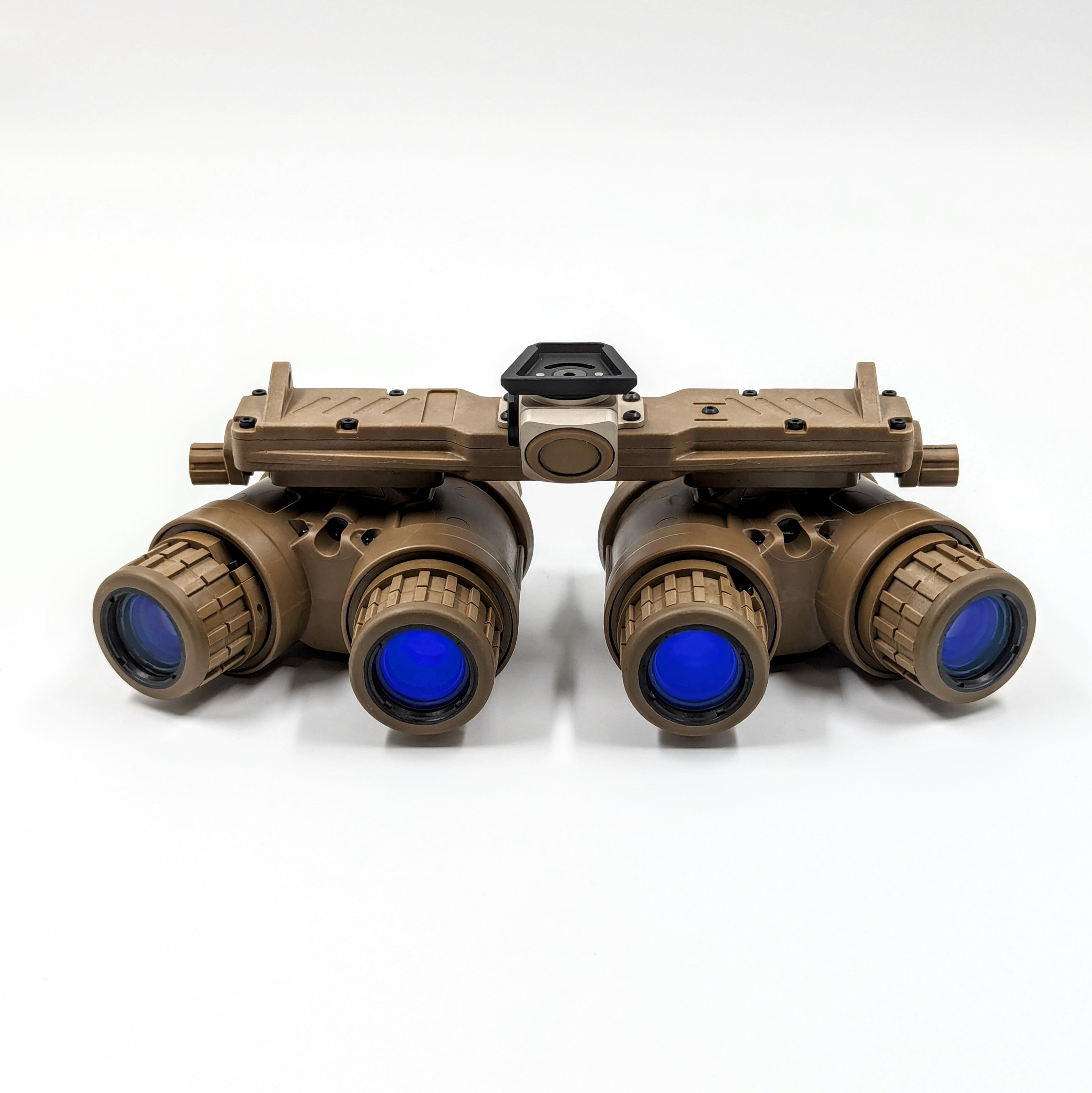

The Argus Panoramic Nightvision Goggle (APNVG) is a panoramic goggle system that increases a user's field of view from a typical 40 degree monocular or binocular system up to 100 degrees. The APNVG uses four image intensifier tubes in order to provide the increased field of view without decreasing system resolution or compromising collimation.
As the two center tubes are parallel and point forward, the center tubes will provide depth perception and increased perceived resoution and acuity through by providing stereoscopic vision. The outboard pointing tubes on each side will provide additional peripheral vision to the side that they are on, thus the user will perceive three circular fields of view.
Our APNVG systems are assembled and calibrated on our Hoffman Engineering ANV-126A with our custom PNVG collimation adapter - all inside our facility's NVG clean room. They will be vacuum tested and argon purged using our digital purge machine to ensure water proofing.
All of our built systems will features hand select tubes in the center.
The APNVG is powered using external power from a Fischer plug, an Argus Universal Strobe Battery Pack (USBP) is included with each APNVG.
Key Features:
- 100 Degree Field of View for increased user awareness
- High resolution lens system
- Fully collimating lens system
- Waterproof - 2 meters for 30 minutes
- Warranted for 5 years against manufacturing defects - physical damage and improper assembly/disassembly are not covered
- Assembled in our facility in Canada

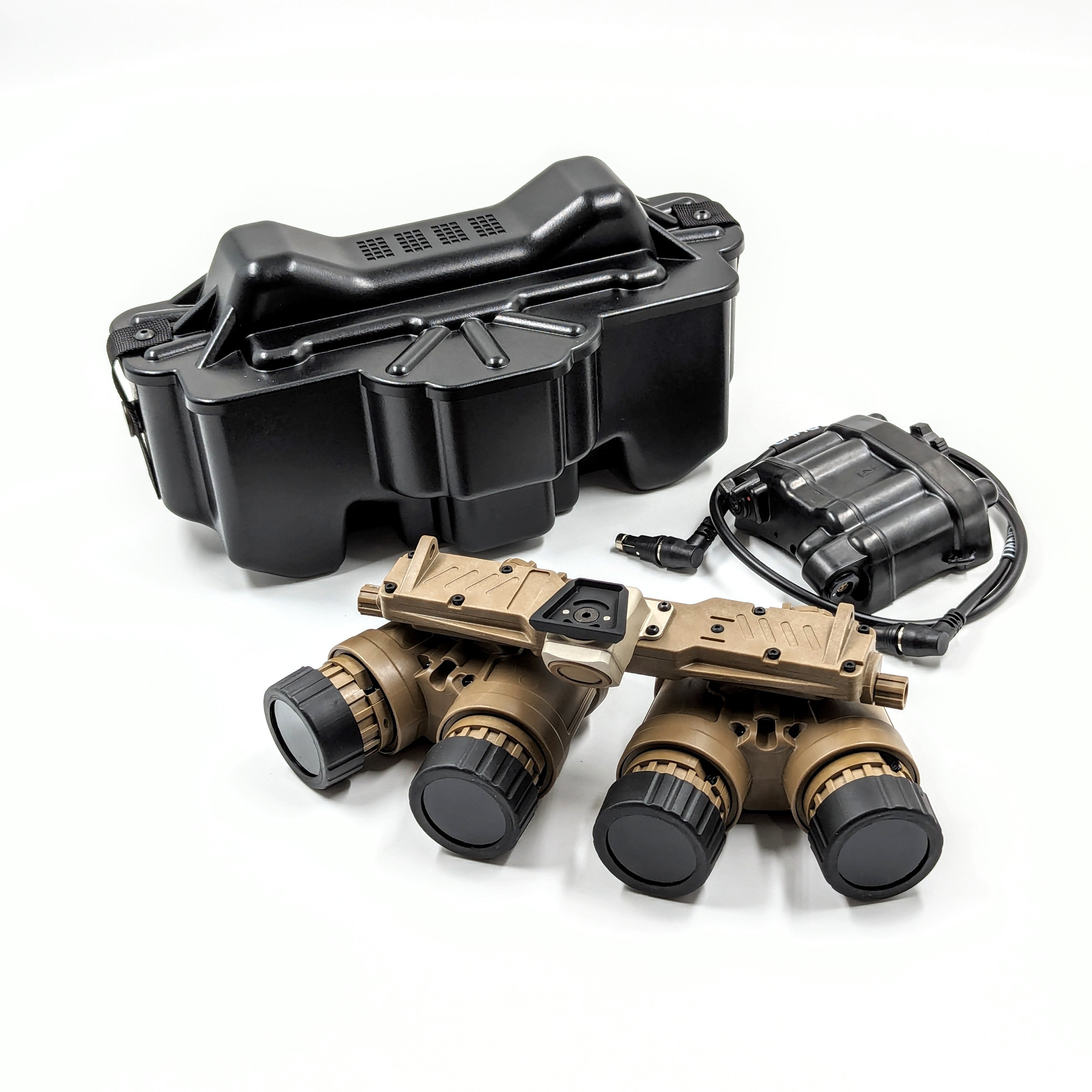

Package Includes:
- APNVG
- Hard Carrying Case
- Argus Universal Strobe Battery Pack

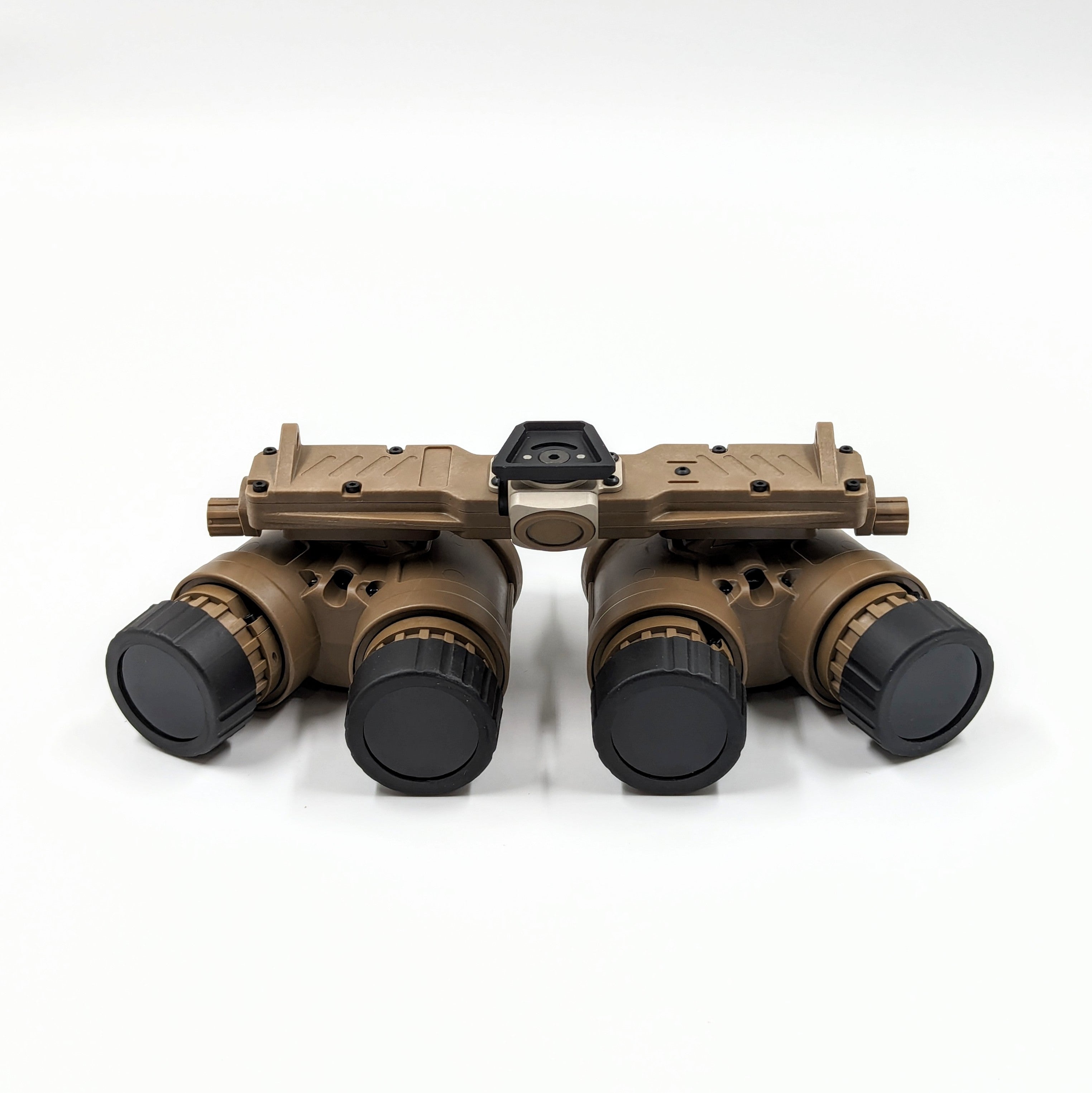

- High Light Filters
Origin:
Housing Components and Lenses Manufactured in China
Tubes Made in France or China
Fully assembled and QC'd in Canada
Understanding the difference
Panoramic night vision increases your field of view from the standard 40° found with both mono and bino.
This increase in situational awareness allows for faster, better decisions in fast paced team environments as well as driving or other dynamic activities.
While panos don't really give greater depth perception in terms of what you see in front of you, they provide much greater awareness of your position within a space.
Standard 40°

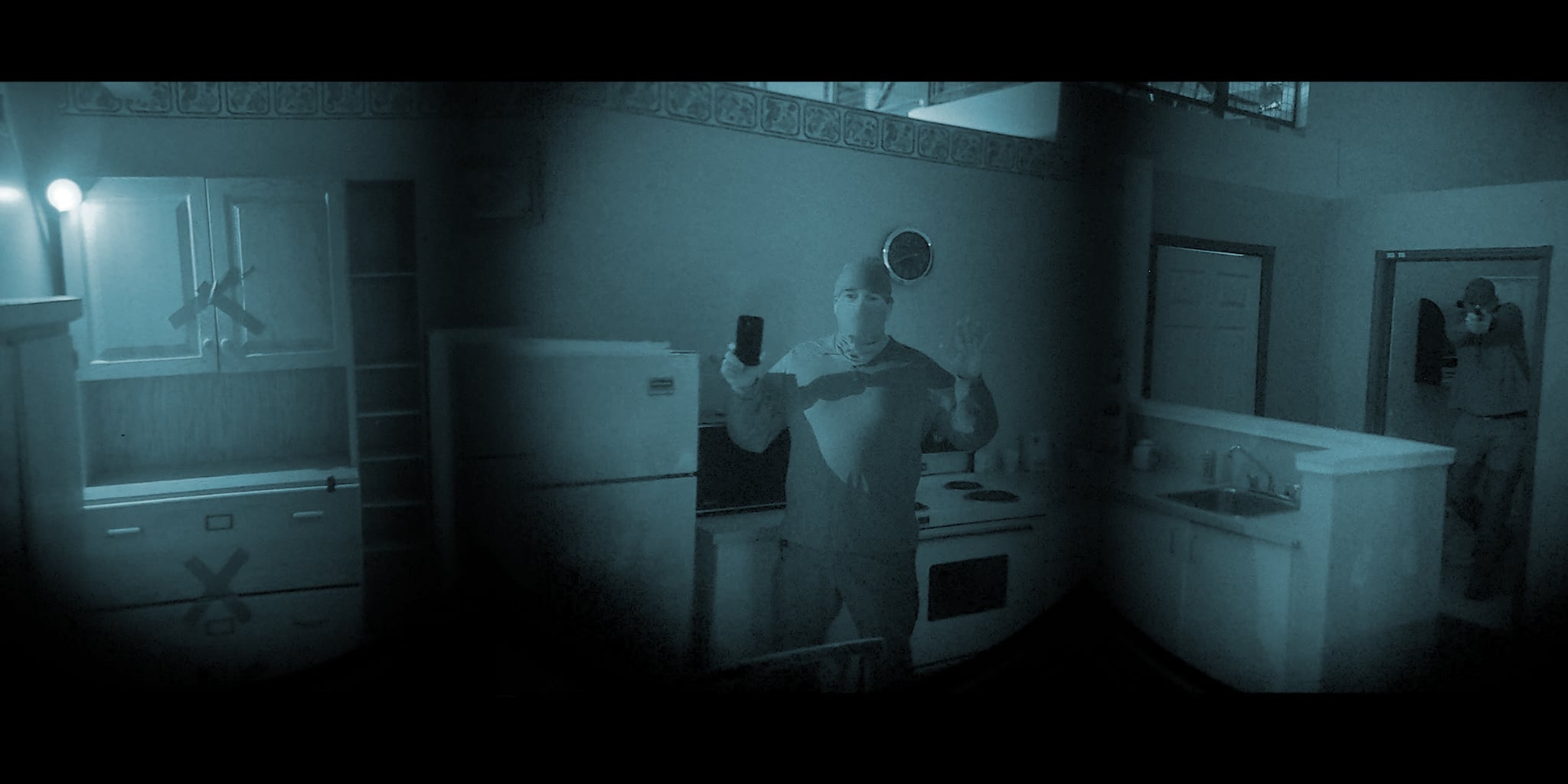

Pano ~100°
