OVERVIEW

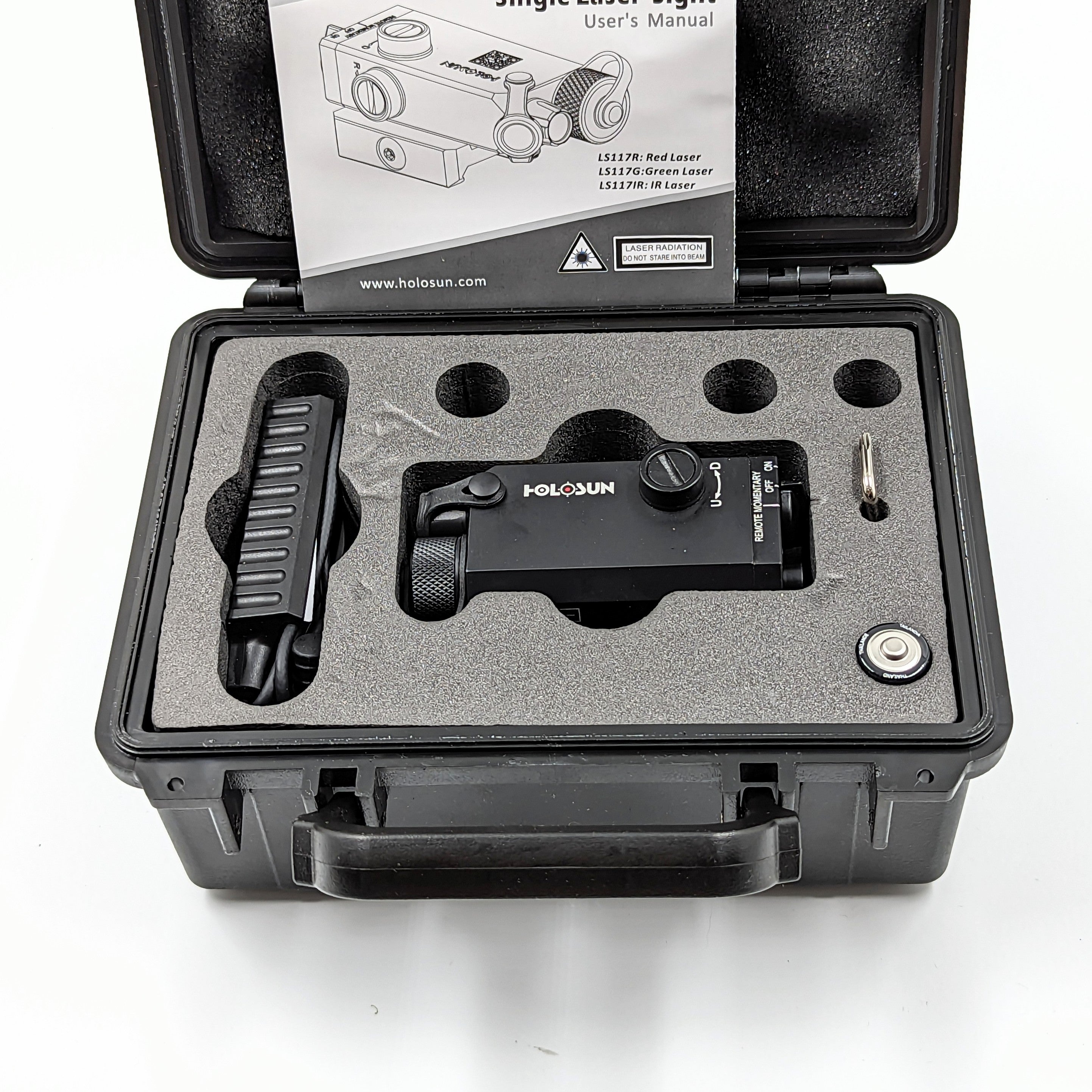

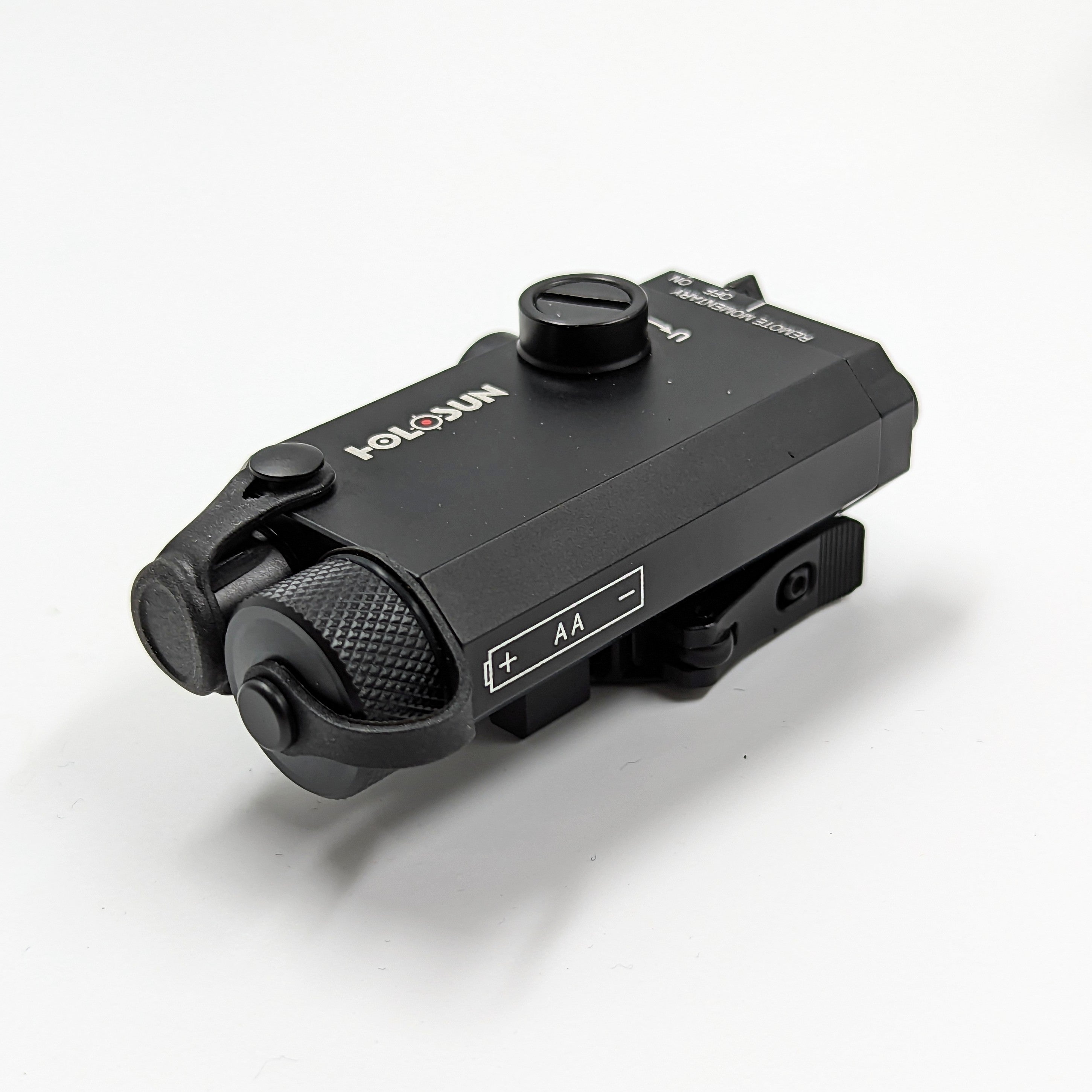

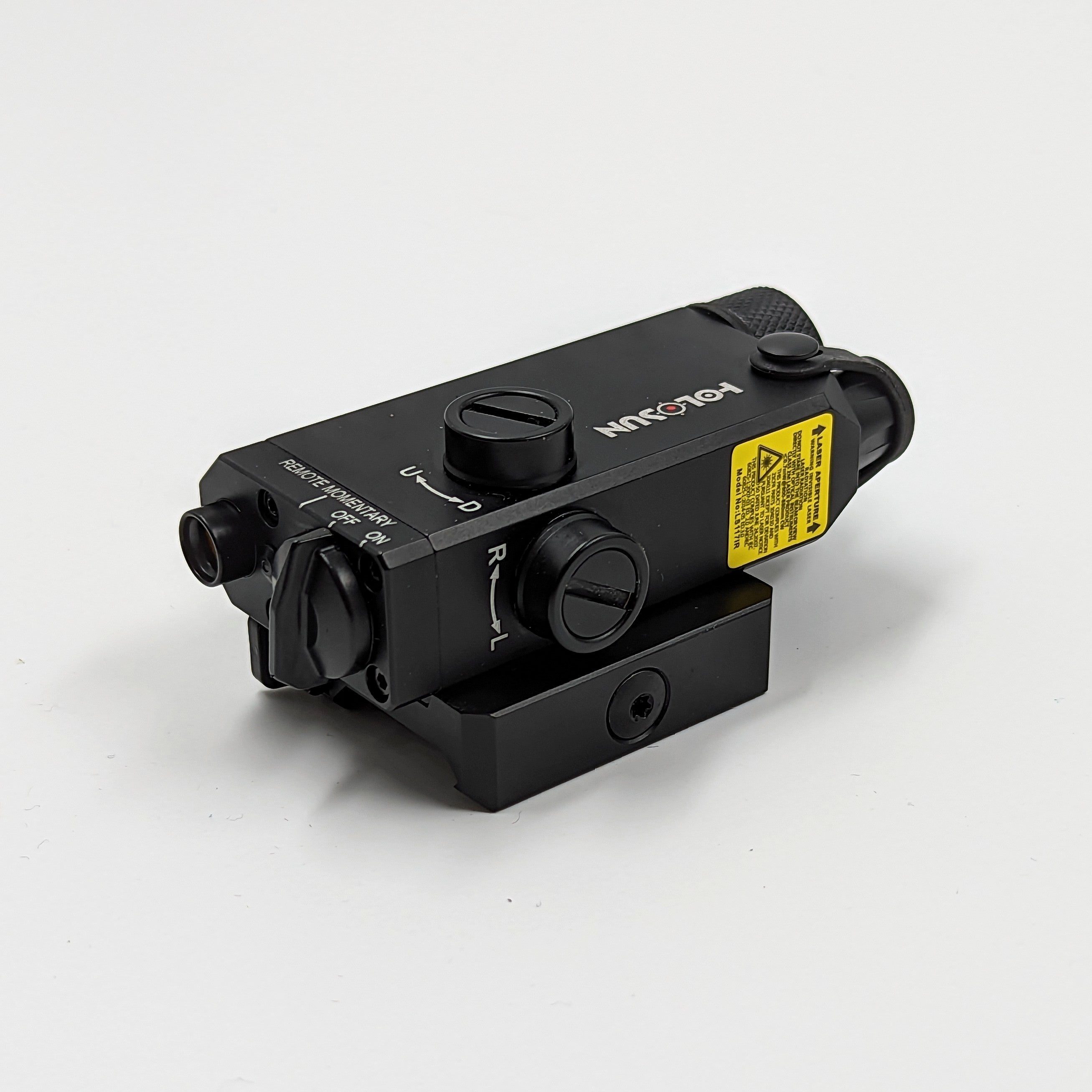

The LS117IR is a 7075 Aluminum bodied class 2M IR laser aiming device. Features include a quick release picatinny rail mount, remote pressure switch, and IP67 water resistance.
FEATURES
- Collimated IR Laser Pointer
- Remote Cable Switch
- Quick Release Mount
- IP67 Waterproof
SPECIFICATIONS
ELECTRONIC DATA
- Power Source Battery
- Battery Type AA
- Battery Life (Hours) Up to modes
- Brightness Setting Up to modes
PHYSICAL DATA
- Window Size N/A
- Dimension (in) 3×1.5×1.3
- Weight (oz) 4.9
MECHANICAL DATA
- Housing Material 7075 T6 Aluminum
- Surface Finish MAO
- Adjustment per Click 0.5 MOA
- W&E Travel Range ±50 MOA
ENVIRONMENT DATA
- Storage Temperature -40℃~65℃
- Working Temperature -40℃~51℃
- Submersion IP67
- Vibration 1000G
LASER DATA
- Laser & Illuminator Type Single Laser
- White LED Output N/A
- IR Illuminator Class N/A
- IR Illuminator Output N/A
- IR Pointer Class N/A
- IR Pointer Output 0.1mw(low)/0.7mw(high)
- Visible Laser Class IIIA
- Visible Laser Output 1mw(low)/5mw(high)
Origin:
Manufactured in China
