Modlite Systems PLHV2-18350/18650 Rifle Mounted Light
Choose options
PLHV2-18350-Standard

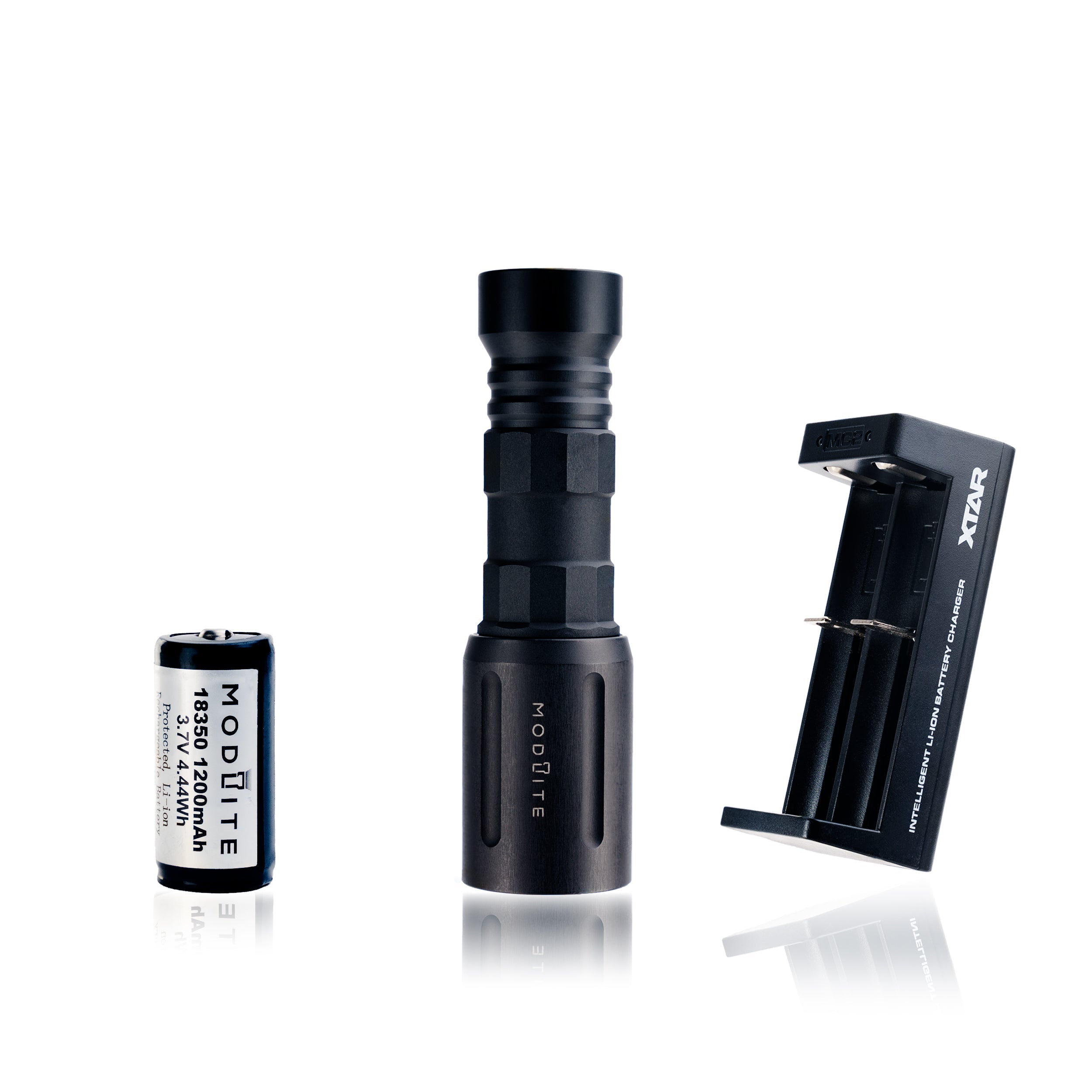

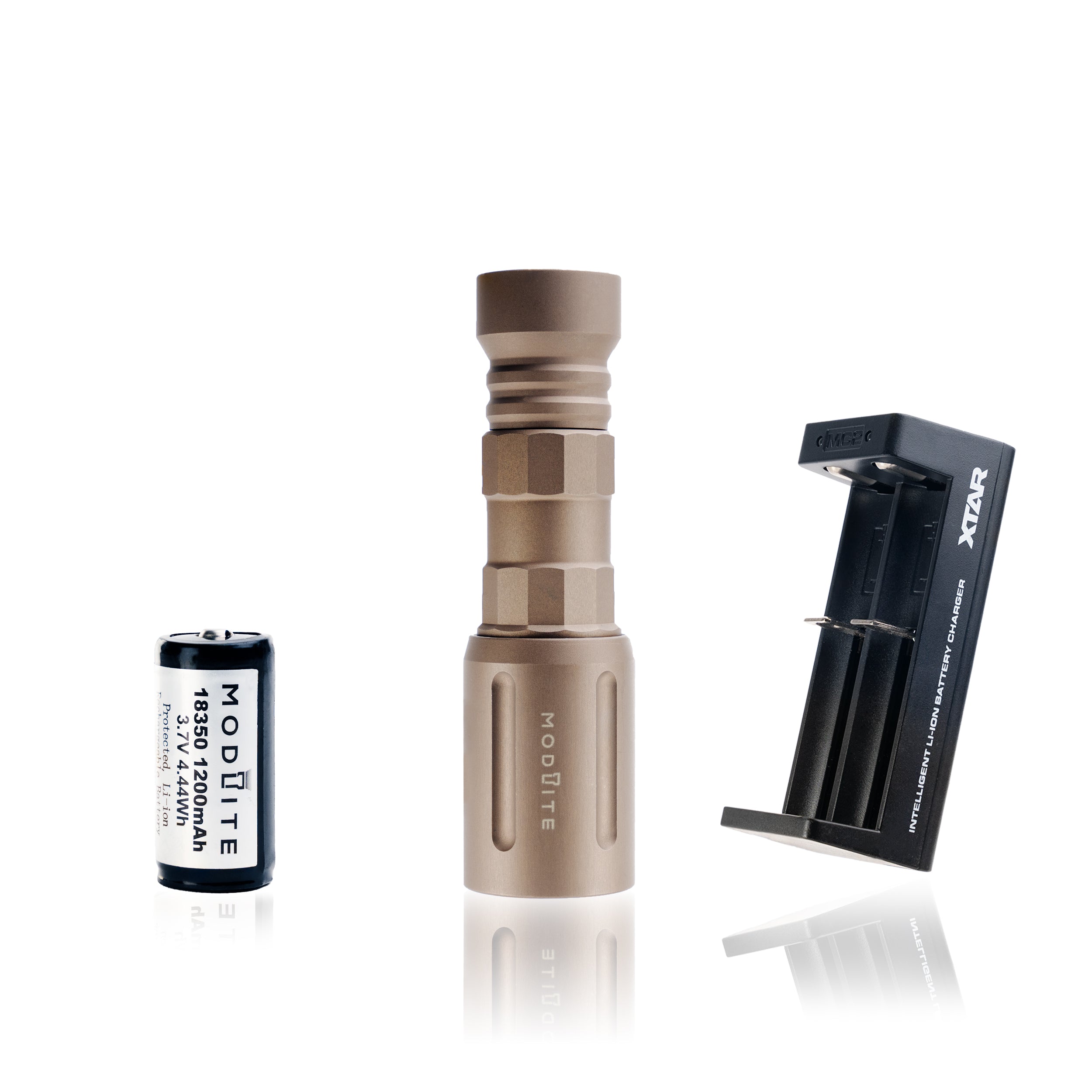

This light package contains a PLHv2-light head, 18350 body and tail cap. It also includes a single Modlite 1200mAh 18350 battery and a XTAR MC2 charger. While lumen output with this light is similar to the Surefire® M600DF head the throw is much better suited to a rifle mounted application at more than three times the amount throw than the M600DF. This light is a large step forward from the PLHv1 light. Lumen output is about the same but throw is greatly improved. It is the best balance of flood and throw available.
PLHV2-18350-FUEL Modlite 18350 Rifle Light Package

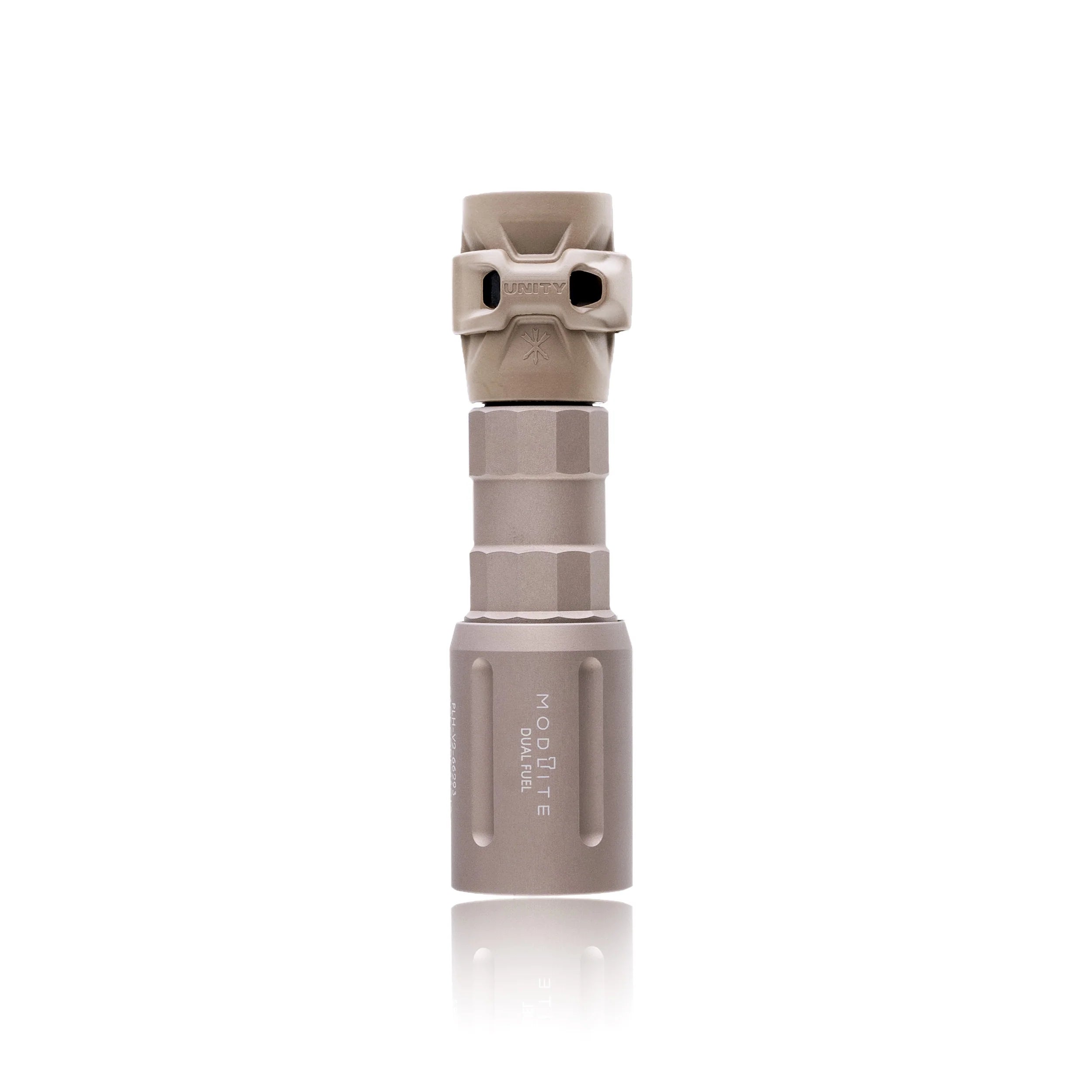

This light package includes all of the above but replaces the standard clicky tailcap with a Unity Tactical Gascap.
Our lights require a mount that is sold separately, this allows the user to select which mount best fits their needs. You can find these mounts by clicking here.
PLHV2-18350 Features
- Cool White 5700K emitter tint
- Made and assembled in the USA
- Drivers are fully potted and tested to withstand select fire SCAR 17 recoil.
- Lifetime guarantee
- Approximately 1350 out the front lumens and candela is approximately 54,000. It is an excellent overall light head good for indoor or outdoor use.
- 6061 Series Alum bezel with Mil-Spec Hard Anodizing.
- Ultra clear BOROFLOAT® lens allows 98-99% light transmittance.
Lithium CR123 cells are not supported and if used will cause the cells to heat up and possibly explode or catch fire. We recommend our Modlite Protected Cells.
PLHV2-18350 Dimensions
| Weight: | Weight (W/O Battery): | Width/Diameter: | Length (no tailcap): |
| 4.2 oz | 3.3 oz | 1" (no head) | 3 1/2 " |
| Length + Clicky Tailcap: |
Length + Surefire UE + End of Modbutton Lite Plug: |
Length + Surefire DS00 + End of Modbutton Lite Plug: |
| 4 1/8 " | 5 1/4 " | 6 " |
PLHV2-18650-Standard

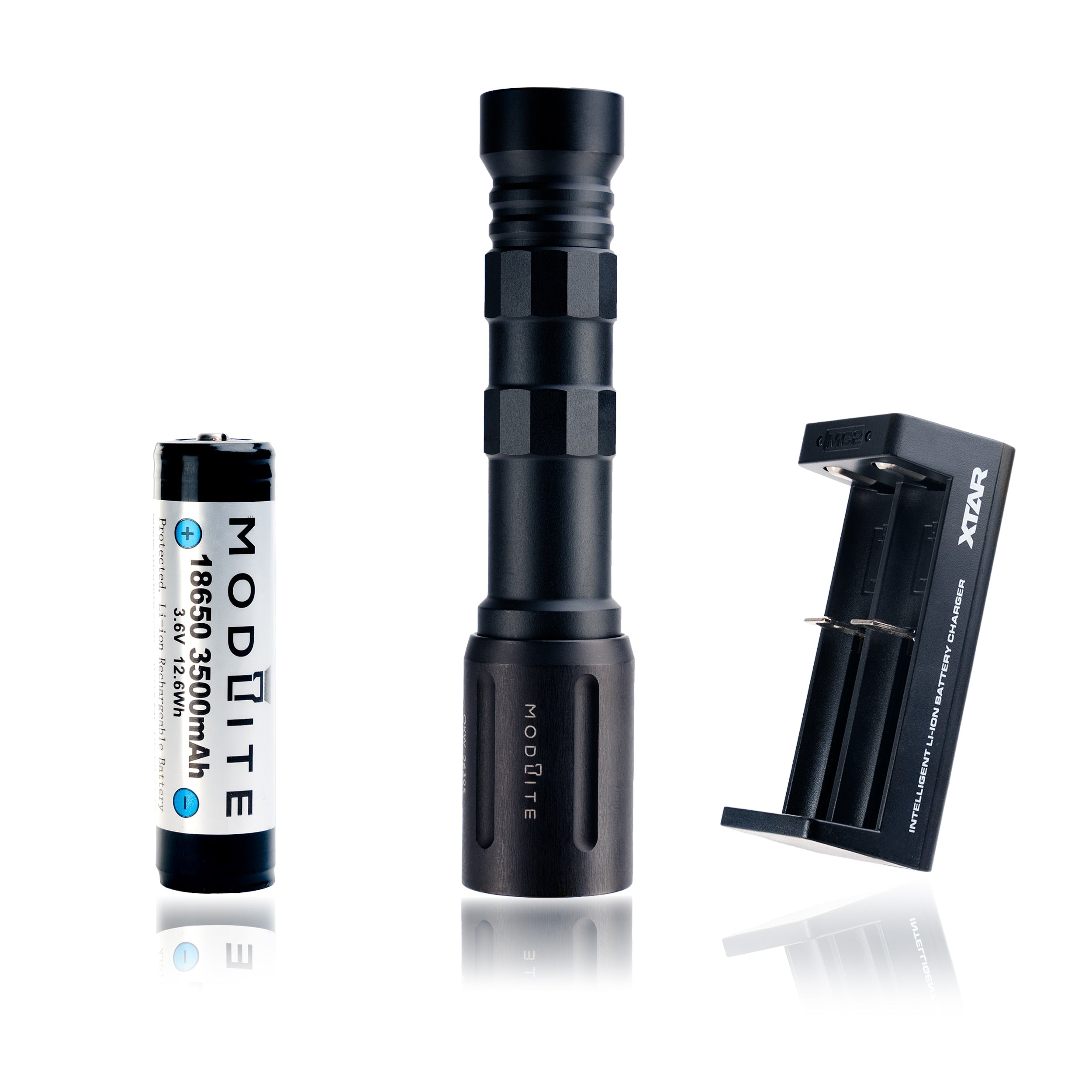

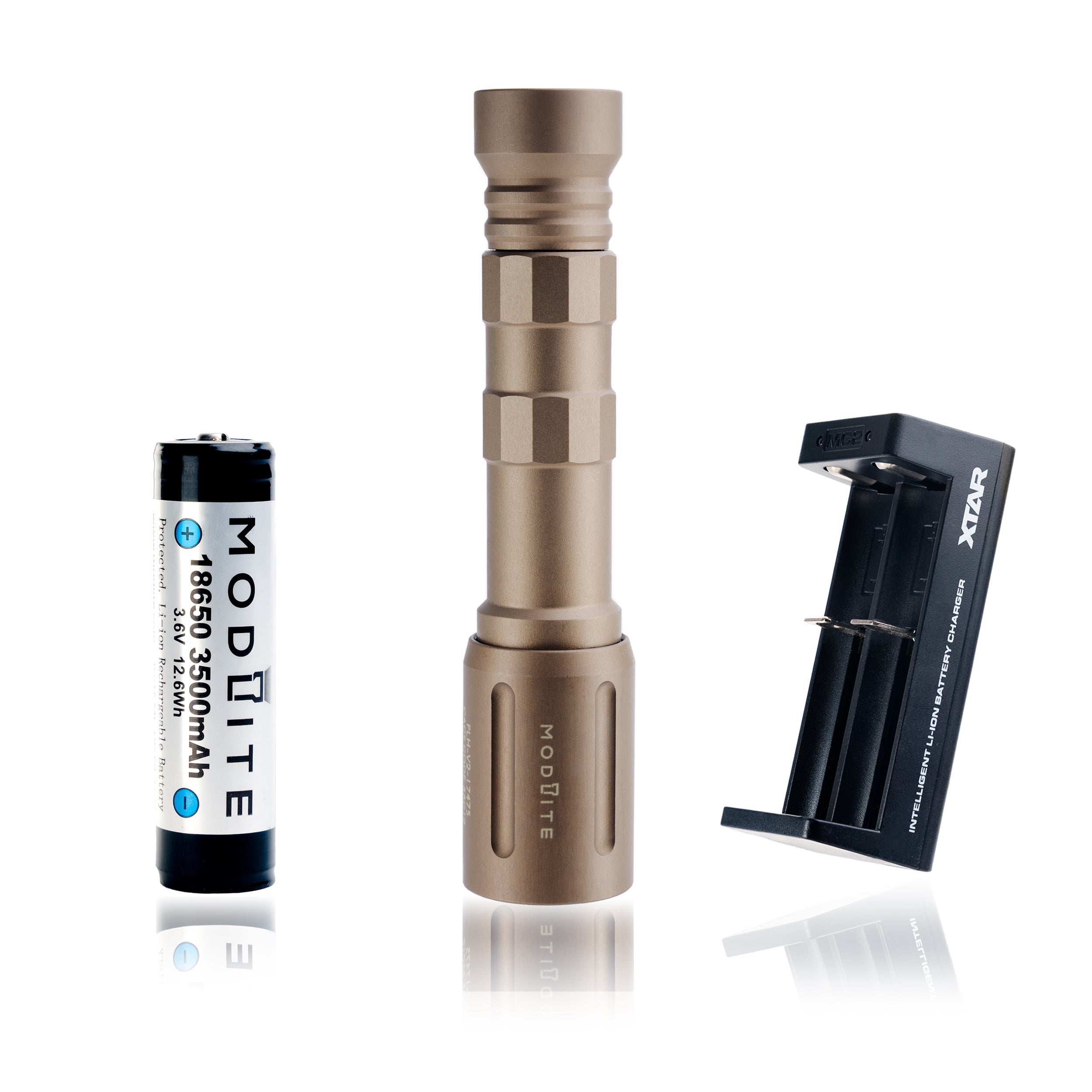

This light package contains a PLHv2-light head, 18650 body and tail cap. It also includes a single Modlite 3500mAh 18650 battery and a XTAR MC2 charger. While lumen output with this light is similar to the Surefire® M600DF head the throw is much better suited to a rifle mounted application at more than three times the amount throw than the M600DF. This light is a large step forward from the PLHv1 light. Lumen output is about the same but throw is greatly improved. It is the best balance of flood and throw available.
PLHV2-18650-FUEL Modlite 18650 Rifle Light Package

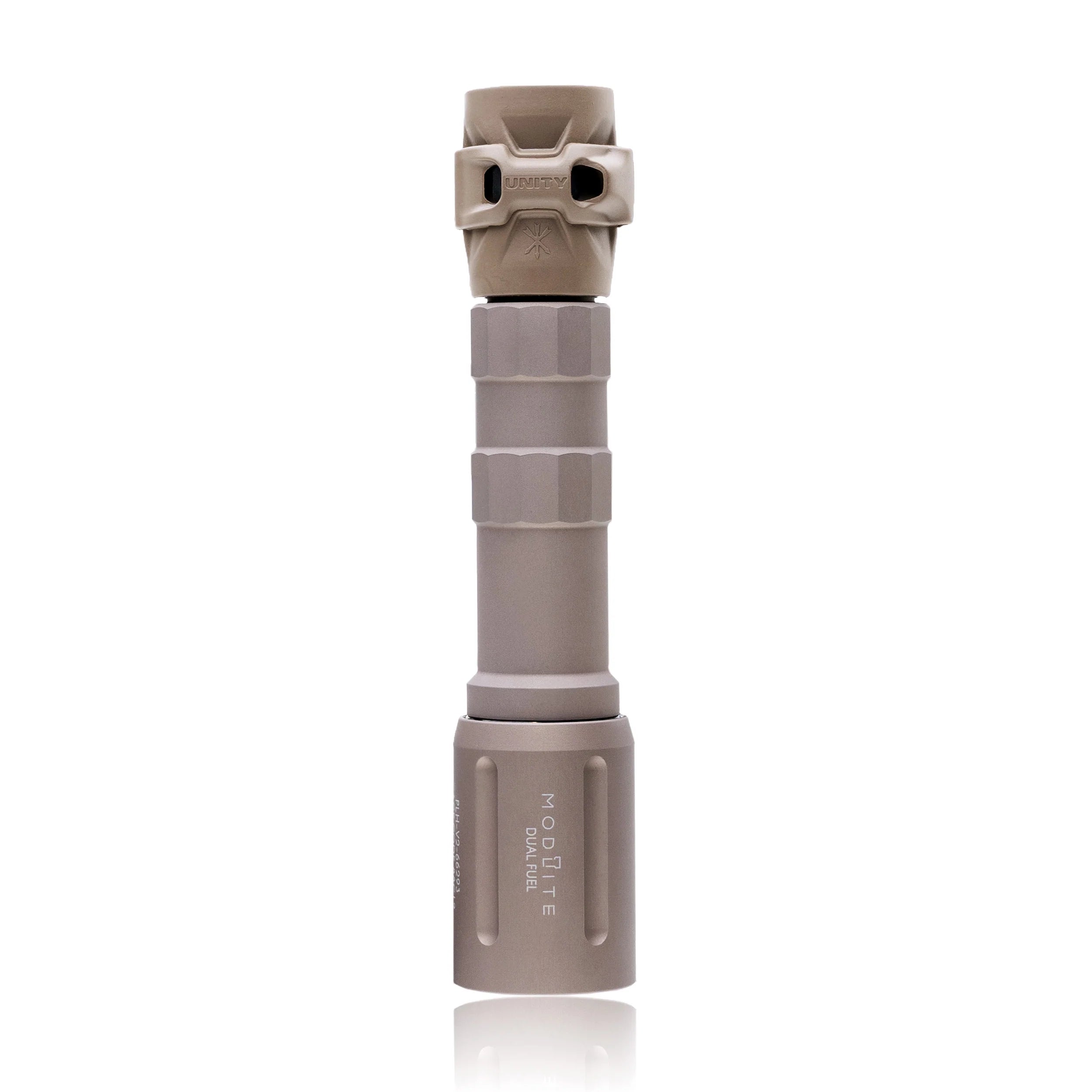

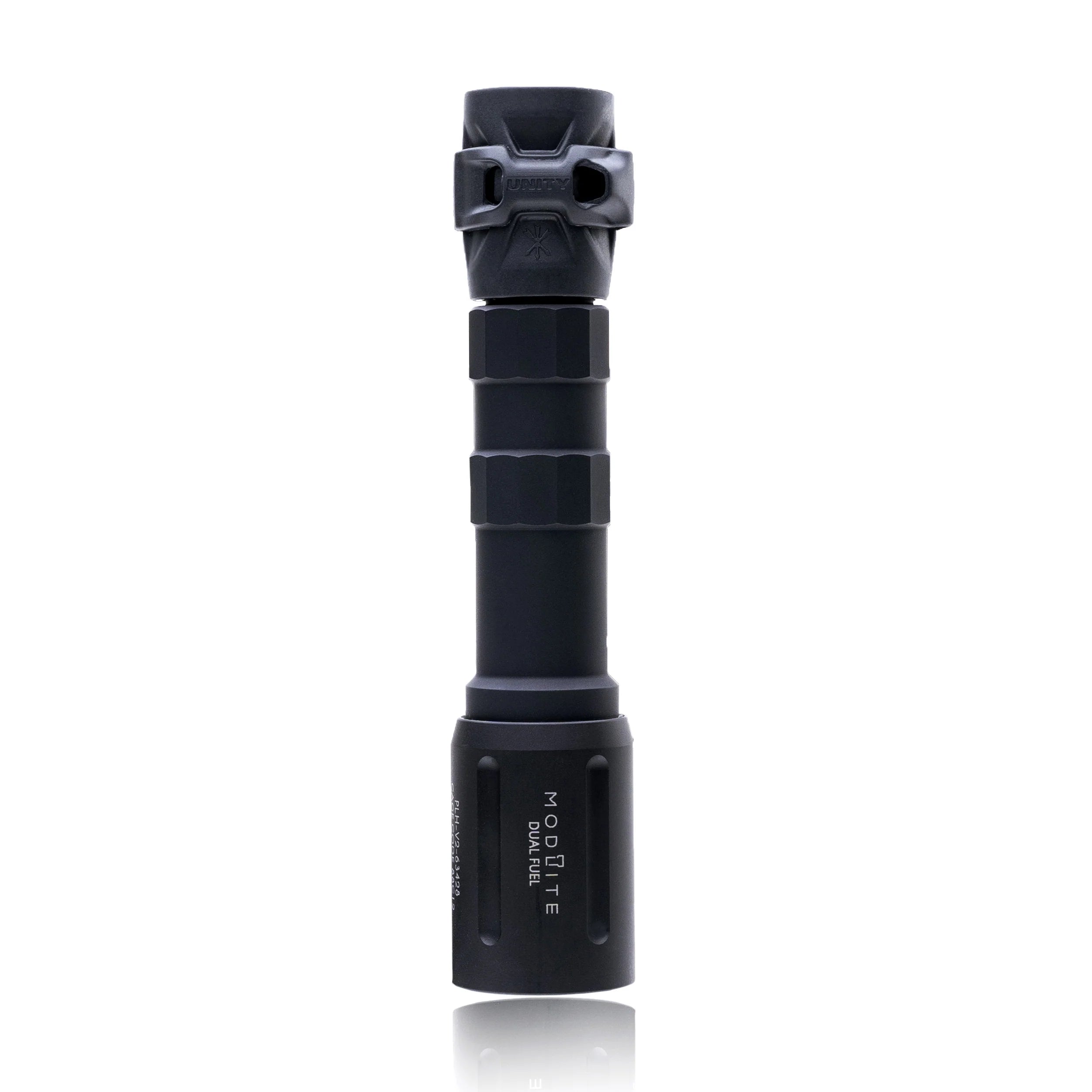

This light package includes all of the above but replaces the standard clicky tailcap with a Unity Tactical Gascap.
Our lights require a mount that is sold separately, this allows the user to select which mount best fits their needs. You can find these mounts by clicking here.
PLHV2-18650 Features
- Dual Fuel 18650 or x2 CR123
- Cool White 5700K emitter tint
- Made and assembled in the USA
- Drivers are fully potted and tested to withstand select fire SCAR 17 recoil.
- Lifetime guarantee
- Approximately 1350 out the front lumens and candela is approximately 54,000. It is an excellent overall light head good for indoor or outdoor use.
- 6061 Series Alum bezel with Mil-Spec Hard Anodizing.
- Ultra clear BOROFLOAT® lens allows 98-99% light transmittance.
Dual Fuel Marked Heads: Can be powered by a 18350, 18650 or x2 CR123
PLHV2-18650 Dimensions
| Weight: | Weight (W/O Battery): | Width/Diameter: | Length (no tailcap): |
| 5.3 oz | 3.6 oz | 1" (no head) | 4 3/4 " |
| Length + Clicky Tailcap: |
Length + Surefire UE + End of Modbutton Lite Plug: |
Length + Surefire DS00 + End of Modbutton Lite Plug: |
| 5 3/8 " | 6 1/2 " | 7 " |
Origin:
Manufactured in USA
