IRay

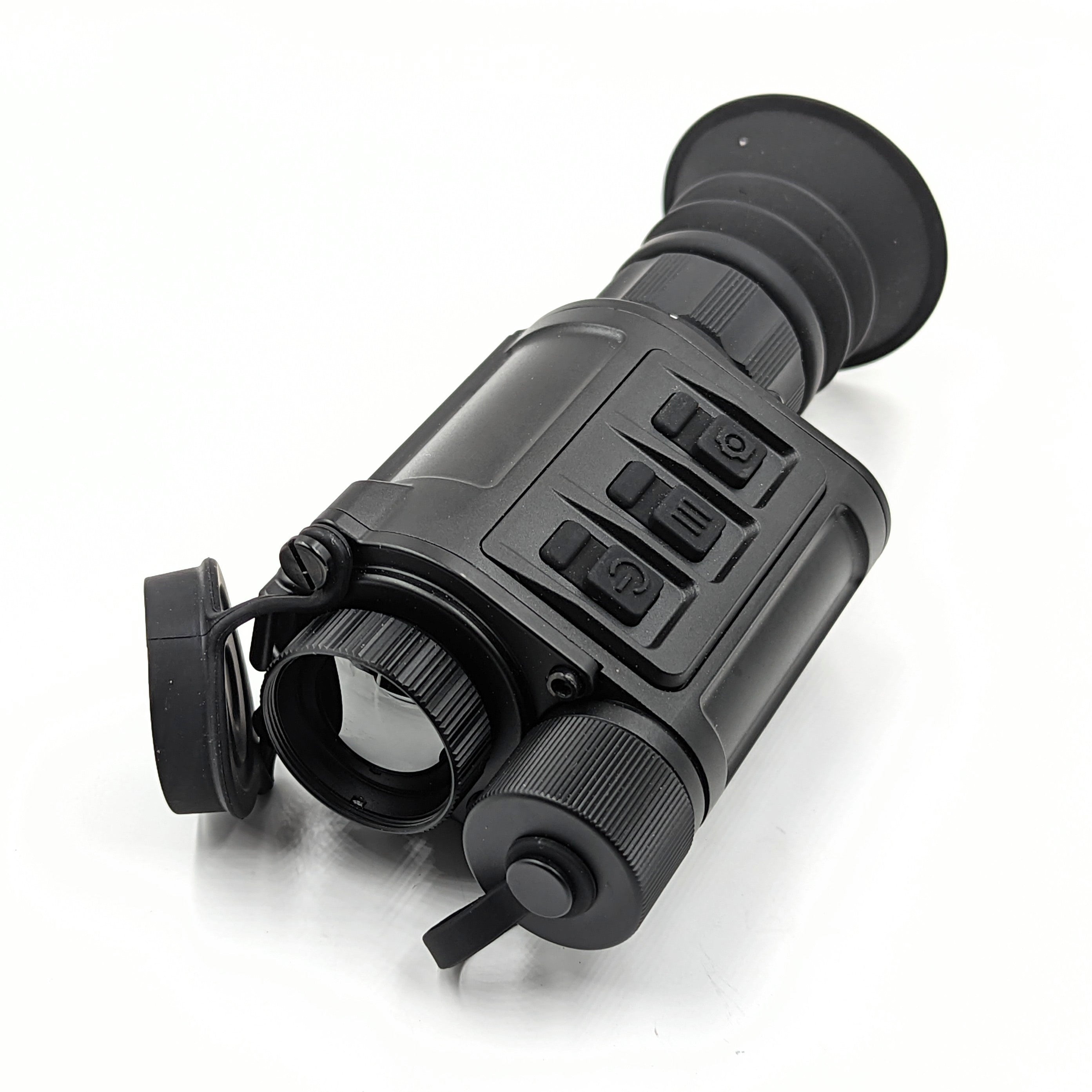

IRay/Infiray PFalcon PFN 640/384+ Thermal Imaging Monocular
Choose options
The IRay PFalcons are thermal monocular devices that are adapted for use as a head mounted thermal, clip on in front of a scope, or a dedicated weapon sight with reticle.
Germanium Force on Force shields available HERE
The PFN 640+/384+ are the international versions of the RH25/RL25 (US Version), and thus has the reticle disabled by default in order to comply with laws in some countries. In order to enable the reticle, press and hold all 3 control buttons for 3 seconds while in handheld mode.
| Detector | 640×512 / 384×288 |
| Lens | f25mm |
| Human recognition | 600m |
| Vehicle recognition | 1070m |
| NETD | ≤40mK |
| Frame rate | 50Hz |
| FOV | 17.2°x13.7° |
| Ocular Lens | 14 |
| Laser pointer | No |
| Diopter compensation | -4 to +4 dpt |
| Optical zoom | 1x |
| Electonic zoom | 1 – 4x |
| Battery life | ≥ 3h |
| Battery type | 1x 18650 (Rechargeable battery) |
| Display | 1024×768 AMOLED |
| Storage | 64 GB |
| Recoil proof | Yes |
| Mounting options | Handheld, helmet, clip-on, direct aim |
| Weight | 355 g |
| Dimentsions | 105 x 65 x 48 mm |
| IP raiting | IP67 |
| Operating temperature | -40°C to + 55°C |
| Storge temperature | -55°C to + 70°C |
Included accessories
- Soft carry-on bag
- Eye-cup (2 – one for weapon mount, other for helmet mount & as clip-on)
- Helmet mount (minirail)
- Charging and data transfer cables
- USB Power adapter (USA)
- Battery charger
- Battery cap for 18650 & 18700
- Weapon mount (Picatinny)
- Connector between PFalcon and helmet mount
- Microfiber cloth
- Tool kit
- Screws (blunt tip for helmet mount / triangle tip for weapon mount)
As authorized sellers of iRay products, all products carry a factory warranty of 2 years on external components and 1 year on internal components. We deal direct to factory to offer you the best prices possible. If there is another iRay product that is not listed, do not hesitate to send us an inquiry.
Note: We are direct authorized dealers of Infiray Outdoor and Iray Technology Co. We do not deal with Infiray Canada which is not related to the actual manufacturer or distributor of the product.
Manual Available HERE
User Guide with Firmware Update HERE
This product is export controlled, but we do export! Please contact us prior to ordering for more information on the export process.
We are no longer able to export Iray products to the USA.
Origin:
Manufactured in China
