Corsair Bridge:
A full featured, drop-in upgrade for select existing panoramic systems, the Corsair is the result of specific end user requests, paired with our own dissatisfaction with weight distribution, ergonomics and integration with magnified and other optics.
It solves these issues while providing simple, intuitive designs to allow your gear to work with you, not against you. It's also made with the mission requirements of special operations in mind. Easy, thumb activated lockouts on the force-to-overcome hinges mean that if you absolutely need the goggle to stay either up or down during activities like military free fall, on board small boats or in other highly dynamic missions it stay exactly where you put it.
When articulated it remains tight to the helmet, while clearing space around the eyebox, without adding width or significant height to your overall profile. This reduces neck strain, as well as reduces snag hazards.
100% of the design work, including the electronics has been done in Canada, with specifications for zero Chinese content in the electronics. Additionally, production and manufacturing is to be done in Canada as well.
- Angled articulation clears helmet brim and provides a wide clearance of eye box when stowed allowing comfortable use with magnified and thermal optics.
- Force-to-overcome (FTO) mechanism provides stability when pods are stowed.
- Intuitive lockout mechanism overrides the FTO for dynamic operations where additional stability is required such as free fall operations.
- Reliable independent auto pod shut-off when low stowed. (User enabled toggle on/off)
- Auto shut-off when mount is flipped up. (User enabled toggle on/off)
- Auto shut-off when idle for 2 minutes to prevent accidental damage from light sources. (User enabled toggle on/off)
- Optional on-board power for redundancy when jumping or on long duration operations.
- Intelligent circuit board seamlessly switches between onboard and offboard power supplies, prioritizing using offboard power when available. No on-board power or battery is required to use offboard power.
- Shrouded indicator provides power supply status information.
- Compatible with a variety of power sources including remote power banks, CR123 and AA.
Designed in
for professionals

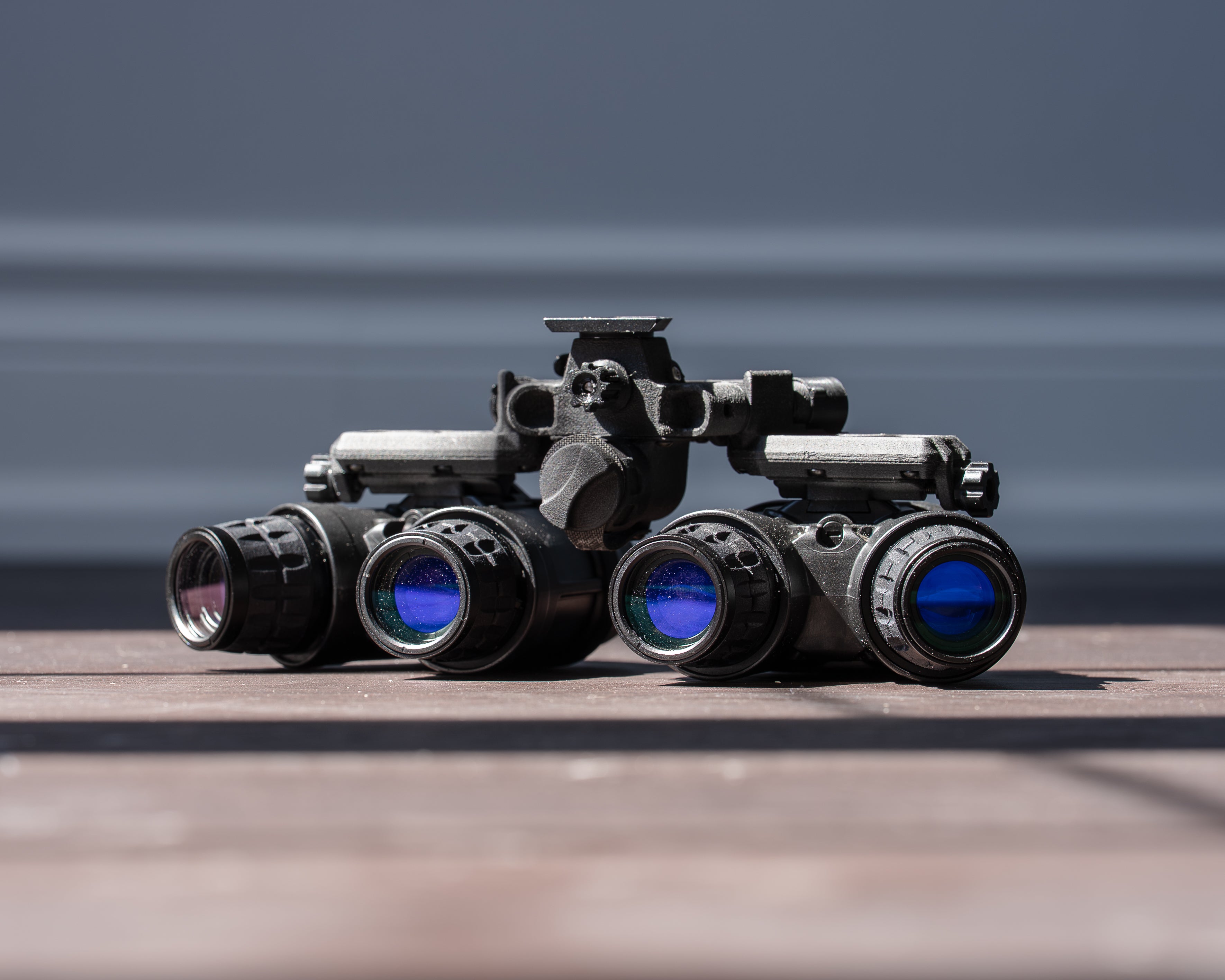

The Corsair Bridge

Contact Us
The Corsair Panoramic Bridge is currently in development. If you represent an organization that is interested in demo, procurement or in conducting T&E please reach out below.
Please note that due to overwhelming interest, requests from individuals cannot be supported at this time.
