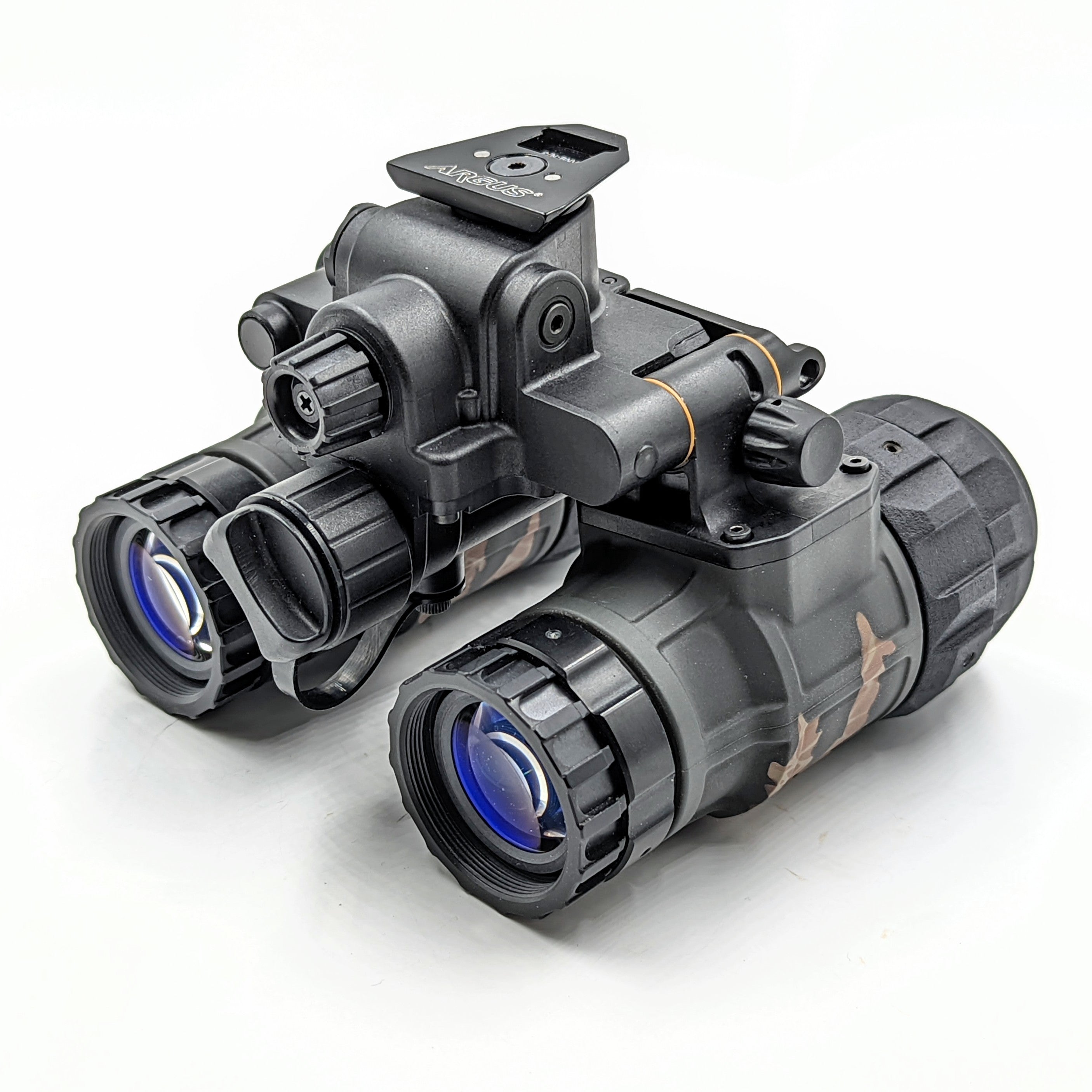

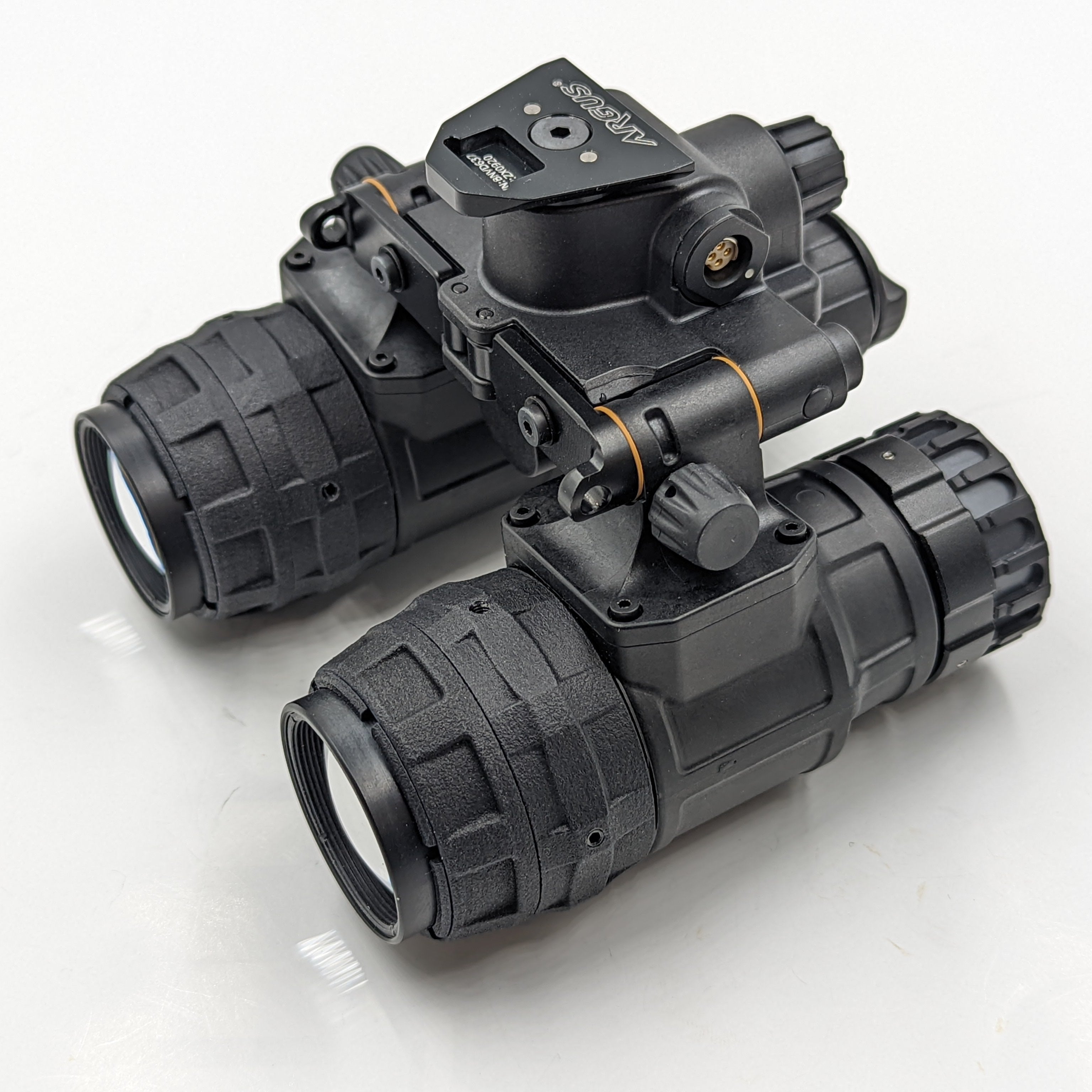

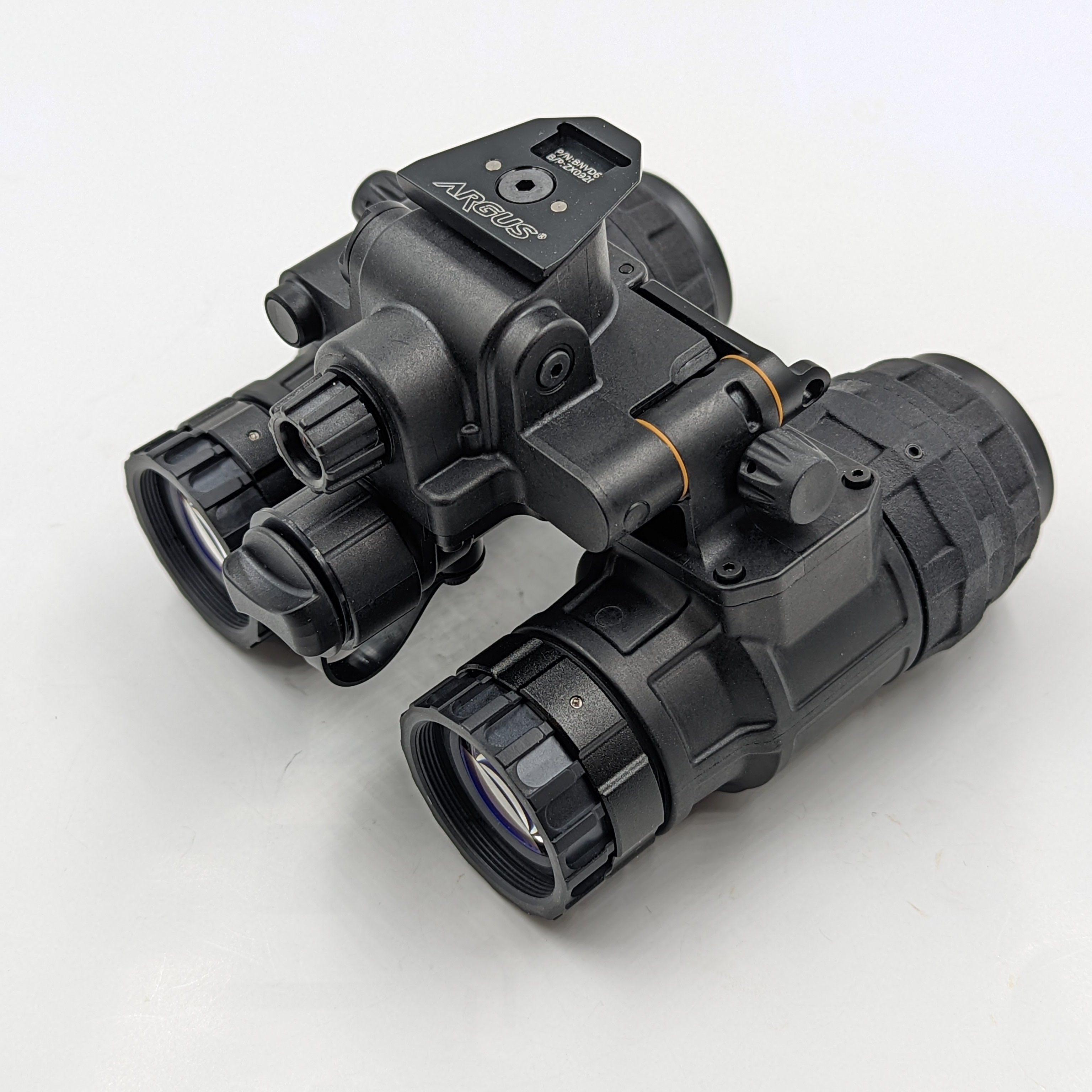

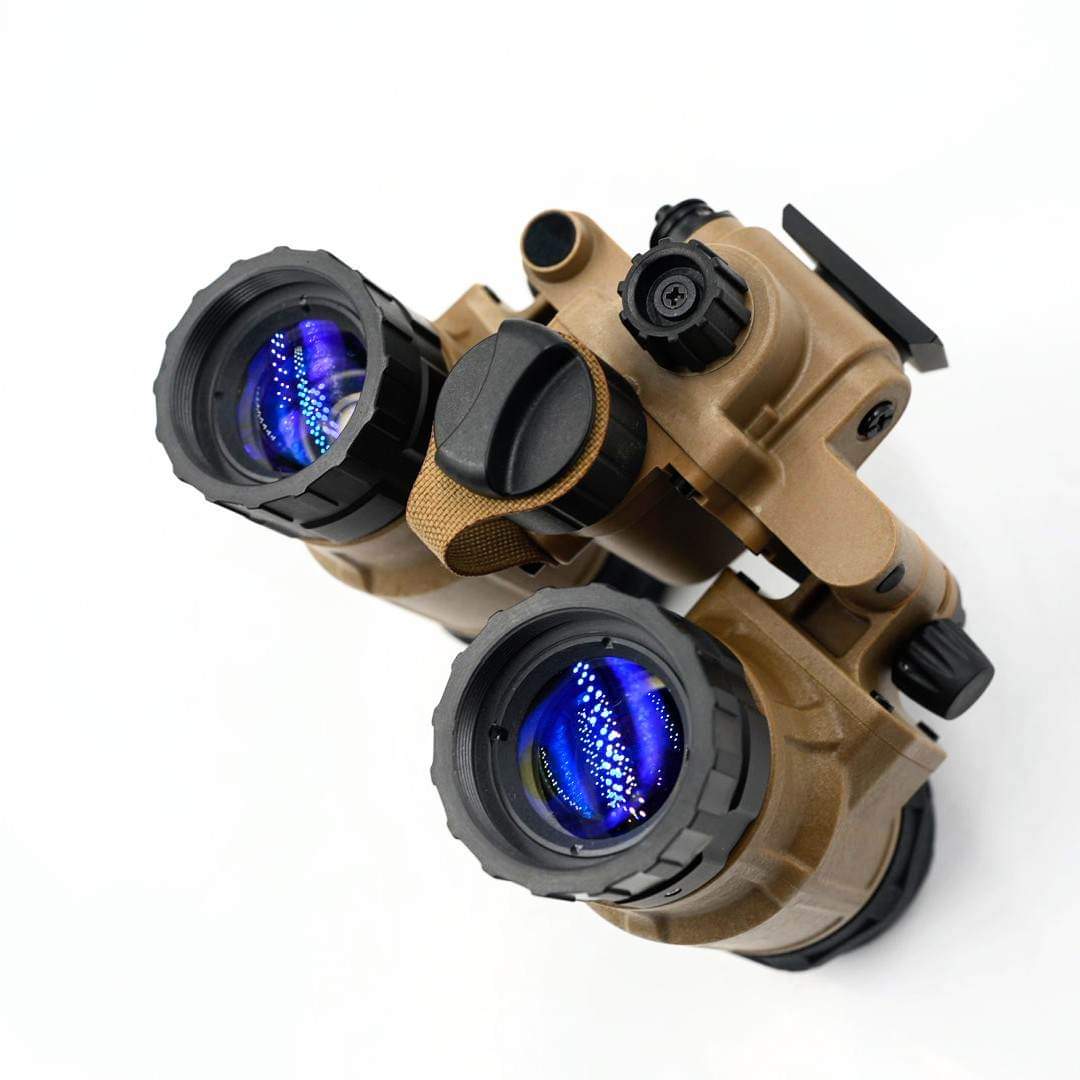

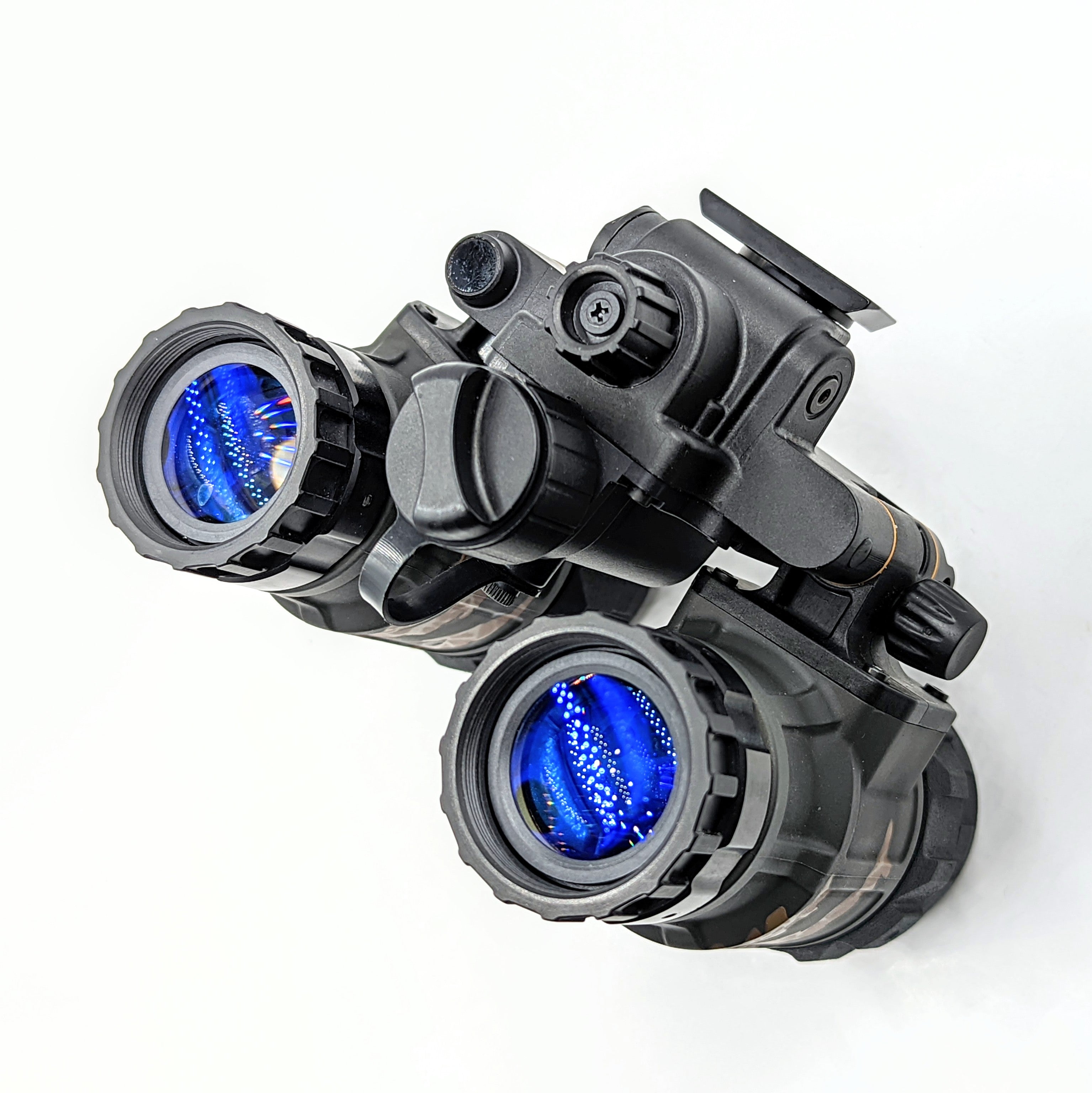

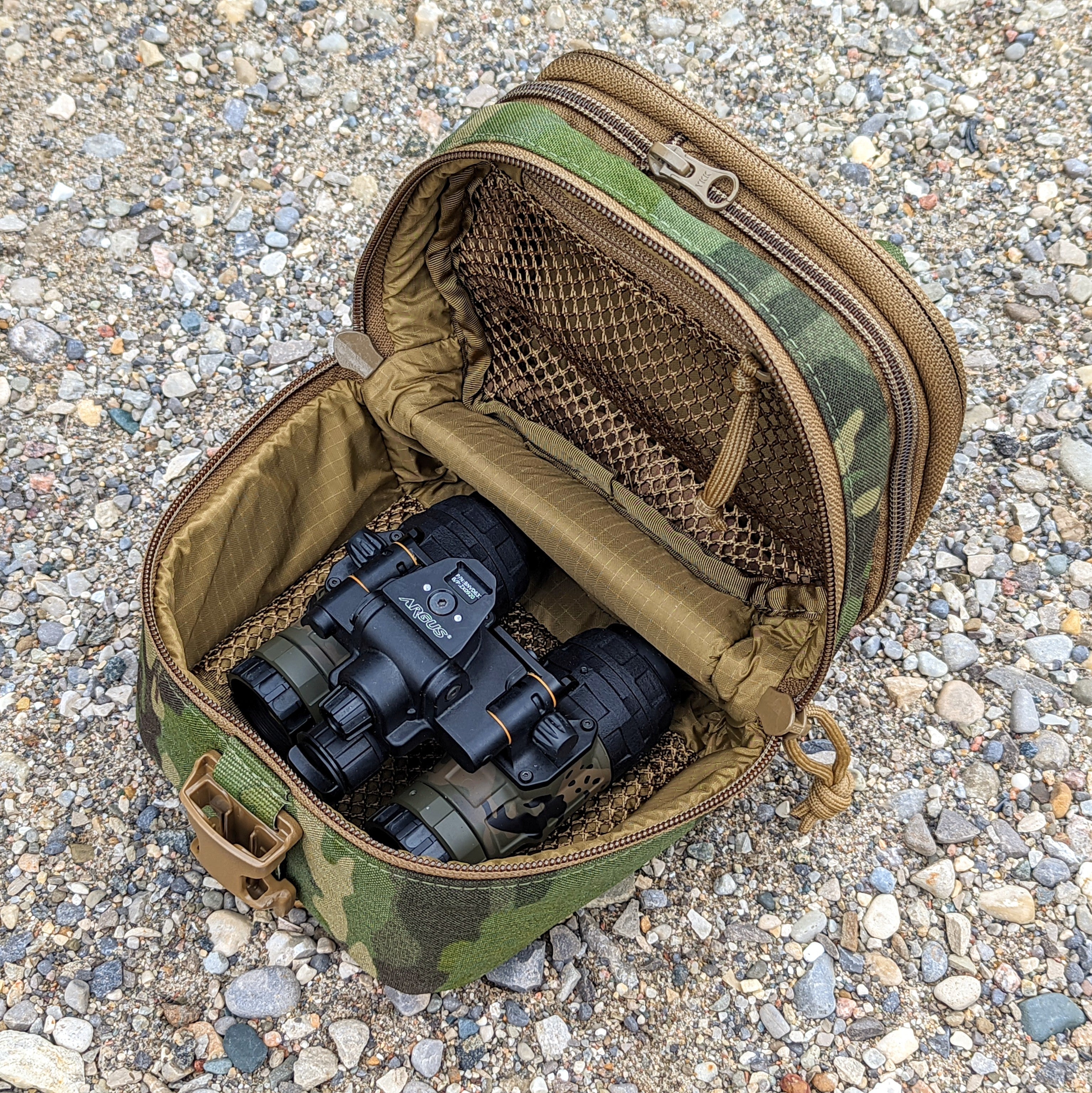

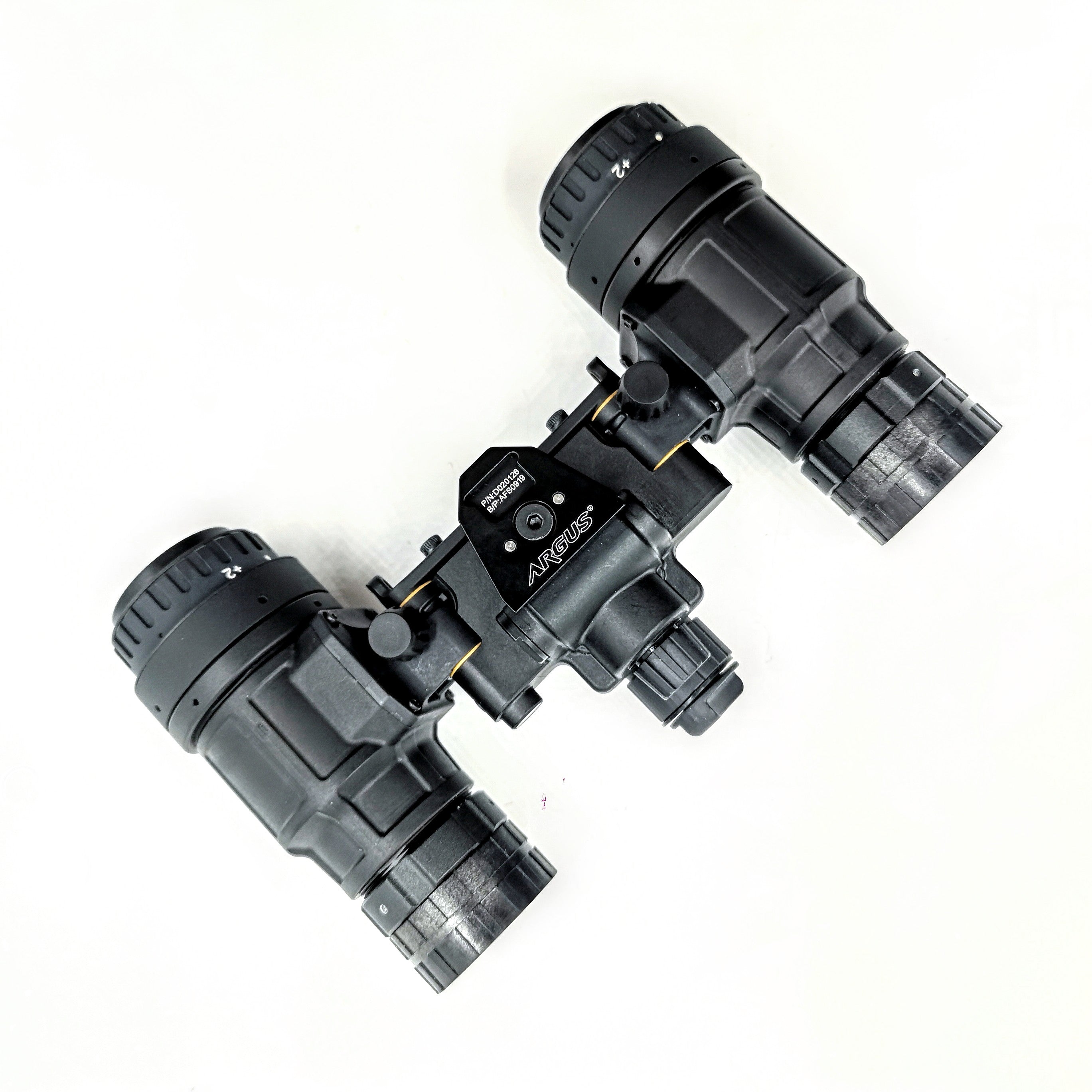

BNVD-1431 Mk.II Canadian Custom
Product Info
The BNVD-1431 Mk.II night vision binocular is an affordable articulating night vision solution featuring articulating pods with adjustable joint tension and interpupillary stops, a central power knob that doubles variable gain control, and the ability to be powered by a single AA battery or an external battery pack.
Key Features:
- Articulating binocular system
- Waterproof: Submersion at 2 meters for 30 minutes
- Variable gain control with Photonis Image Intensifiers (NNVT are not variable gain compatible)
- Adjustable interpupillary stops
- Powered by single AA Battery
- Cerakote finishes available!
- Quickstart guide available HERE
Improvements Over Mk.1:
- Variable gain control
- Compatible with 10160, 10160 variable gain, and some 11769 tube formats
- On board IR illuminator
- Opfor Night Solutions upgraded screw kits installed from the factory
- Opfor Night solutions weatherproofing service no longer necessary, sealed from the factory
- Aluminum D-collars double as infinity stops and close focus stops to simplify maintenance
- Improved housing material
- Skeletonized pods for weight reduction
- Enhanced interpupillary adjustment distance
User Guide:
Origin:
Housing Components Made in China - "Canadian Custom" denotes our own process for testing and assembly as well as improved hardware differentiated from the standard Argus BNVD.
Lenses Manufactured in USA or TAA Compliant Countries
Image Intensifiers Manufactured in France (Photonis) or China (NNVT)
Assembled in Canada
- Night vision devices are warranted for life against defects in workmanship and assembly unless otherwise specified, however subcomponents will follow manufacturer's warranty.
- Housings follow manufacturer's warranty:
- Our OEM Housings: OP14, BNVD-1431 Mk.II, NVG-ALPHA, APNVG: 5 Years
- AB Night vision RVM-14, RNVG, RPNVG, RNVG-A, MGA: Limited Lifetime
- KB DT-2: 2 Years
- EON PVS-14: 1 Year
- Noctis PVS-14: 1 Year
- Image intensifiers are warranted for 1 year by the manufacturer.
- Lens assemblies are warranted for 3 years.
User error, negligence, and incoming fire are typically not covered under warranties.
Our nightvision devices are custom built to your specifications. Please allow up to one week for assembly, calibration, and testing prior to shipment.
Premium lens systems
Image intensifiers
NNVT and Photonis
Nightvision Built in Canada
Precision through Process
Our devices are assembled in a positive pressure clean room utilizing HEPA certified filters and strict circulation standards to ensure a dust free assembly environment. Our blowers for cleaning optical components use compressed, double filtered 99.999% dry Nitrogen.
Calibration and collimation are performed using our Hoffman Engineering ANV-126A and HVS-126 Night Vision Digital Calibration System. Waterproofing and environmental resistance are vacuum tested followed by a multi phase Argon purge using our digital vacuum and purge test set.
We strive to bring the highest quality standards to our customers. Our night vision devices are built and assembled in our specialized facility in Aurora, Ontario.
