OVERVIEW

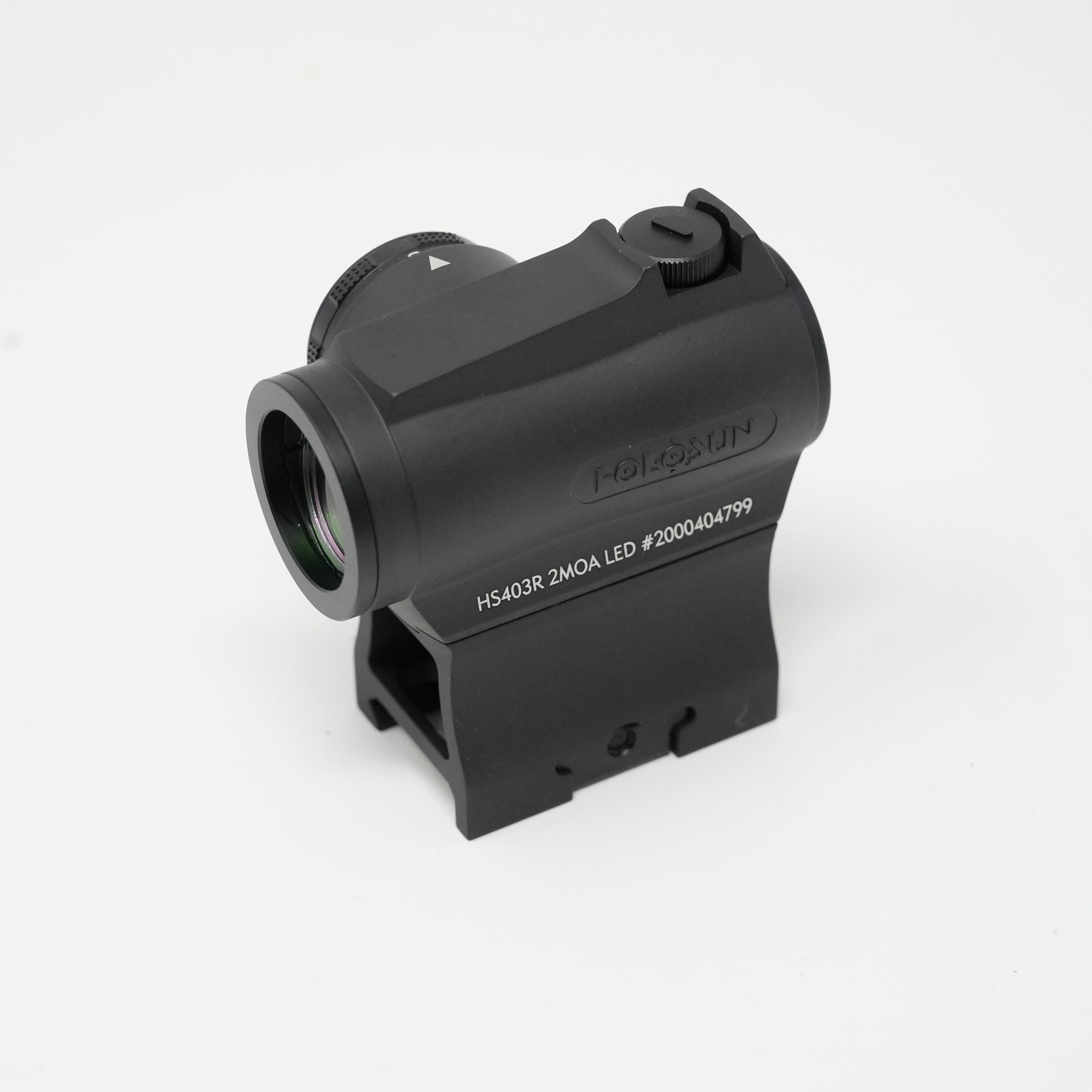

The HS403R is a 20mm micro optical sight designed for rifle and carbine applications. Features include our new Rotary Switch, 12 brightness settings, Holosun’s Super LED with up to 50k hour battery life, and a 2 MOA Dot. Includes lower 1/3 co-witness and low profile mounts.
TECHNOLOGY
FEATURES

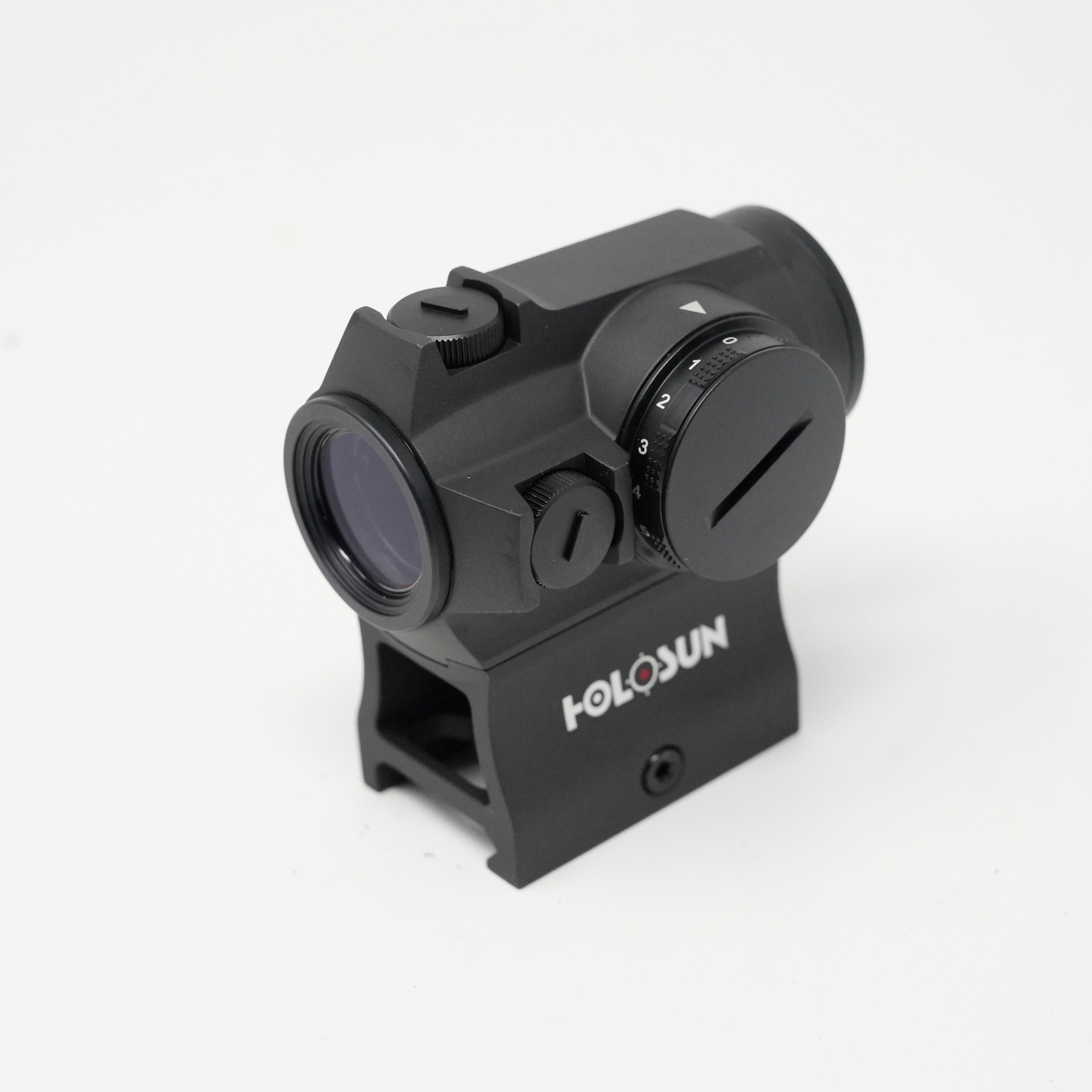

- Rotary control for faster operation and visual brightness indicator
- Up to 100,000 Hours Battery Life (Setting 6)
- 2 MOA Dot Reticle
- 12 Brightness Setting: 10 DL & 2 NV Compatible
- Parallax-free with unlimited eye relief
MANUAL
SPECIFICATIONS
OPTICAL DATA
- Reticle 2 MOA Dot
- Light Wavelength 650nm
- Reticle Color Red
- Parallax Free Yes
- Unlimited Eye Relief Yes
- Magnification 1x
- Multi-Coatings Yes
ELECTRONIC DATA
- Power Source Battery
- Battery Type CR2032
- Battery Life (Hours) 100 000
- Brightness Setting 10 DL&2 NV
PHYSICAL DATA
- Window Size 20mm Diameter
- Dimension (in) 2.75×1.43×1.62
- Weight (oz) 3.53
MECHANICAL DATA
- Housing Material 6061 T6 Aluminum
- Surface Finish MAO
- Adjustment per Click 0.5 MOA
- W&E Travel Range ±50 MOA
ENVIRONMENT DATA
- Storage Temperature -40℃~70℃
- Working Temperature -30℃~60℃
- Submersion IP67
- Vibration 1000G
Unfortunately this item is available to ship in Canada only as it is a Holosun Canada item.
Origin:
Manufactured in China
