AB Nightvision
AB Nightvision RVM-14 C Mount Build Kit
Choose options

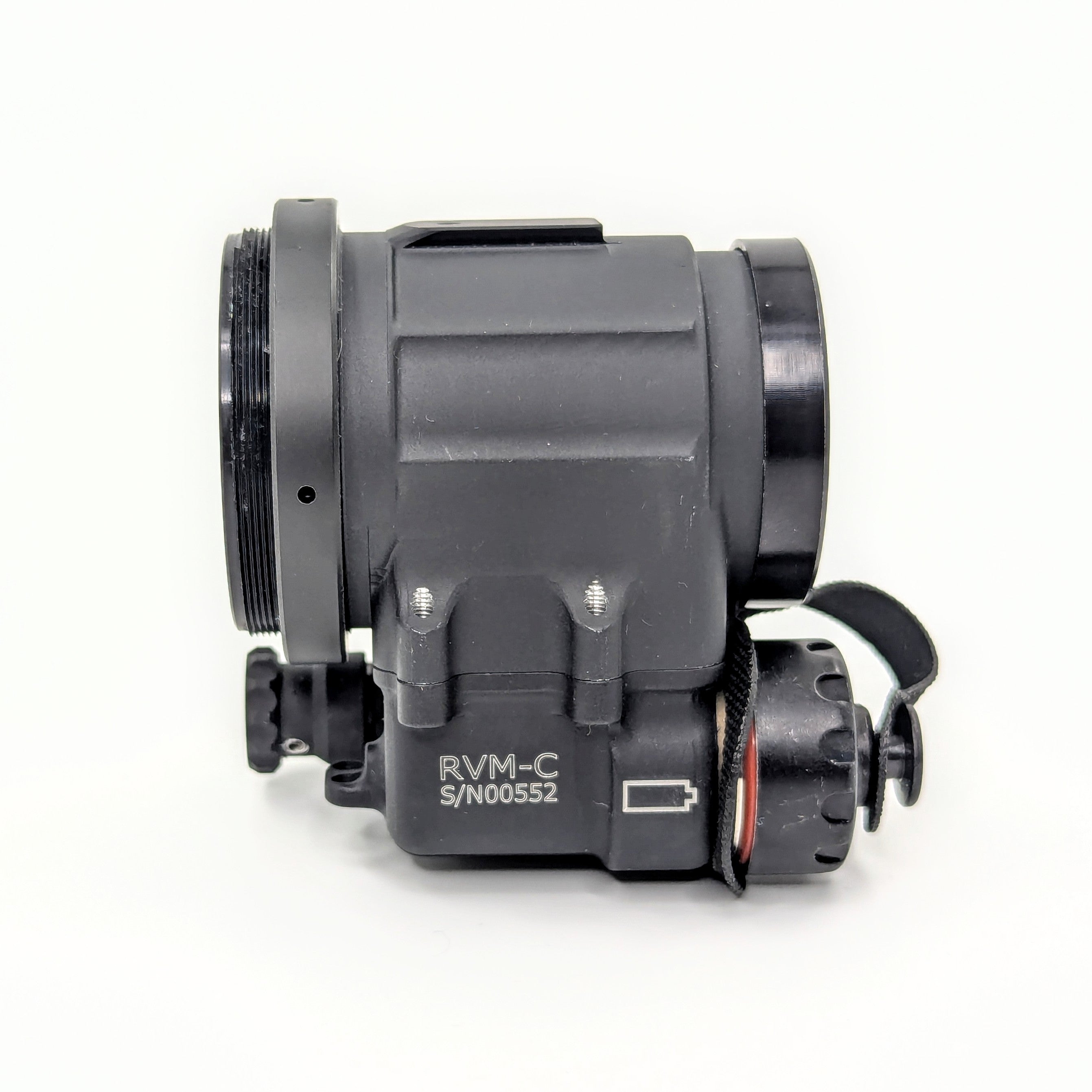

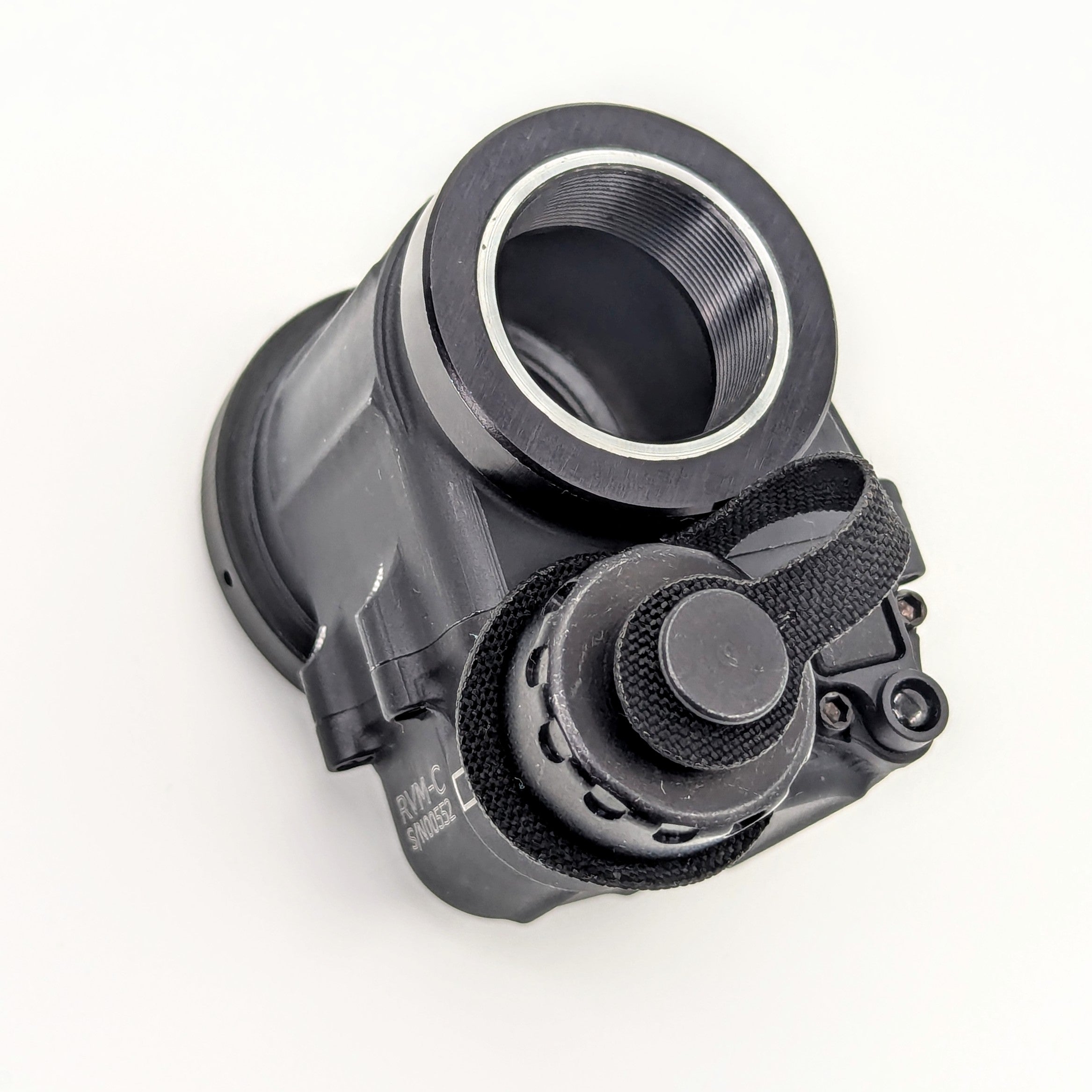

The RVM-14 monocular housing is billet machined from 7075 aircraft grade aluminum and designed to handle challenging real-world environments. The housing design accepts Milspec PVS-14 eyepieces and C mount objective lenses.
The monocular features a side mounting area to accept PVS-14 accessories and mounts with a standard ¼-20 thread. Two monos can also be attached to a bridge mount (RVM-14 Bridge) in a binocular configuration with the small dovetail incorporated into the top of the housing, or the dovetail can be used with the RVM-14 Arm for single mono use. Both the Arm and Bridge are articulating to lay back against the helmet when in the stowed position.
Key Features:
- Power Source: (1) CR123 Size Battery
- Focus Range: 9.8” to Infinity (and beyond)
- Operation Time: Approximately 75 Hours at Room Temperature
- Dimensions: 2.0” X 2.6” X 4.2”
- IR Illuminator: Built In
- Water Resistance: Submersible To 66 FT
- IR LED & LOW BATTERY INDICATORS: YES
- INTENSIFIER TUBES: COMPATIBLE WITH MX-11769 STYLE
- OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND C MOUNT OBJECTIVE
- WARRANTY: 5 YEARS ON HOUSING PARTS AND SERVICE PER POLICY
Kit will include all of the parts required to build
- RVM-14 Housing
- Infinity collar/close focus stop with set screws
- Eyepiece locking collar
- Lenses (optional)
- Low profile astronomy battery cap
Assembly tools, lenses and other components available, Click Here
Origin:
- Manufactured in USA
