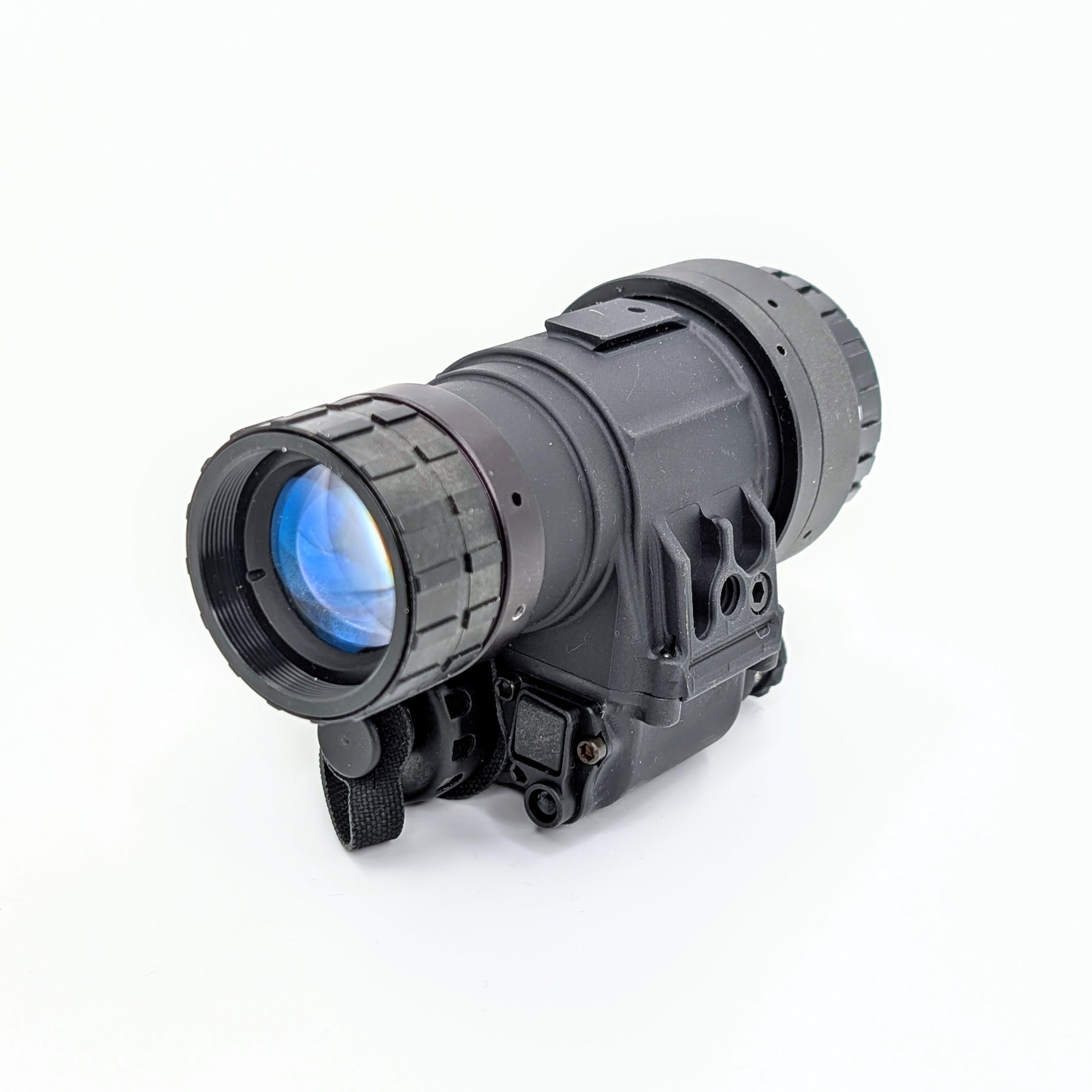

AB Nightvision RVM-14 Monocular
Product Info
The RVM-14 monocular housing is billet machined from 7075 aircraft grade aluminum and designed to handle challenging real-world environments. The housing design accepts standard mil-spec PVS-14 lenses, or lightweight RPO lenses.
The monocular features a side mounting area to accept PVS-14 accessories and mounts with a standard ¼-20 thread. Two monos can also be attached to a bridge mount (RVM-14 Bridge) in a binocular configuration with the small dovetail incorporated into the top of the housing, or the dovetail can be used with the RVM-14 Arm for single mono use. Both the Arm and Bridge are articulating to lay back against the helmet when in the stowed position.
The monocular design features a rotary switch that doubles as gain adjustment. The switch initially turns the tube on at full brightness, then dims the MX-11769 image intensifier tube as the knob is rotated further. The unit includes an onboard infrared illuminator activated by a push button switch on the front of the unit. The button is
surrounded by a protective fence to prevent accidental activation. Indicators on the edge of the viewing area show if the IR LED is actively on, or if the unit detects a low battery.
The RVM-14 weighs 15% less than a typical single AA PVS-14 with a 50% longer battery life and has a much tougher housing.

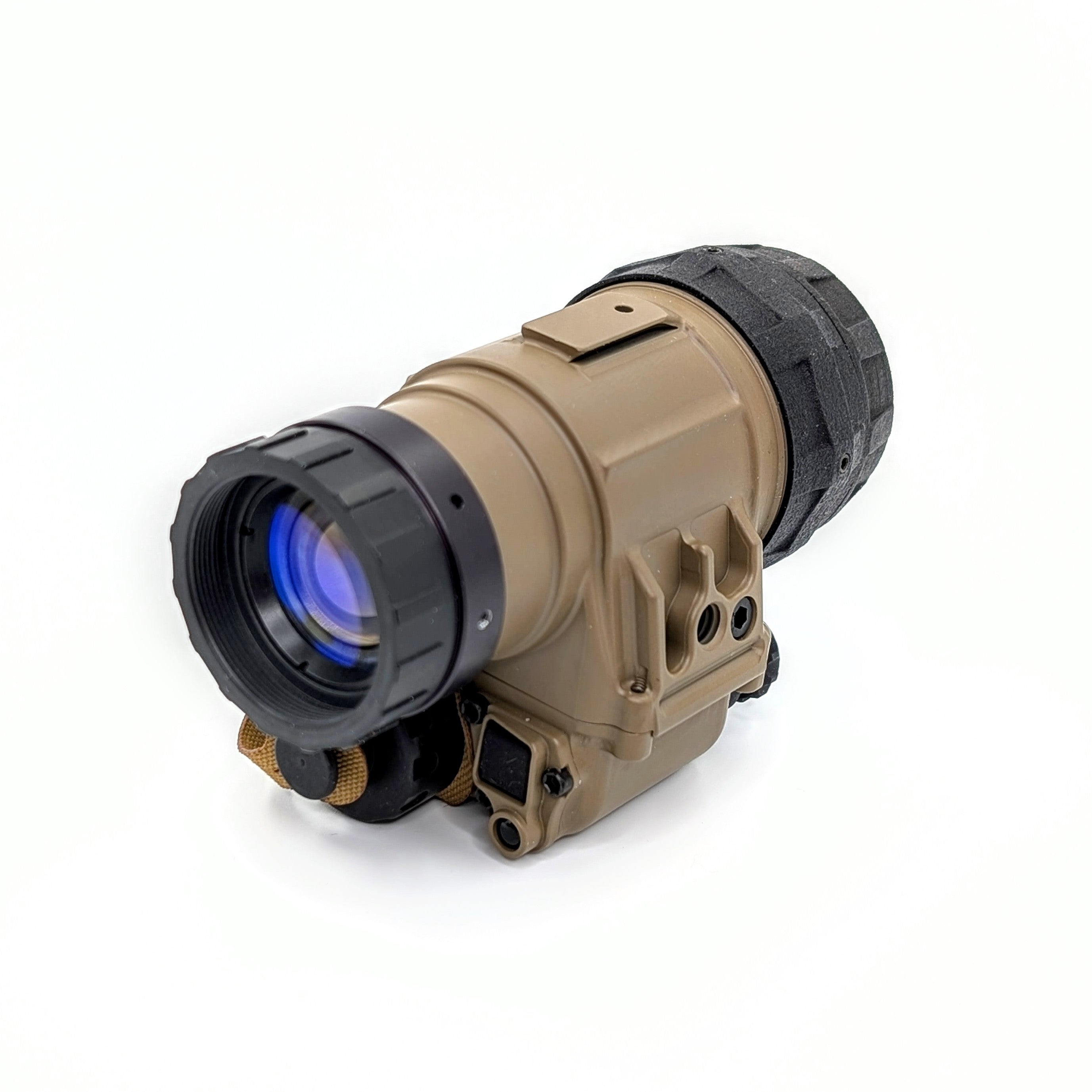

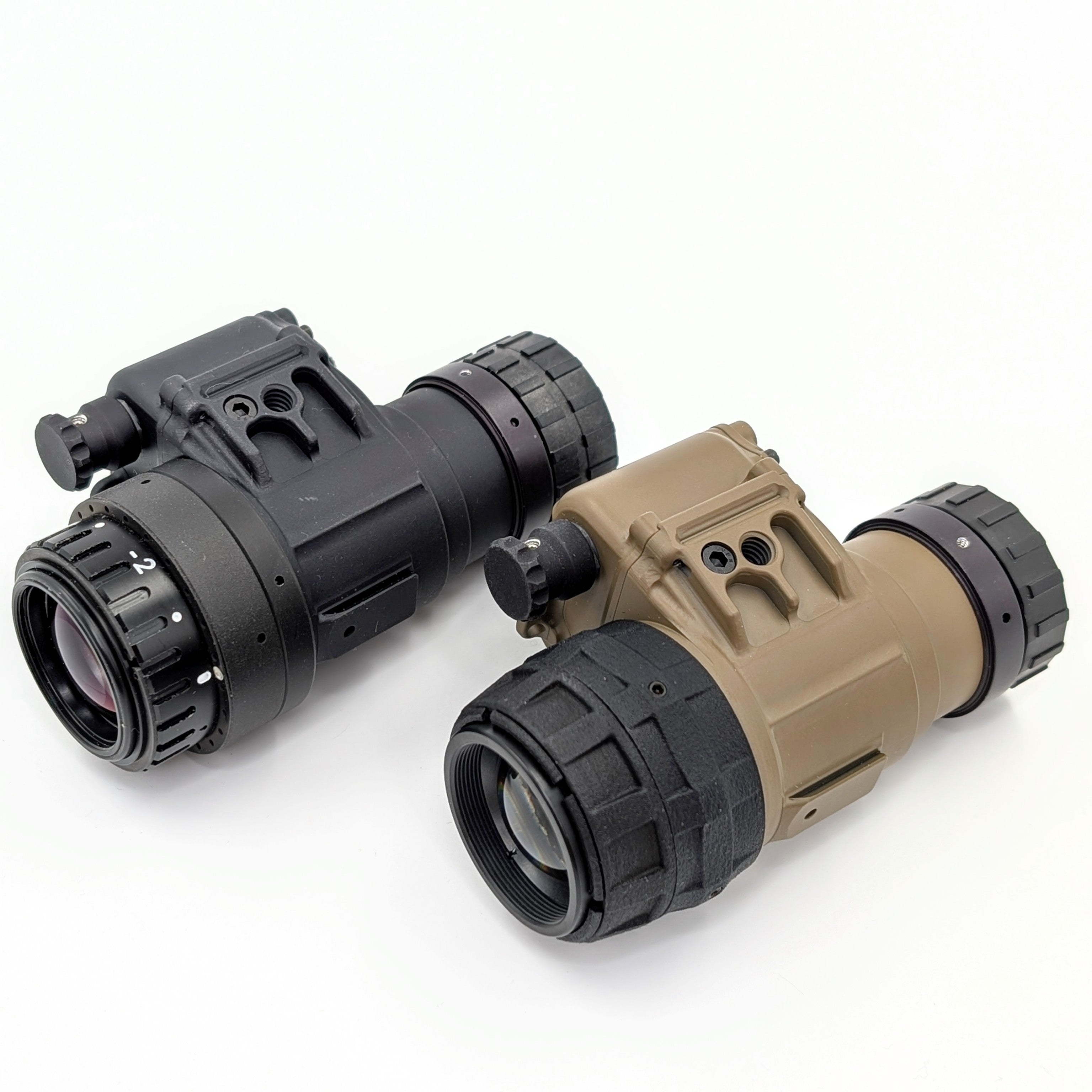

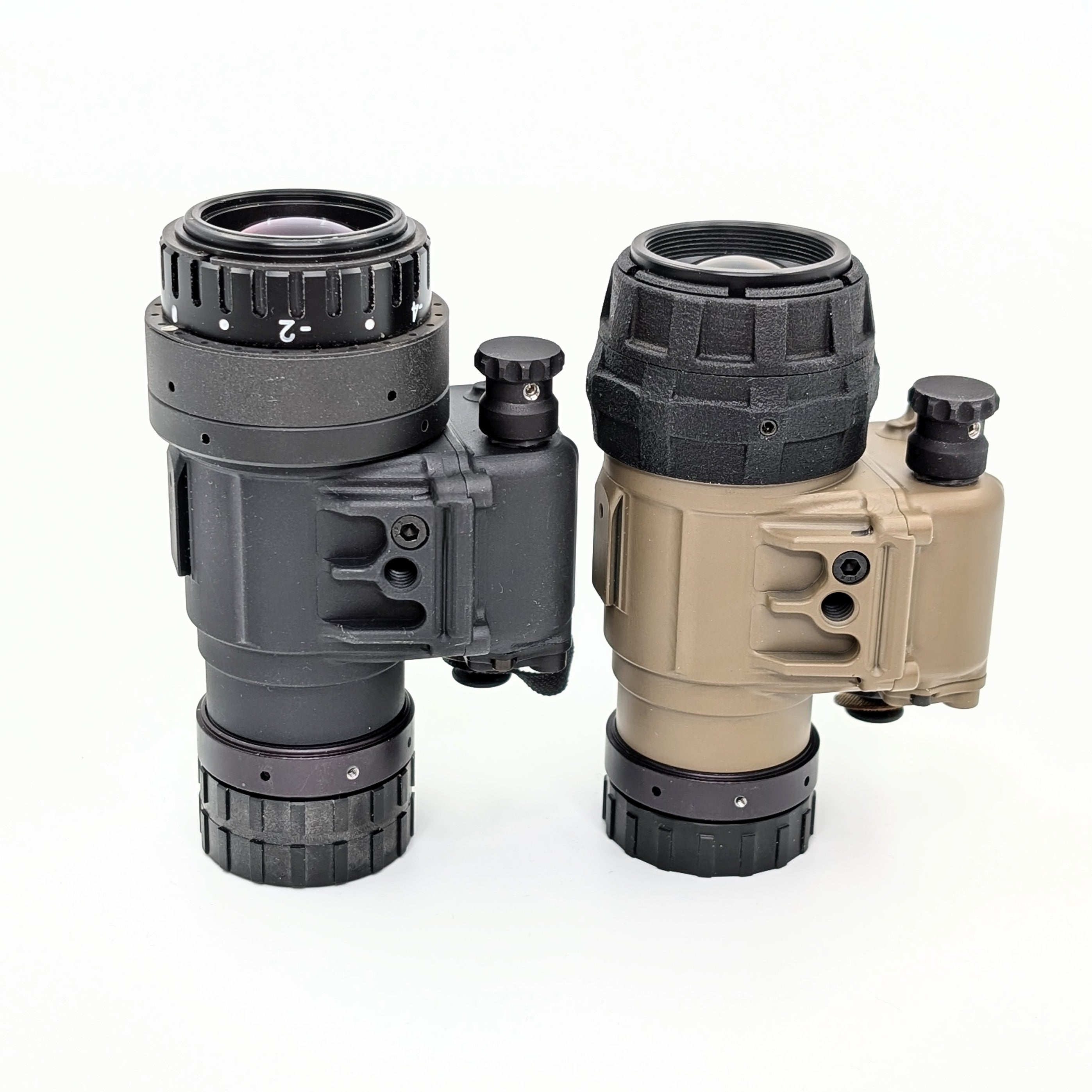

The monocular is available in Flat Black and Flat Dark Earth. The components of the monocular are media blasted to give a non-reflective matte finish, then black anodized for durability. For the FDE option, Cerakote, a proven firearms finish, is applied over the anodizing to give a tough, attractive finish.
Key Features:
- Power Source: (1) CR123 Size Battery
- Focus Range: 9.8” to Infinity (and beyond)
- Operation Time: Approximately 75 Hours at Room Temperature
- Field Of View: 40 Degrees
- Weight: 300g with std Mil-spec optics and battery
- Dimensions: 2.0” X 2.6” X 4.2”
- IR Illuminator: Built In
- Water Resistance: Submersible To 66 FT
- IR LED & LOW BATTERY INDICATORS: YES
- INTENSIFIER TUBES: COMPATIBLE WITH MX-11769 STYLE
- OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
Assembly tools, lenses and other components available, Click Here
Origin:
- Manufactured in USA
- Lenses Manufactured in USA, or TAA Compliant Countries
-
Tubes Manufactured in France or China
- Night vision devices are warranted for life against defects in workmanship and assembly unless otherwise specified, however subcomponents will follow manufacturer's warranty.
- Housings follow manufacturer's warranty:
- Our OEM Housings: OP14, BNVD-1431 Mk.II, NVG-ALPHA, APNVG: 5 Years
- AB Night vision RVM-14, RNVG, RPNVG, RNVG-A, MGA: Limited Lifetime
- KB DT-2: 2 Years
- EON PVS-14: 1 Year
- Noctis PVS-14: 1 Year
- Image intensifiers are warranted for 1 year by the manufacturer.
- Lens assemblies are warranted for 3 years.
User error, negligence, and incoming fire are typically not covered under warranties.
Our nightvision devices are custom built to your specifications. Please allow up to one week for assembly, calibration, and testing prior to shipment.
Premium lens systems
Image intensifiers
NNVT and Photonis
Nightvision Built in Canada
Precision through Process
Our devices are assembled in a positive pressure clean room utilizing HEPA certified filters and strict circulation standards to ensure a dust free assembly environment. Our blowers for cleaning optical components use compressed, double filtered 99.999% dry Nitrogen.
Calibration and collimation are performed using our Hoffman Engineering ANV-126A and HVS-126 Night Vision Digital Calibration System. Waterproofing and environmental resistance are vacuum tested followed by a multi phase Argon purge using our digital vacuum and purge test set.
We strive to bring the highest quality standards to our customers. Our night vision devices are built and assembled in our specialized facility in Aurora, Ontario.
