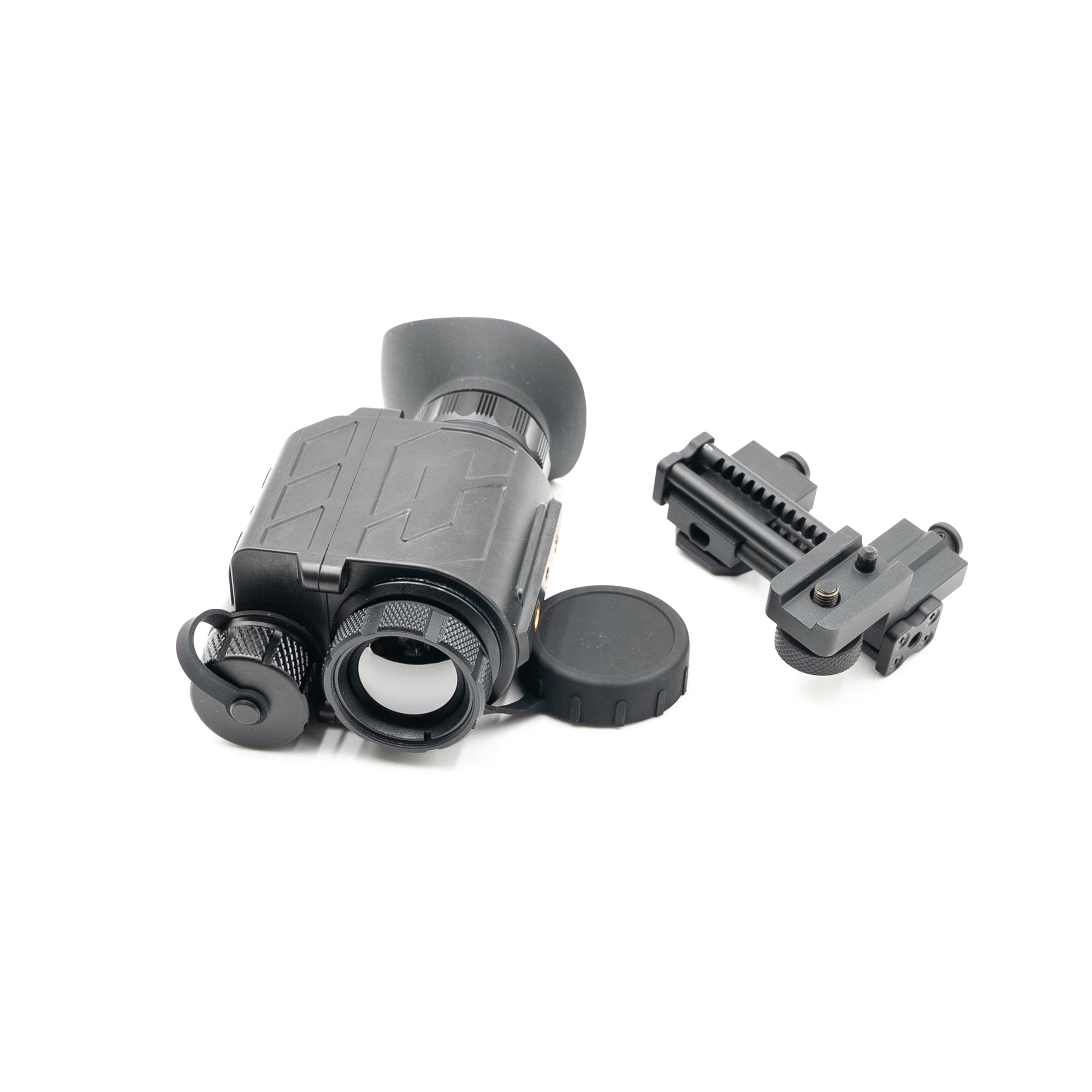

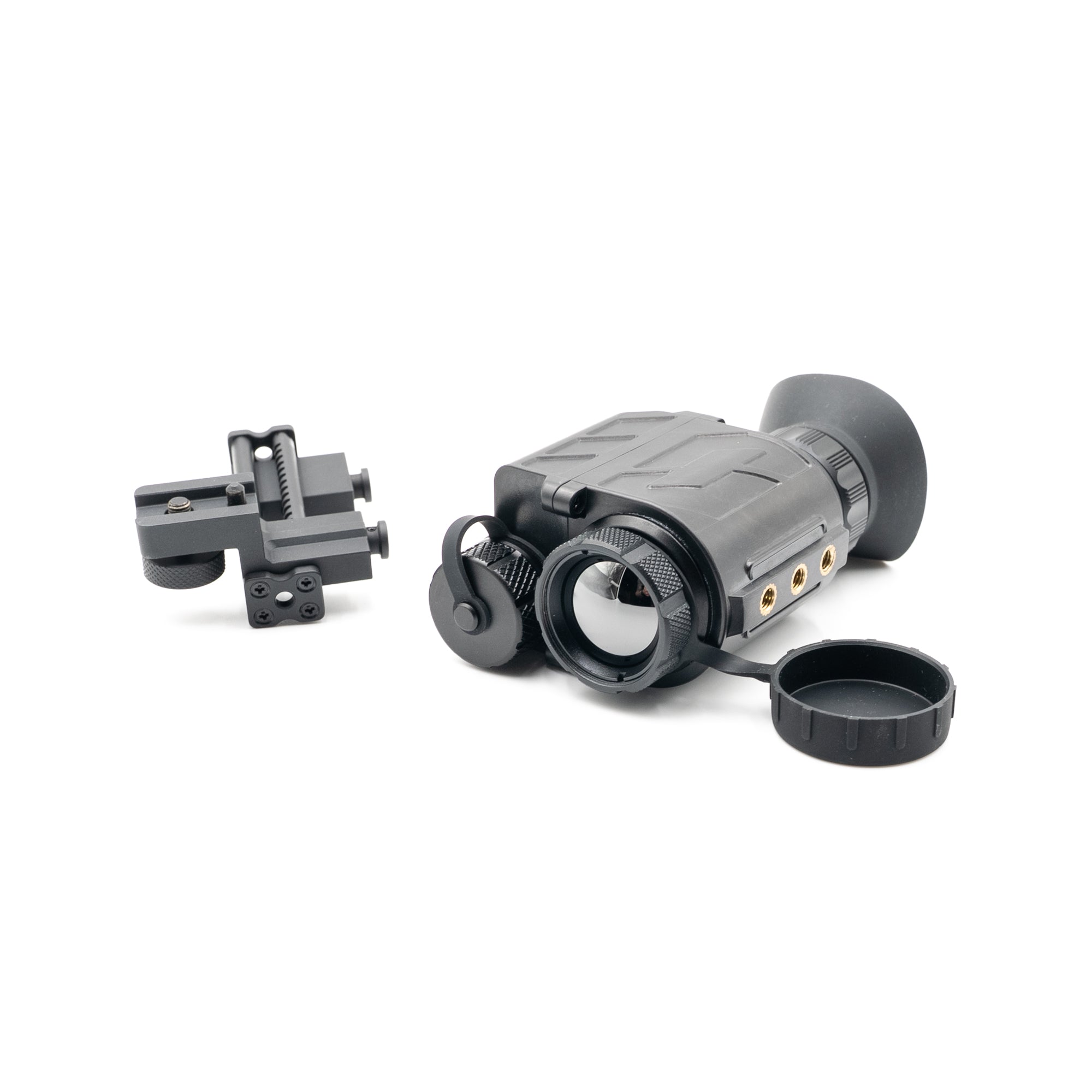

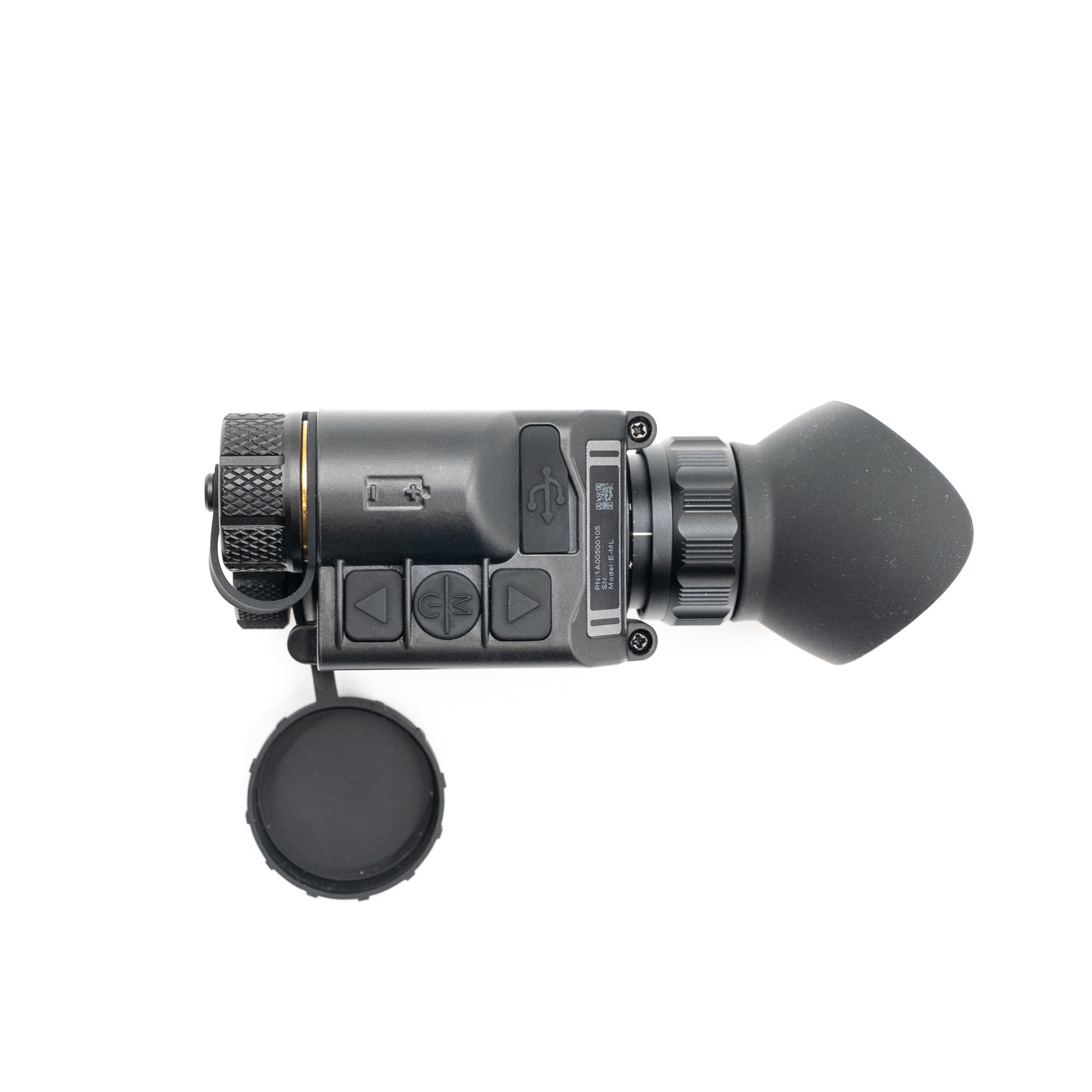

YM Micro 640
The Micro 640 is an excellent value thermal monocular, with exceptionally lightweight (220 grams) and compact form factor it is ideal for a pocket deployed/handheld or headworn setup.
With a 640 x 480 with 50 hz refresh rate core it delivers a detection capability that rivals many larger and more costly thermal devices.
When paired with the included 18650 adapters battery life can run up to 4.5 hours.
| Digital Compass | Yes |

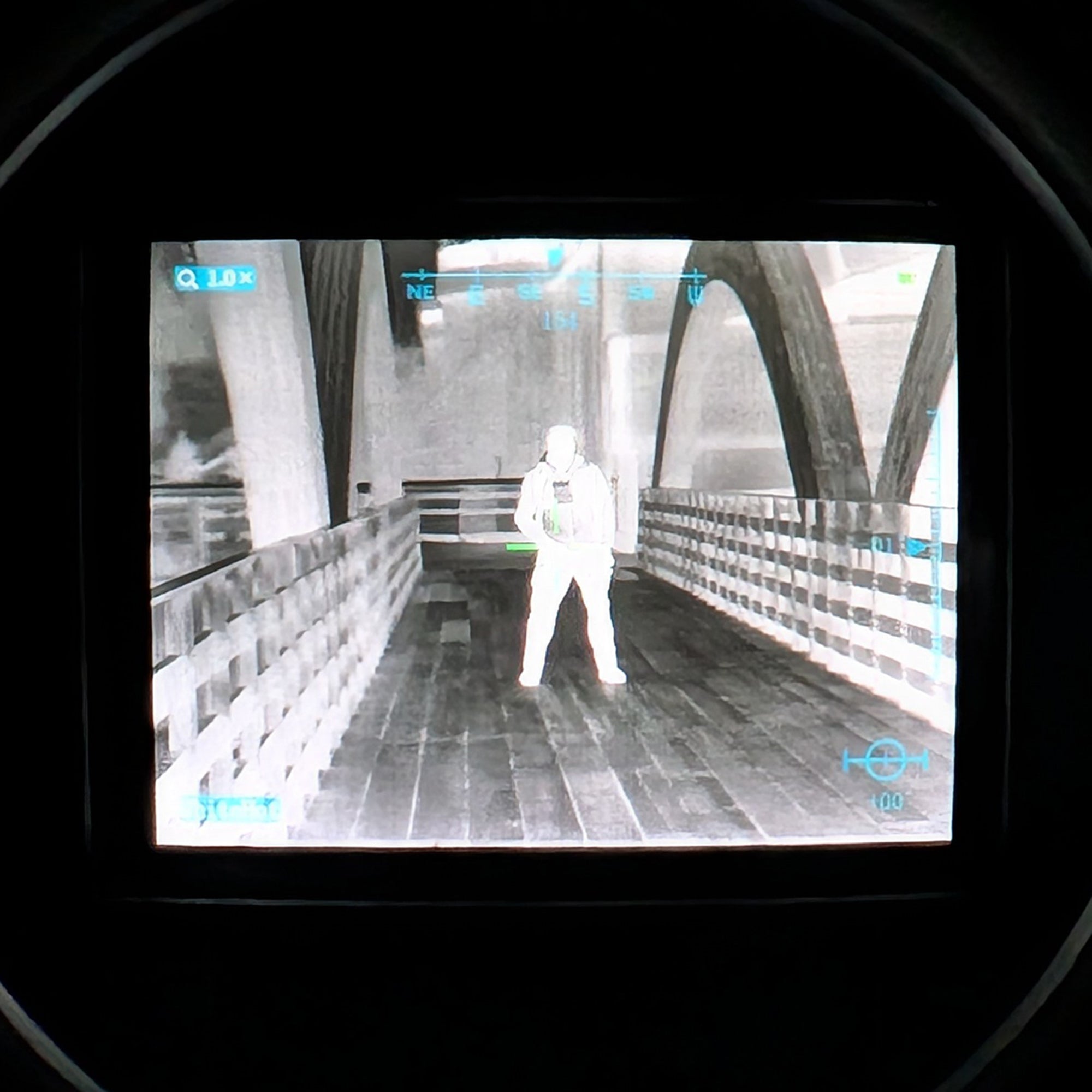

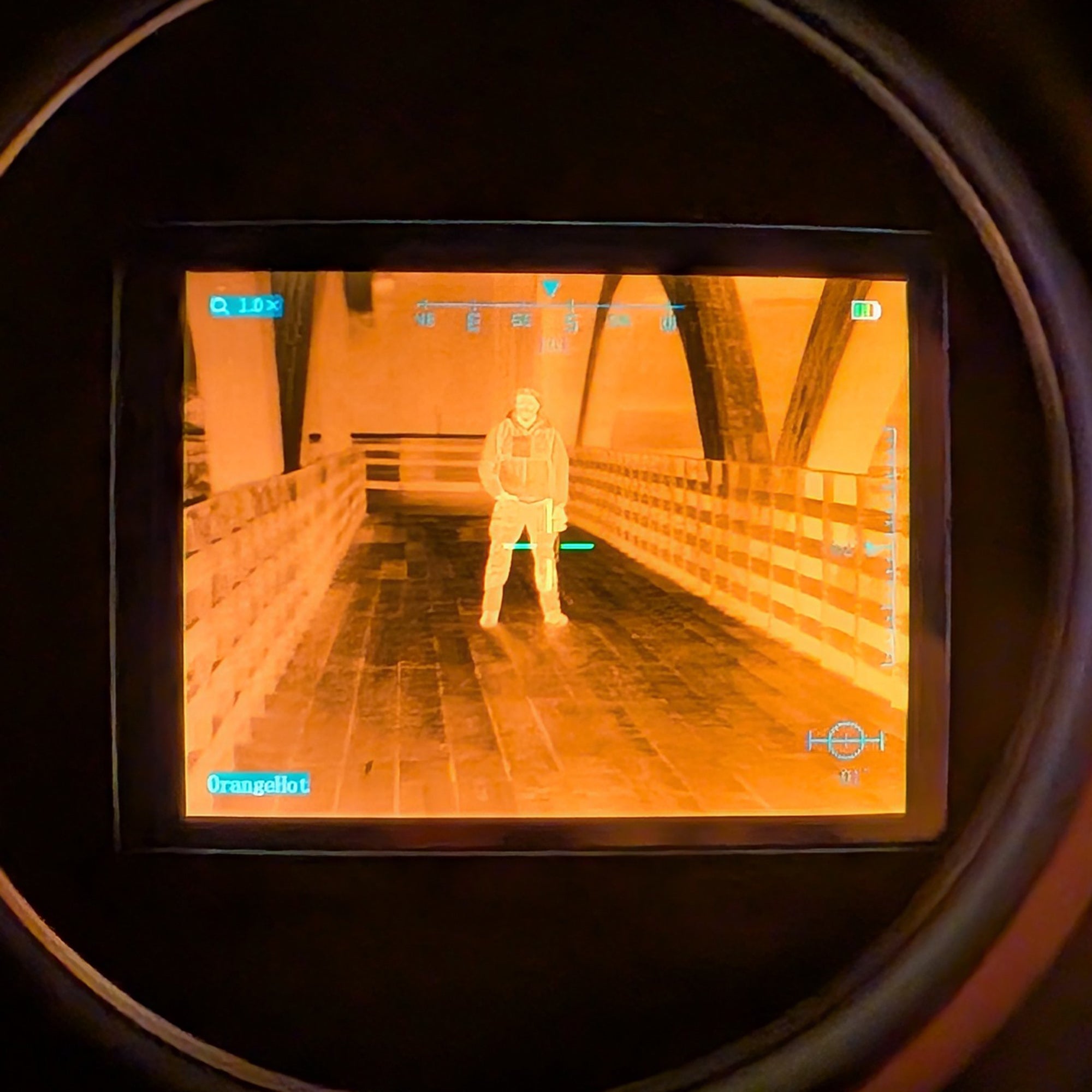

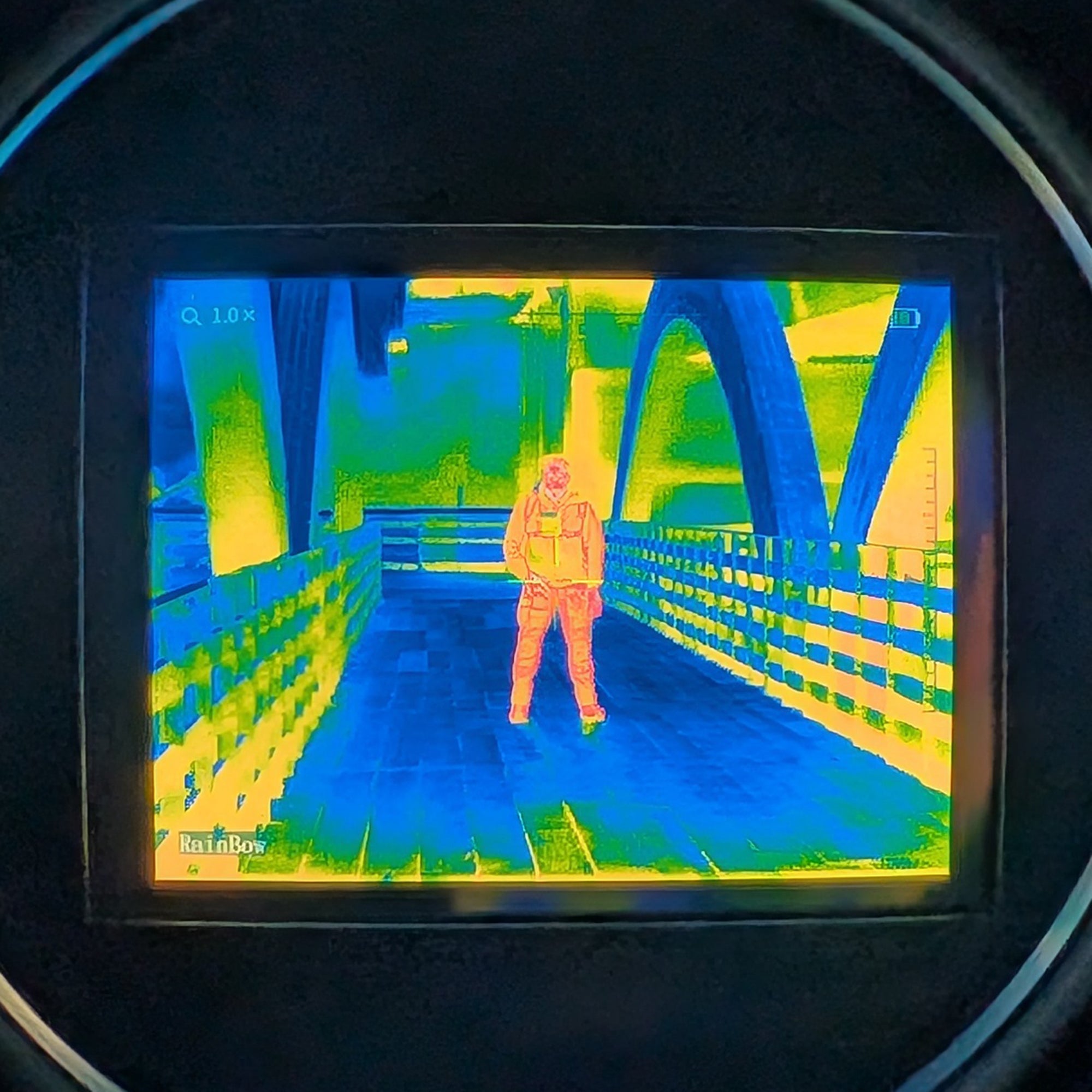

| Palettes | White Hot, Black Hot, Orange Hot, Rainbow |
| Exit Pupil Diameter | 12 mm |
| Magnification | 1x - 8x |
| Detector type |
12 μm Uncooled VOx Microbolometer
|
| FFC (Flat Field Correction) | Auto (1 to 10 min. interval) or Manual |
| Refresh rate | 50 Hz |
| Resolution | 640×480 |
| Detection Range (6' object) | 1200 m |
| Field of view (H × X) | 16.3° × 12.3° (H × V) |
| Digital zoom | 1×, 2×, 4×, 6×, 8× |
|
Diopter adjustment range
|
-5 to +2 dpt |
| Monitor | 1024×768 OLED |
| Video output | PAL video output via USB port |
| Battery Type | One CR123A(3V) or RCR123(3.7V) or 18650(4.2V) |
| Battery Operating Time | CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours |
| External power supply | 5 VDC/2 A, 1.5 W |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Weight | 220 g (7.8 oz) |
| Overall Dimensions | 140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in) |
This product is export controlled, but we do export! Please contact us prior to ordering for more information on the export process.
Made in: China
YM Micro 640
Sale price$3,695.00 CAD
Regular price$4,975.00 CAD
