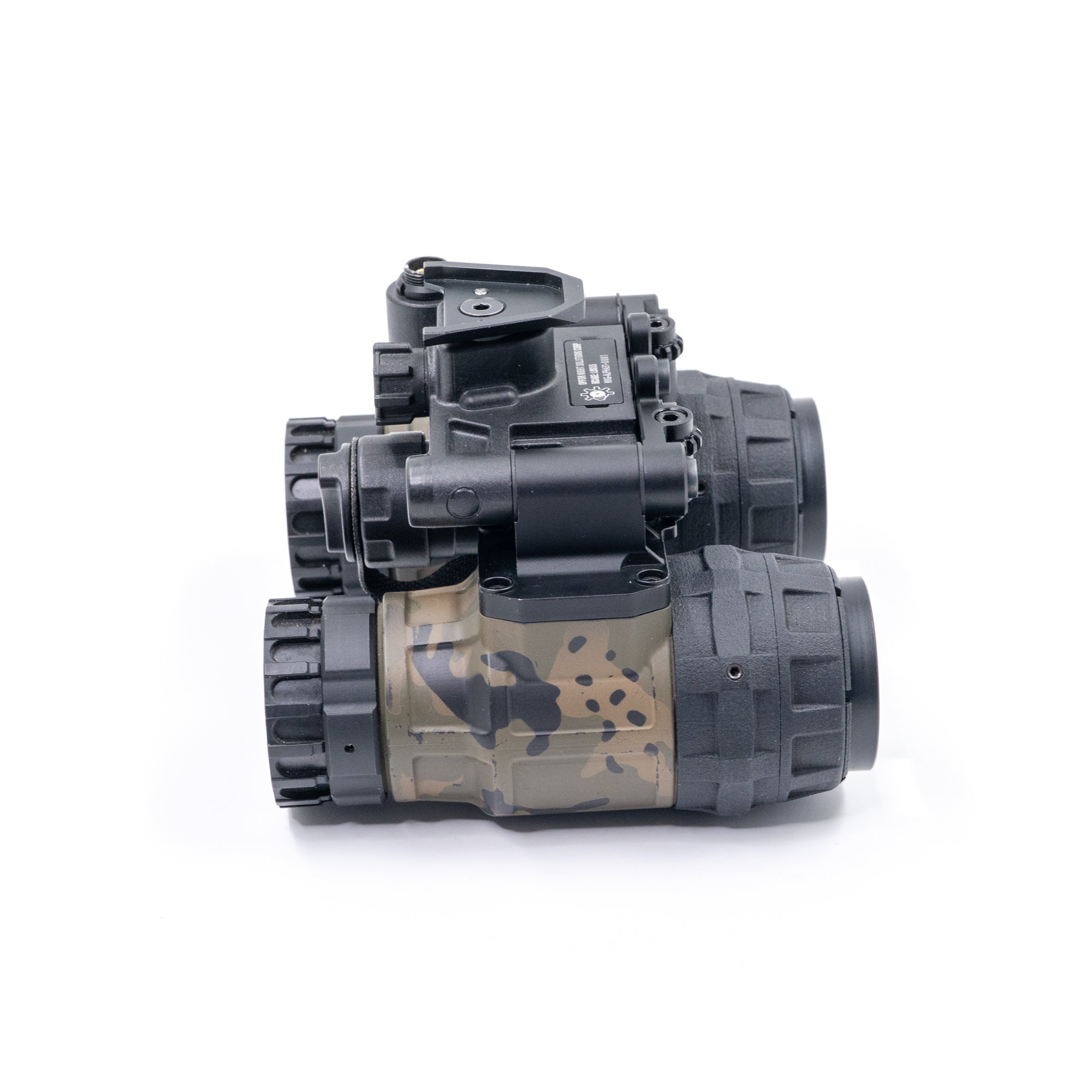

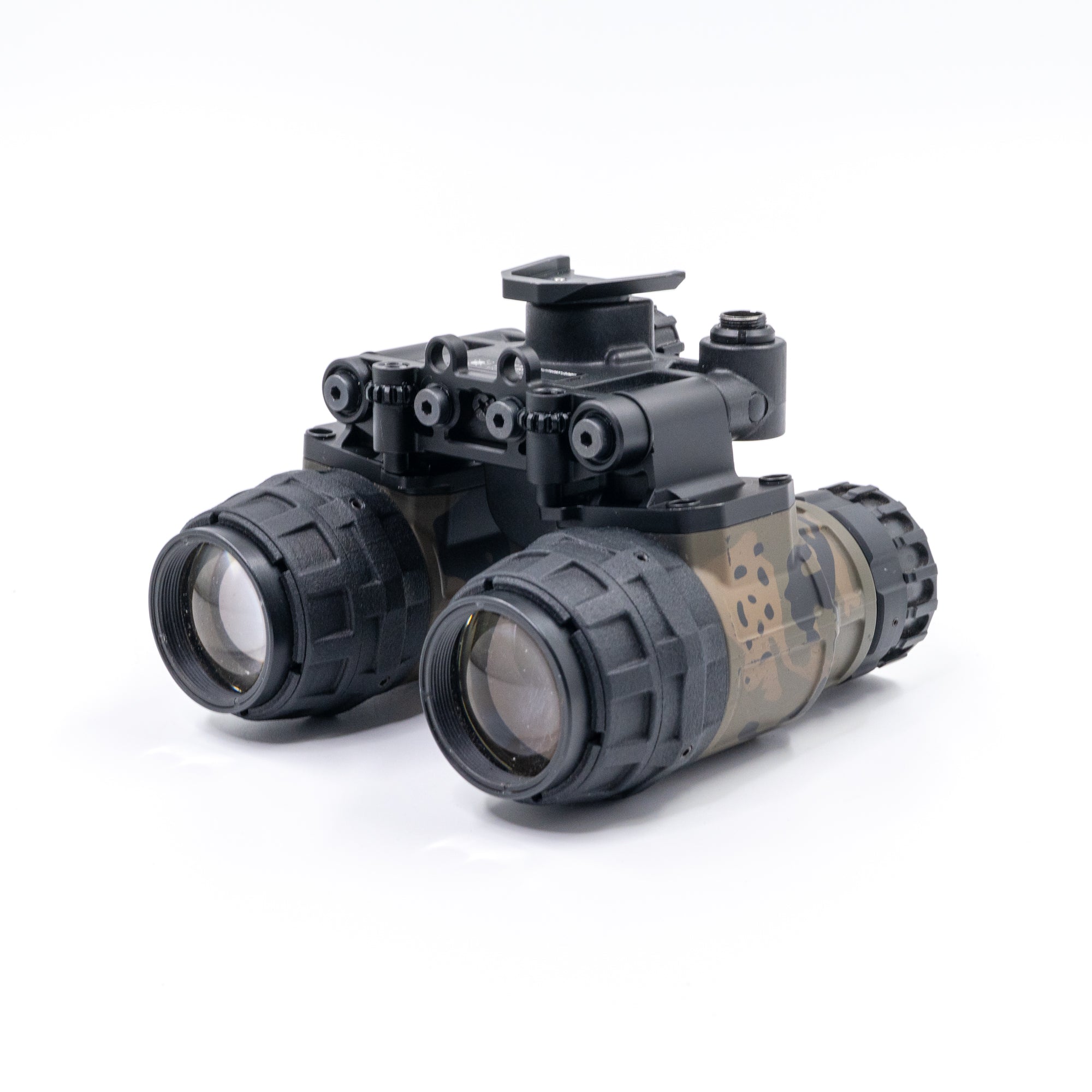

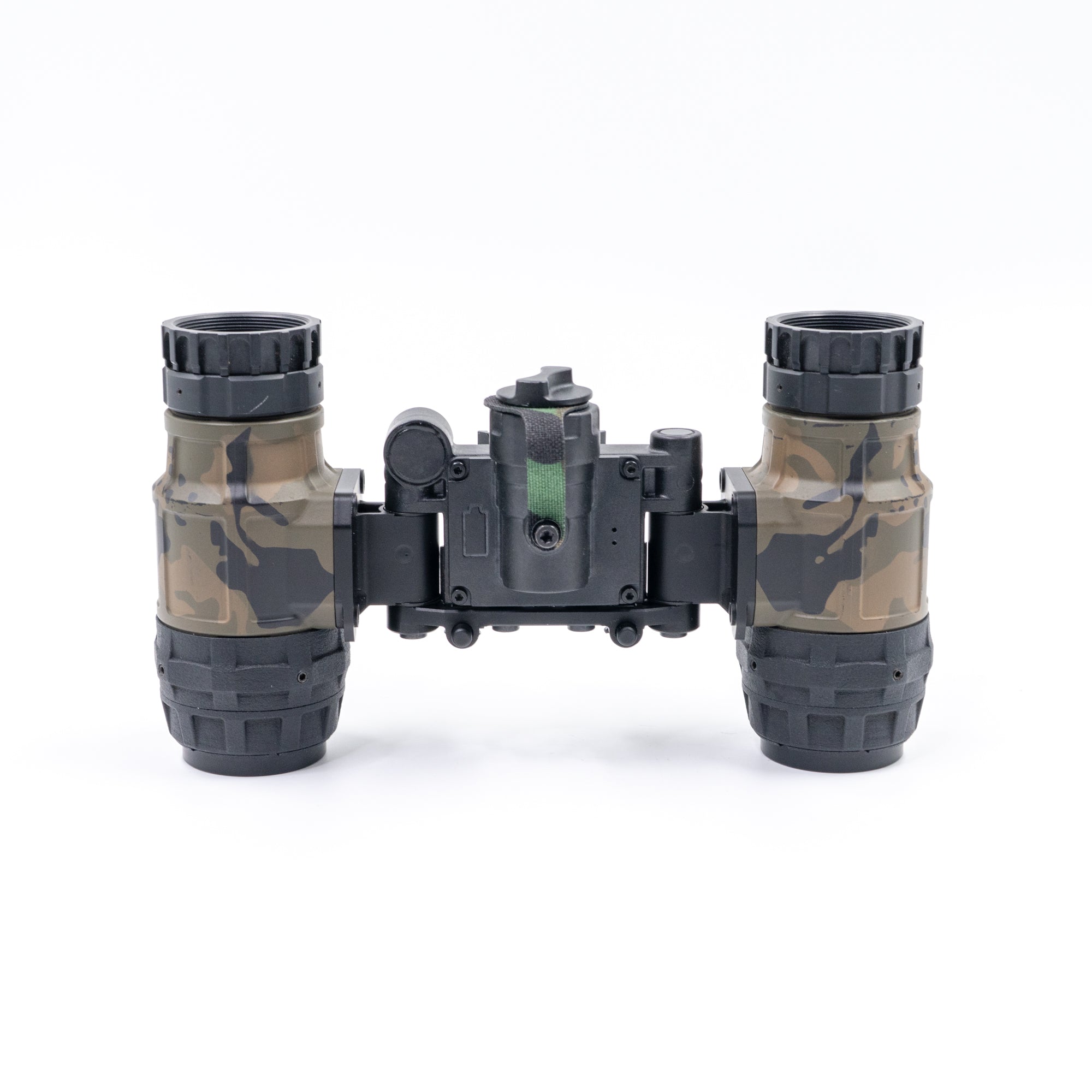

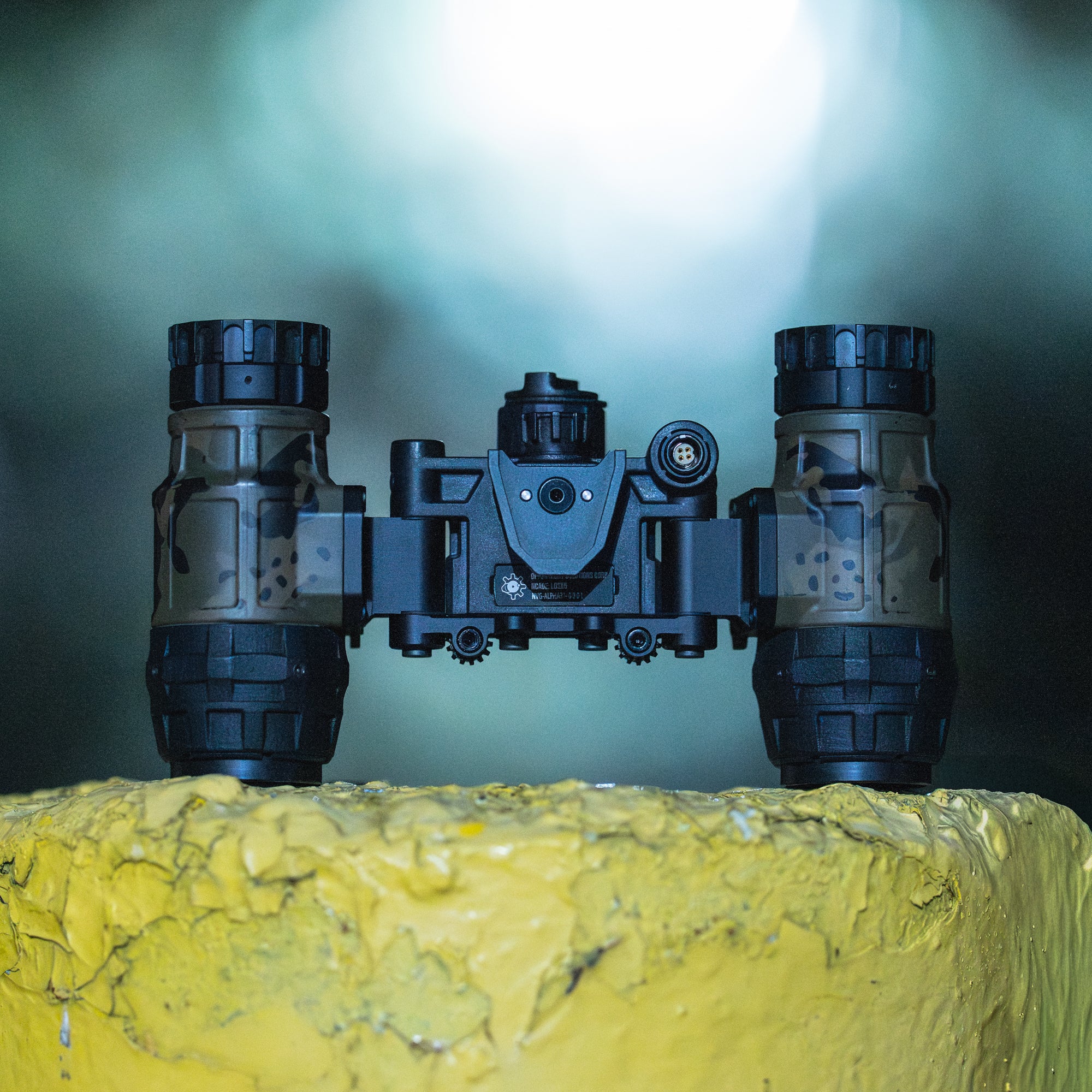

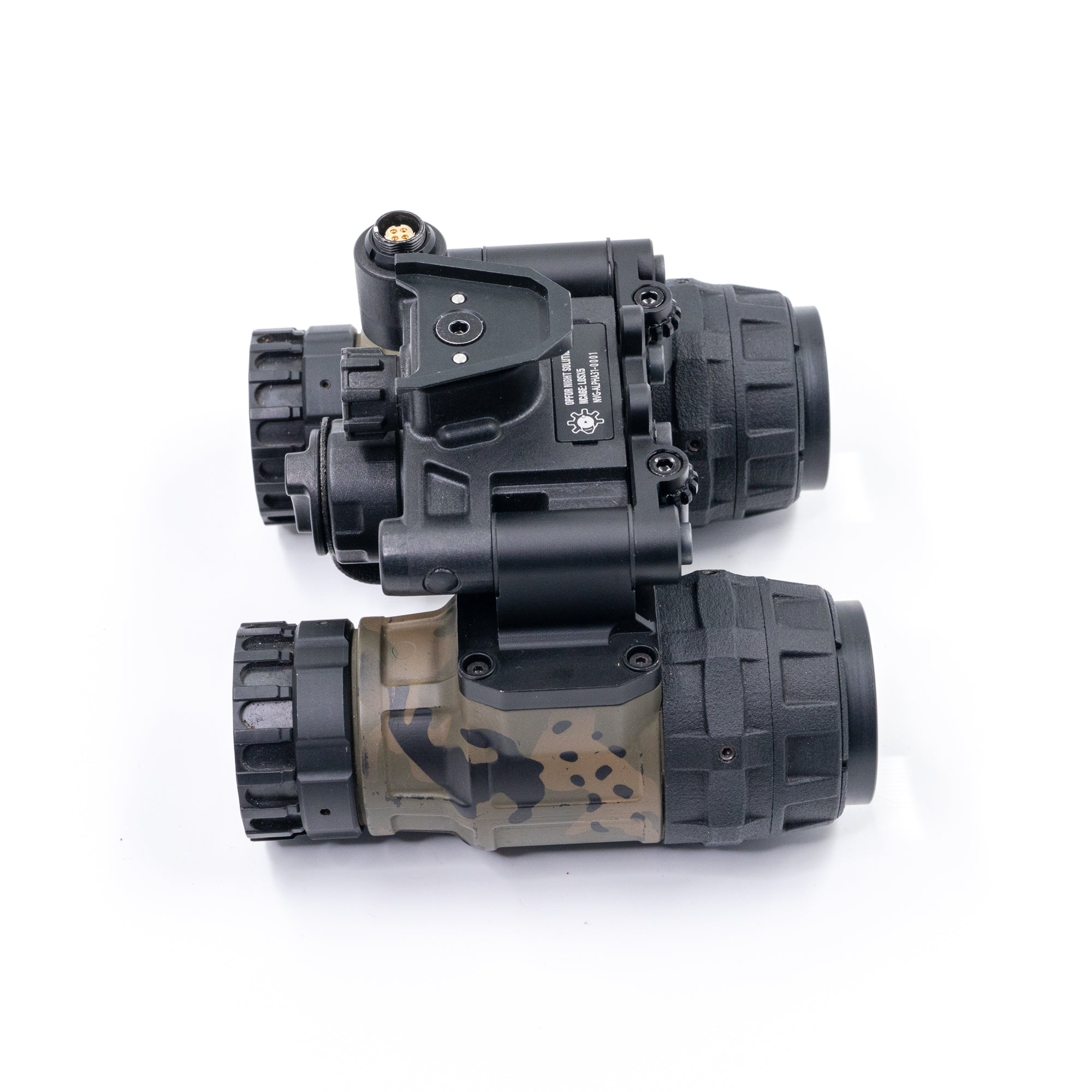

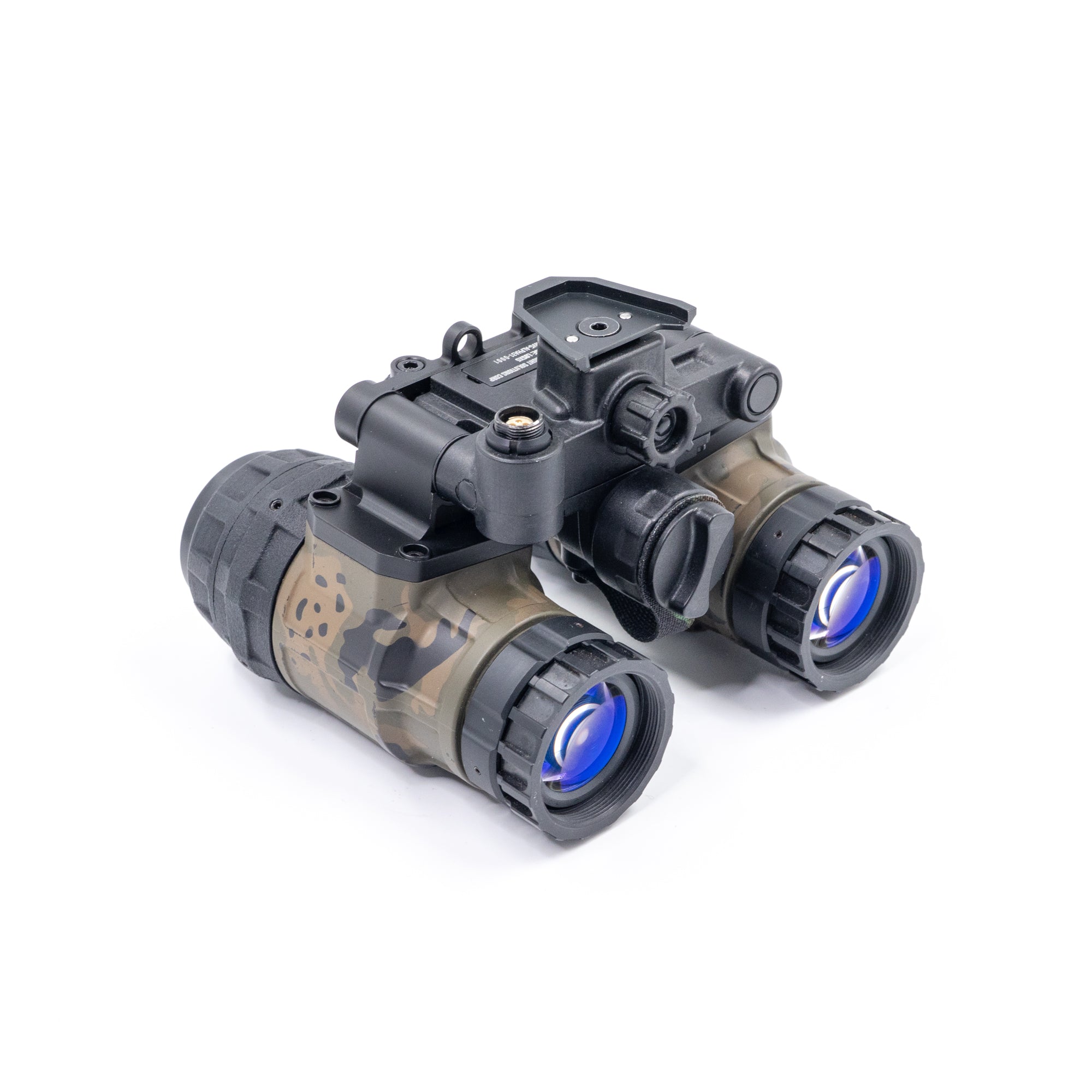

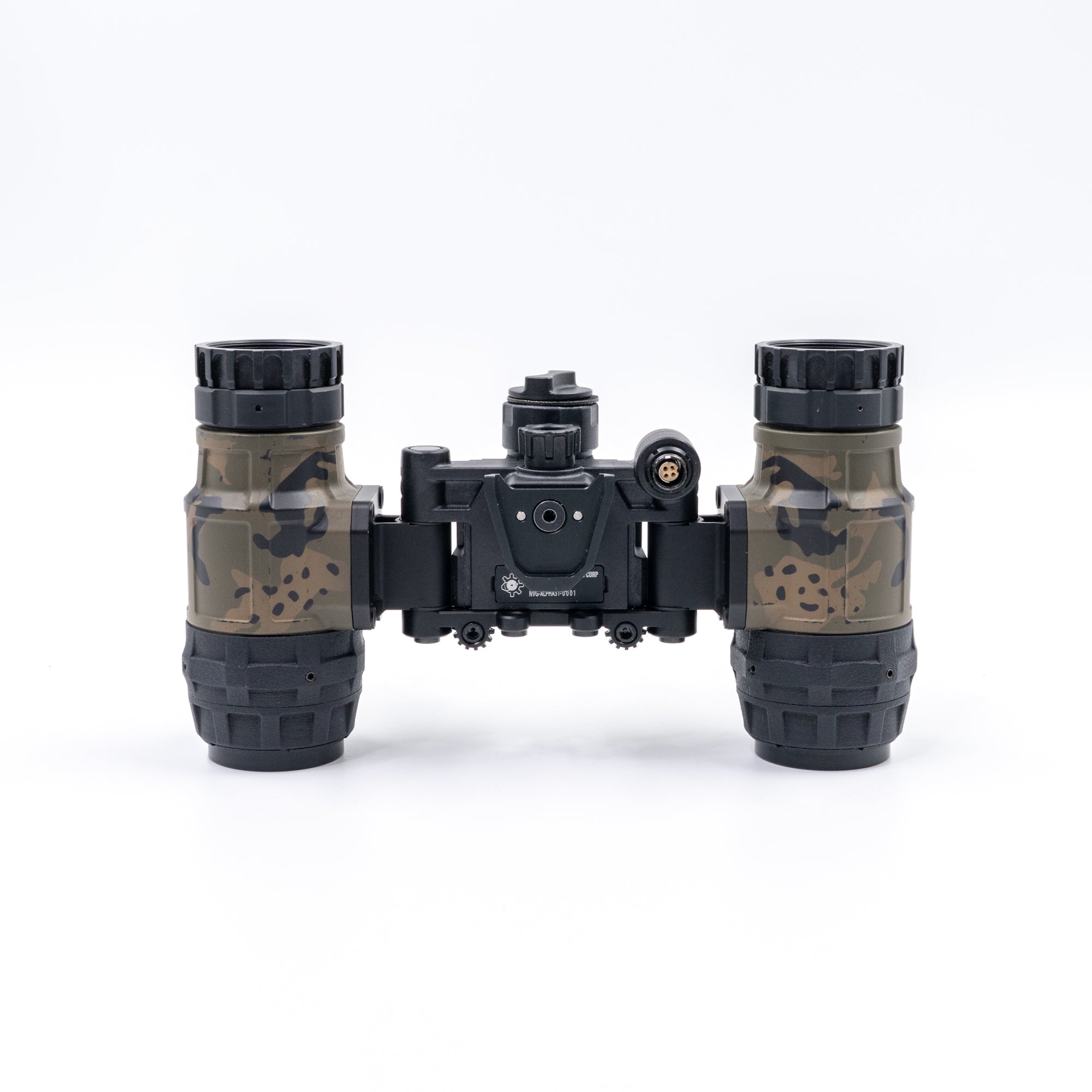

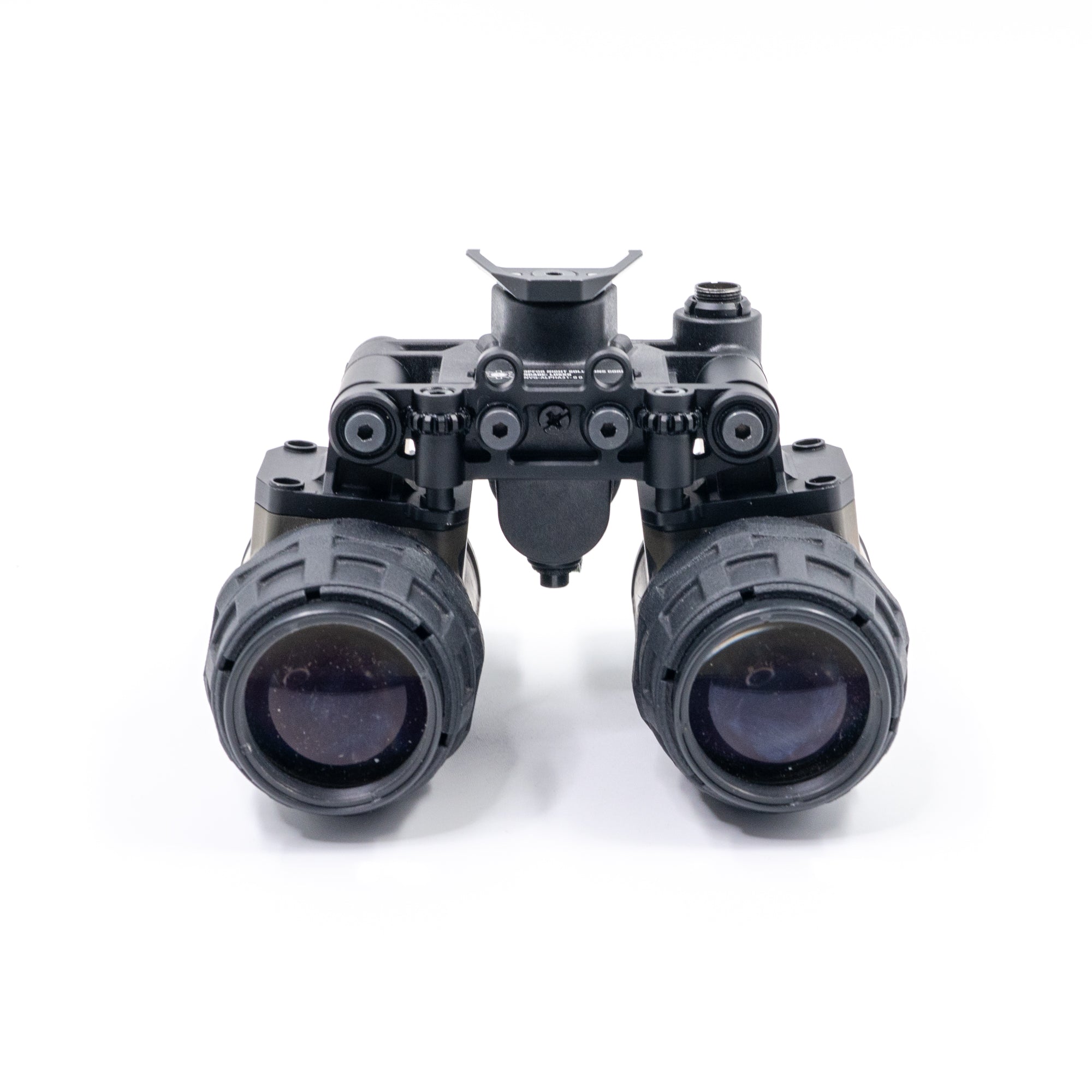

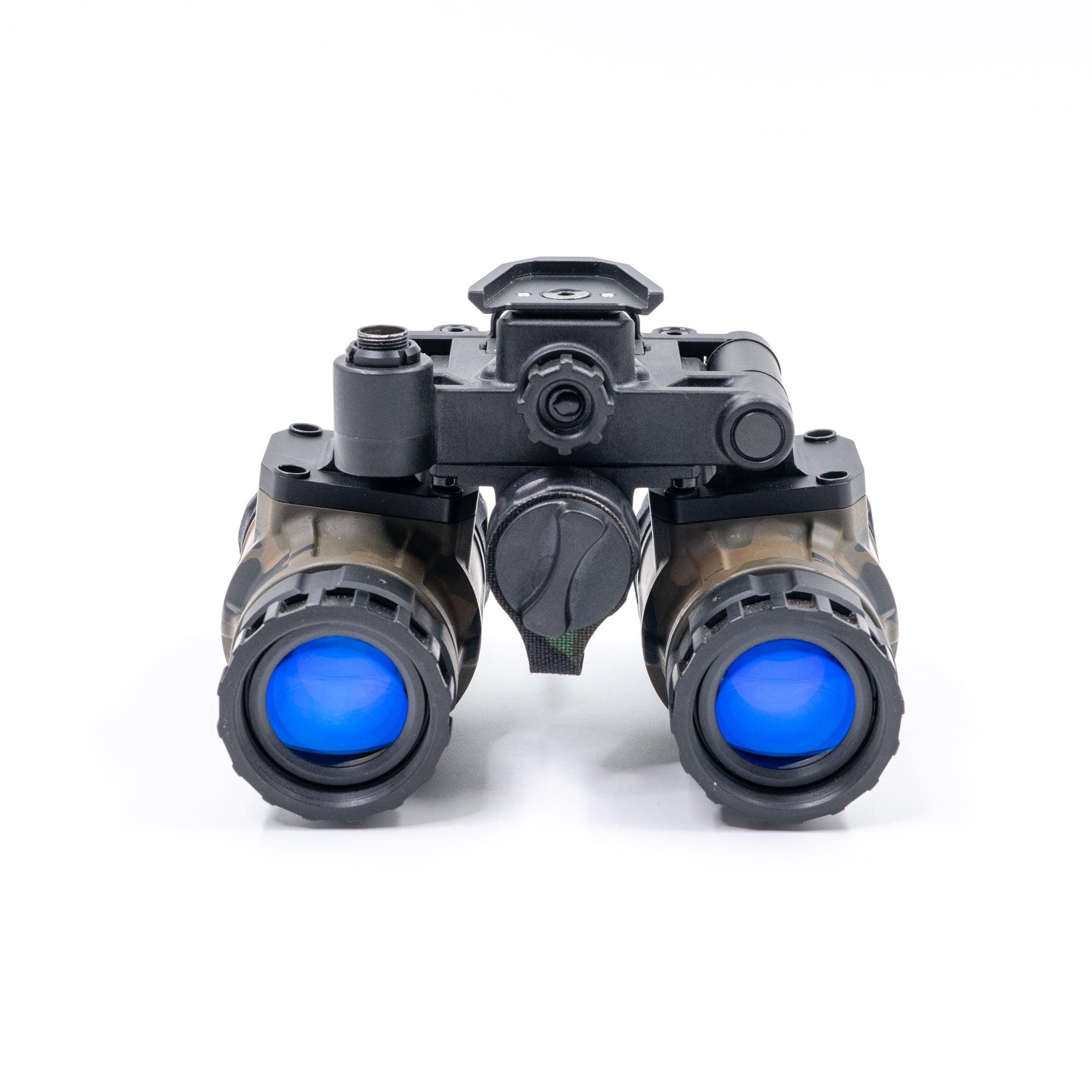

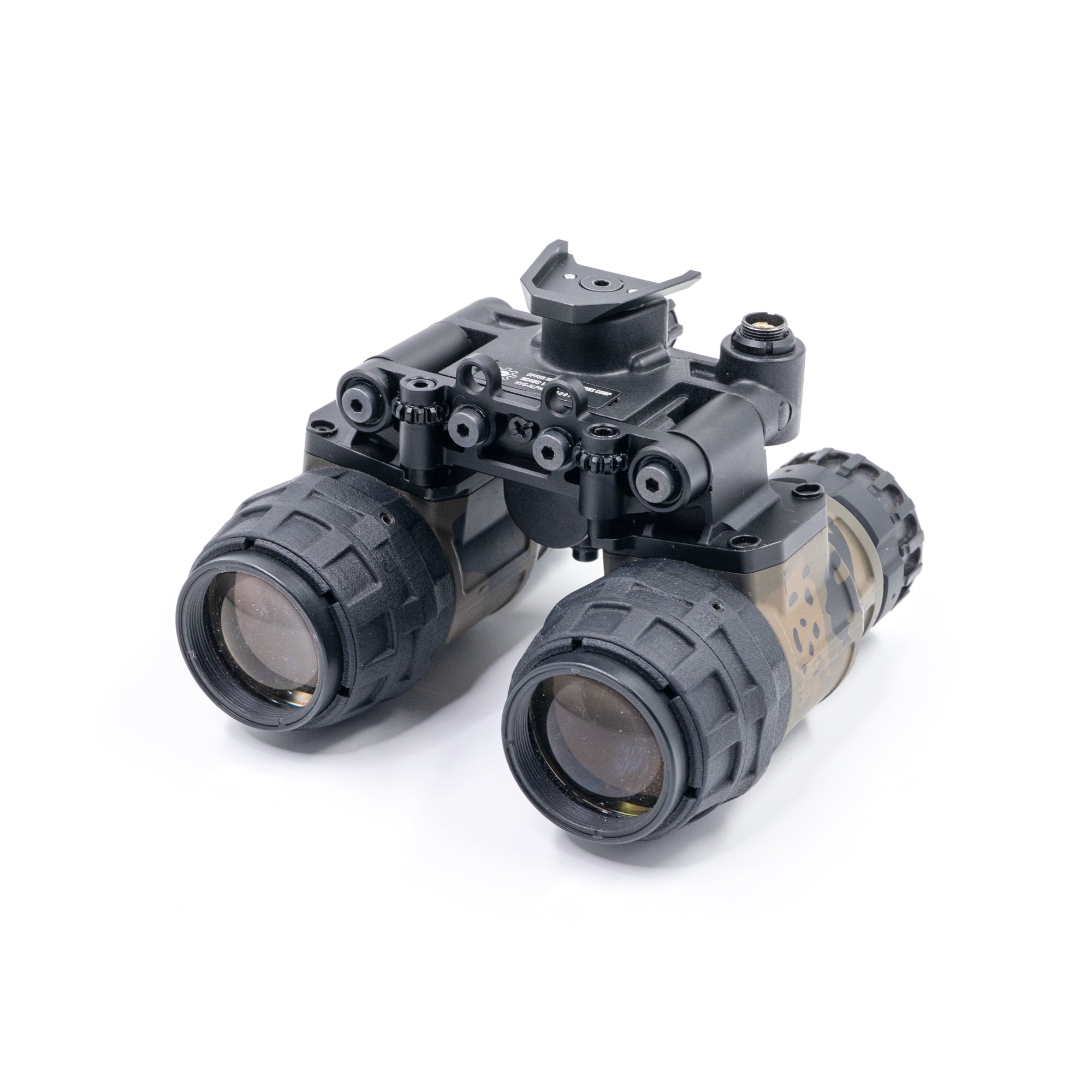

ALPHA-31 Binocular Bridge Upgrade Kit

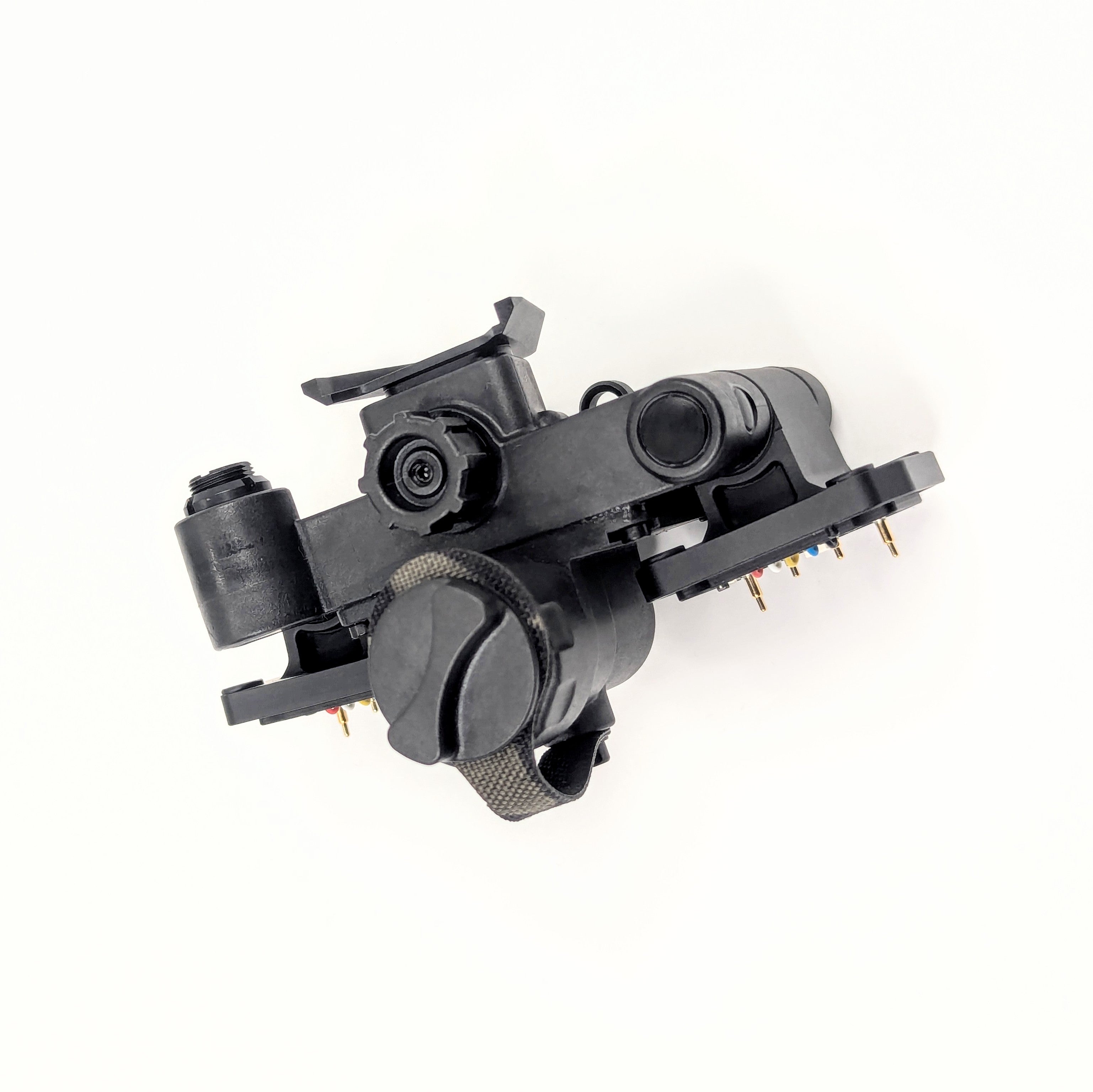

The ALPHA-31 Bridge Upgrade Kit is a complete binocular bridge unit that allows the user to upgrade and up-armour BNVD-1431 variants as well as L-3 PVS-31. This is a bridge only and does not include pods, tubes or glass.

Added Upgrades over Standard Bridge:

• Aluminum Hinge Arms - Replacing standard polymer hinges
• Integrated IR Illuminator

• Reinforced IPD Stop
• Reinforced Hinge Plate
• Variable Power Supply - 1.5V to 5V
• Reduced Height Profile


Key Features:

• Compatible with BNVD-1431, BNVD-1431 Mk.II, and L-3 PVS-31
• Robust aluminum hinge design
• Variable gain
• Gain memory remembers gain settings even when turning device off and on
• Individual pod shutoff when articulated (feature can be toggled ON/OFF)
• Automatic shutoff when flipped past vertical (feature can be toggled ON/OFF)
• 2 minute idle shutoff mitigates damage from devices being left on when not in use (feature can be toggled ON/OFF)

• Intuitive and ruggedized interpupillary stop design redirects all impact forces inwards into a reinforced aluminum plate

• Powered by single CR123A battery (AA cap coming soon)
• Optional remote battery pack with external 4 pin Fischer port


Specifications:

Construction: Polymer and Aluminum
Power: CR123A (~20 hours) or External Fischer
Operating Voltage: 1.2-5V
Operating Temperature: -51°C to +49°C
IR Illuminator: On Board
Manual Gain Control: Compatible with EGAC Pigtail, 3 Plate MX10160, 4 Plate MX10160
Shock/Drop Resistance: meets MIL-STD-810G Transit Drop
Water Immersion: meets IP68, 2 Meters for 1 Hour (Bridge Only)

Origin:
Housing Components Made in China
Assembled in Canada
