BNVD-1531 Mounting Bracket Kit - RENV-C

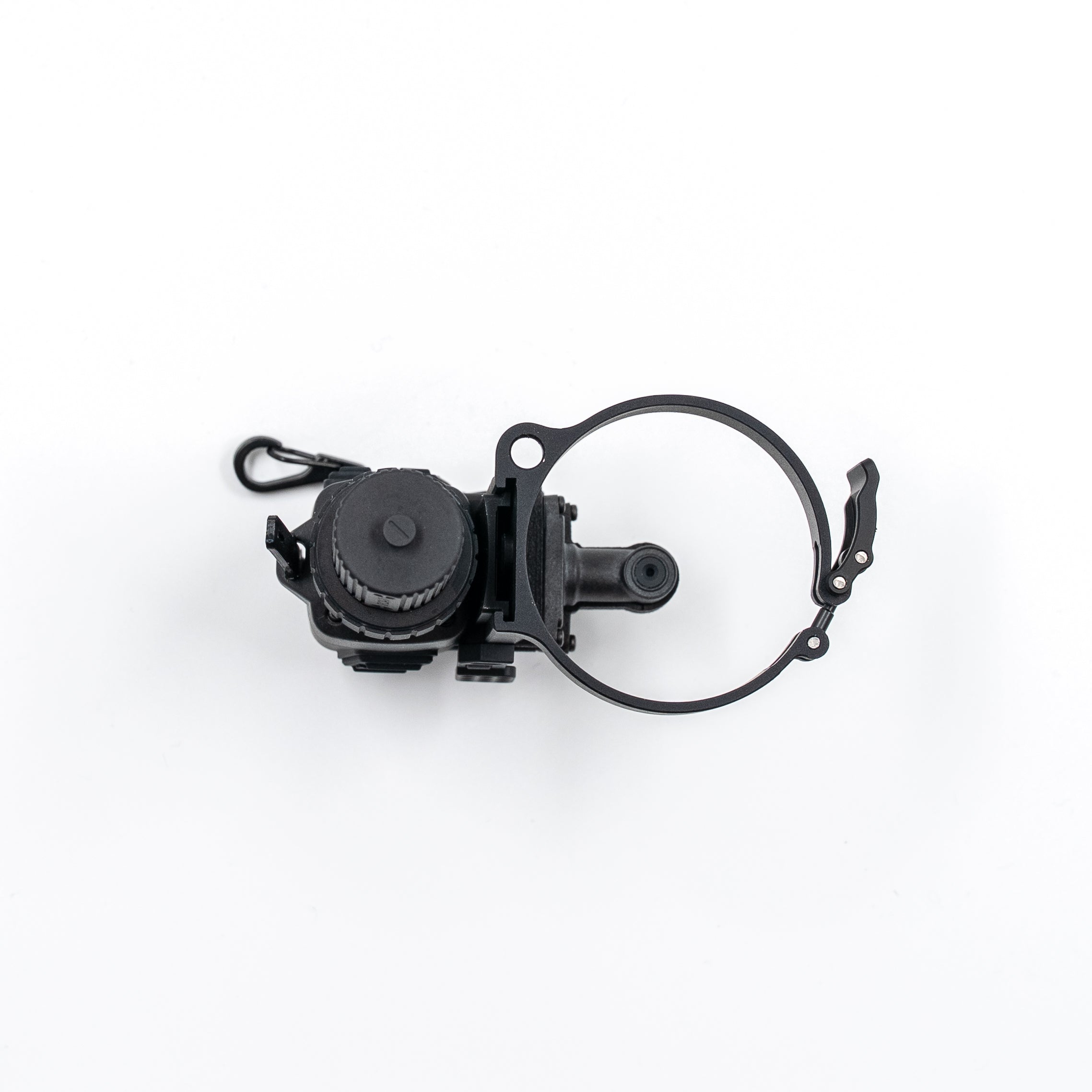

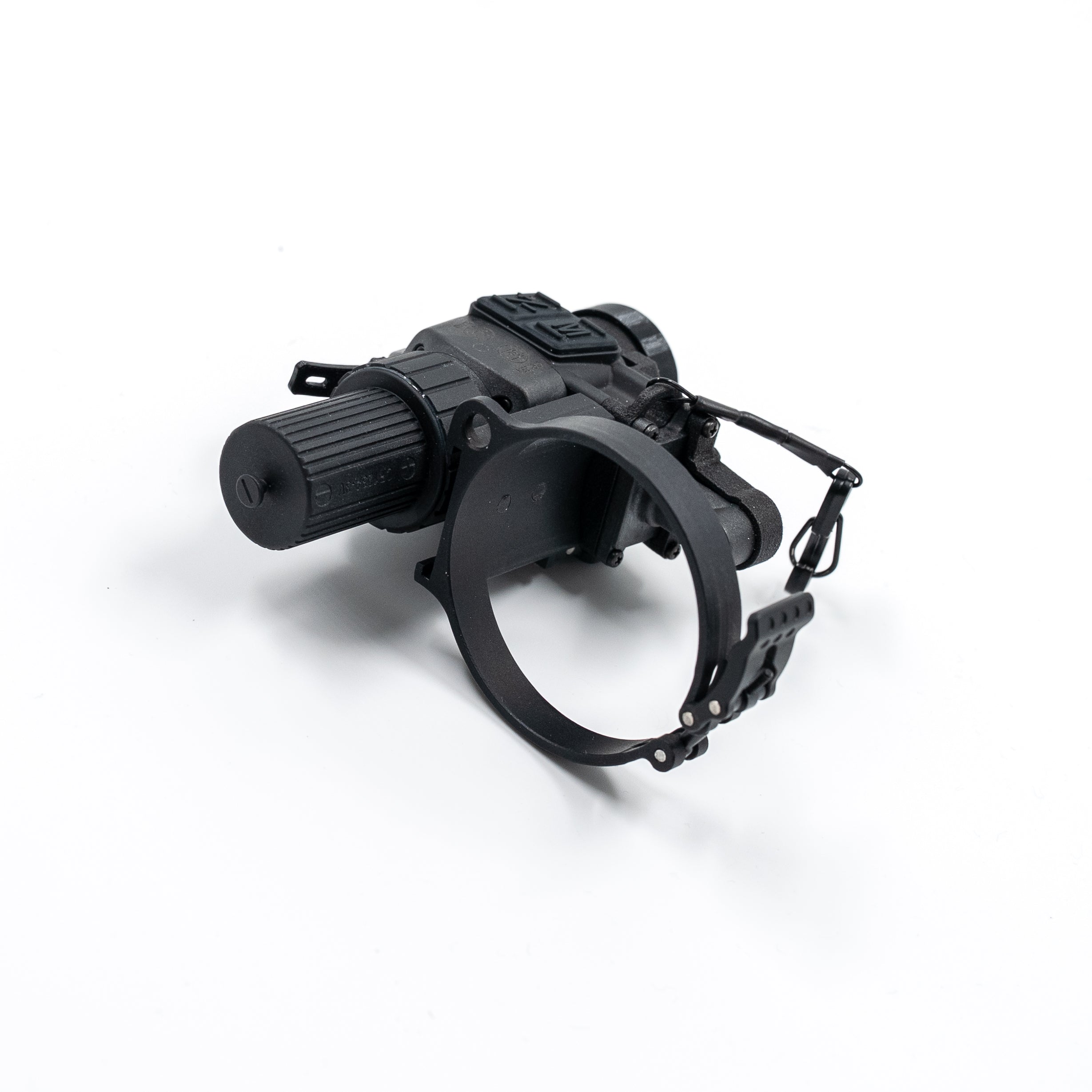

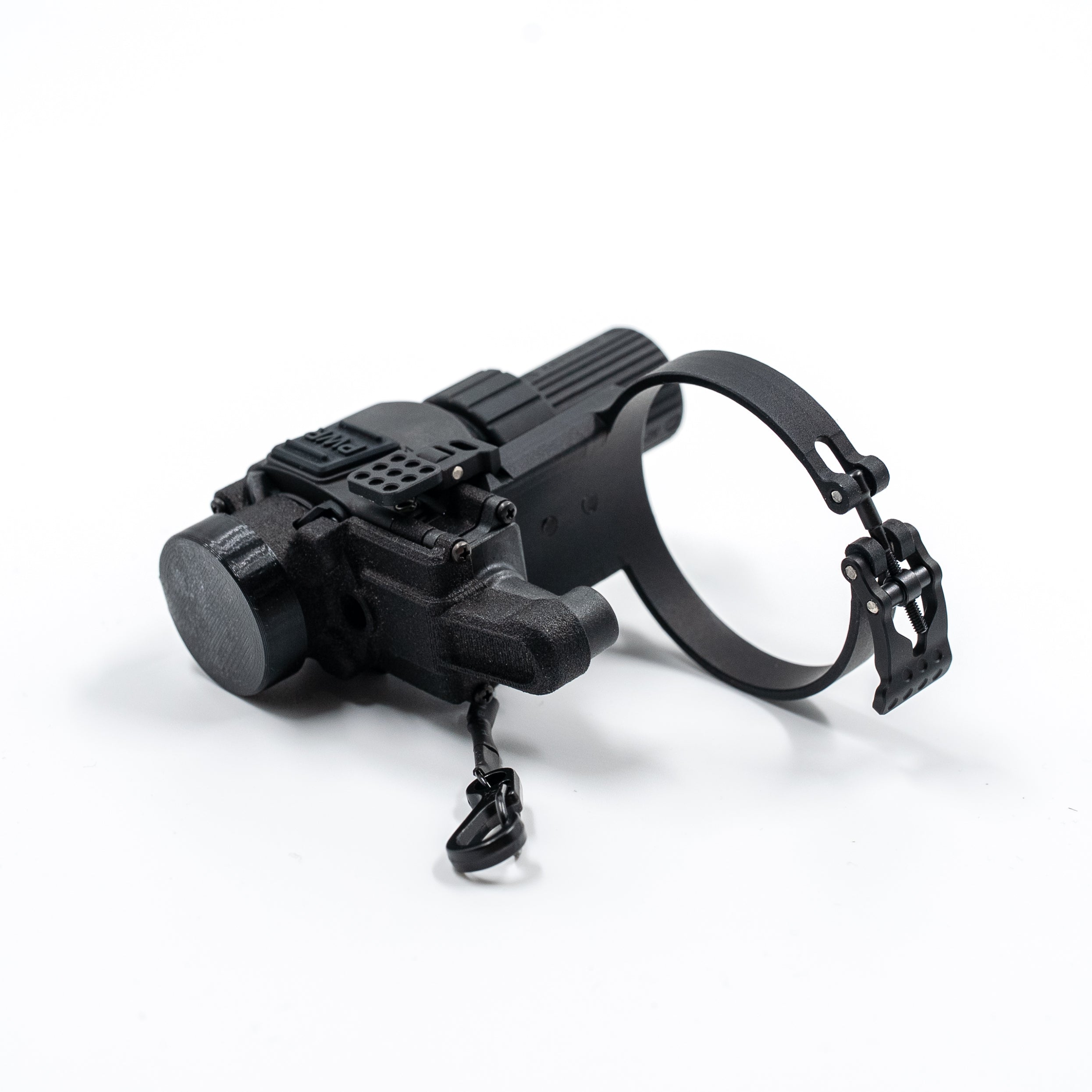

Our BNVD-1531 Mounting Bracket Kit for the RIX RENV-C allows for the mounting of the RIX RENV-C to L3 BNVD-1531 objective lenses. It also adds retention loops allowing the device to be tethered to both the attachment ring, or you night vision device, if desired.

Basic Kit Includes:

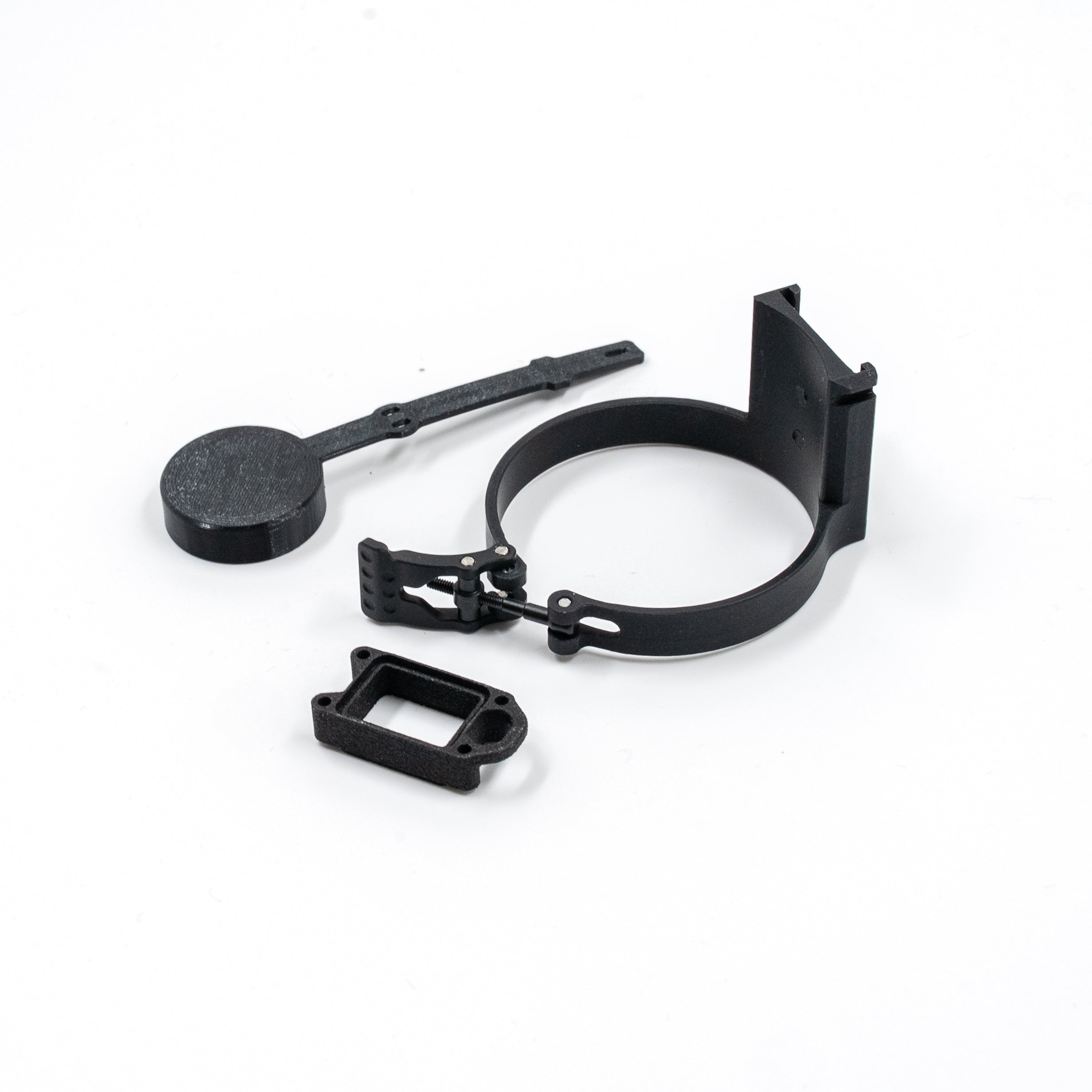

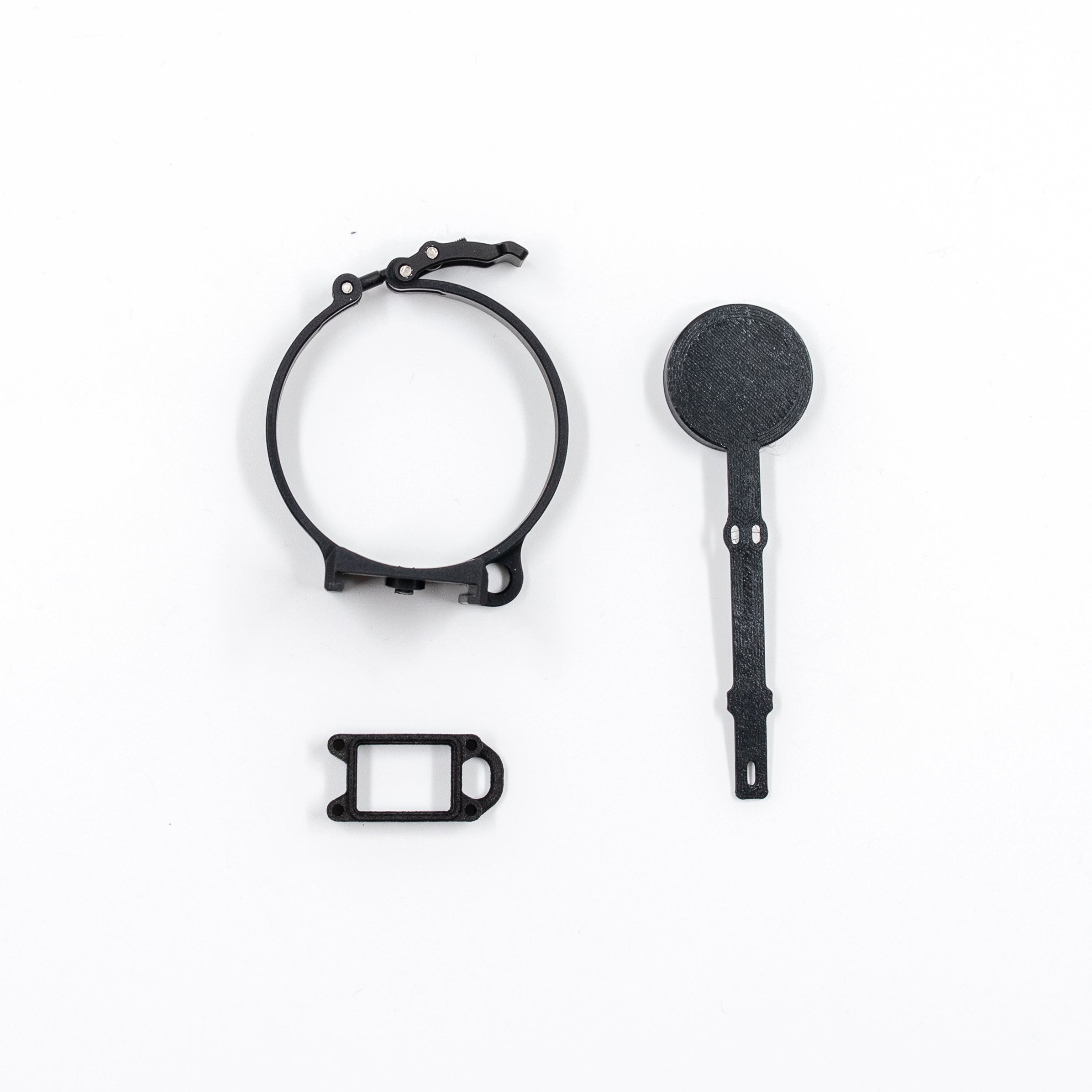

• BNVD-1531 sized mounting bracket for the RIX RENV-C

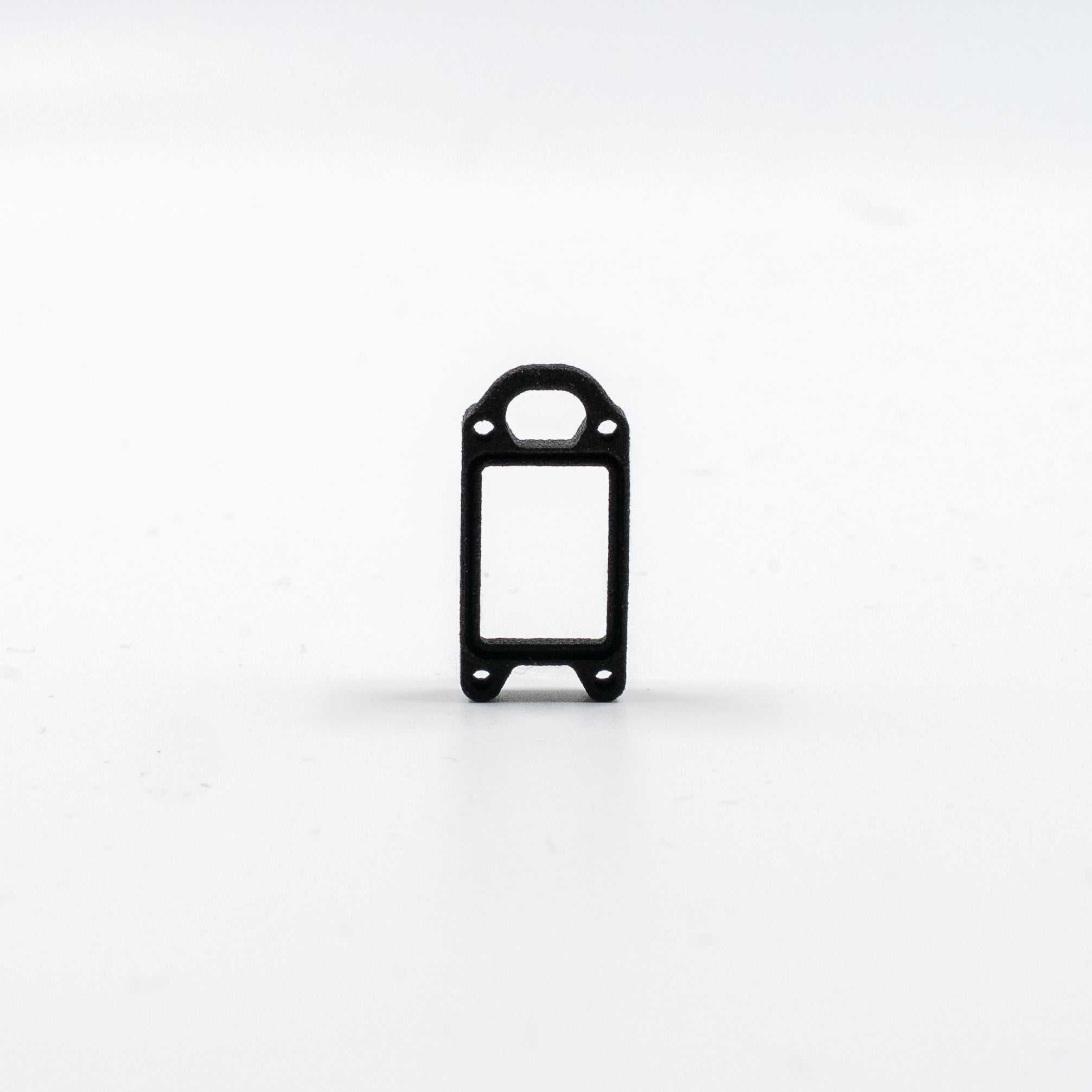

• Spacer for the RENV-C projection post (to center the image in the 1531 view)

• Lanyard with carabiner to retain the RENV-C

Enhanced FOF Kit Additionally Includes:

• HP Multi Jet Fusion Nylon manufactured housing with protective shroud for the projection arm

• 5mm thick Germanium disc to protect RENV-C objective lens
• Dual transmission boosting wavelength specific anti reflective coatings for maximum transmission
• Soft O-ring between objective lens and sacrificial lens to dampen impact forces as well as reduce chance of water ingress behind lens
• Replacement TPU lens cover to fit over the MJF housing


Please note that Germanium is brittle, and may not stand up to multiple hits. This is a sacrificial lens only, however it has been impact tested for both Force on Force simunition and airsoft.

Our eCOTI protector shot with Speer Force on Force 5.56 ammunition from a 10.4" HK416 at point blank:

With the marking material cleaned off, the Germanium disc is mostly intact but with a chip in the top corner.

Note that the standard RENV-C Force on Force Shield will NOT fit the 1531 version due to the increased arm height.

We do not recommend home installation of this product due to the technical nature of the modification required.

Origin:
Mounting ring designed and manufactured in Canada
MJF Spacer manufactured in USA
