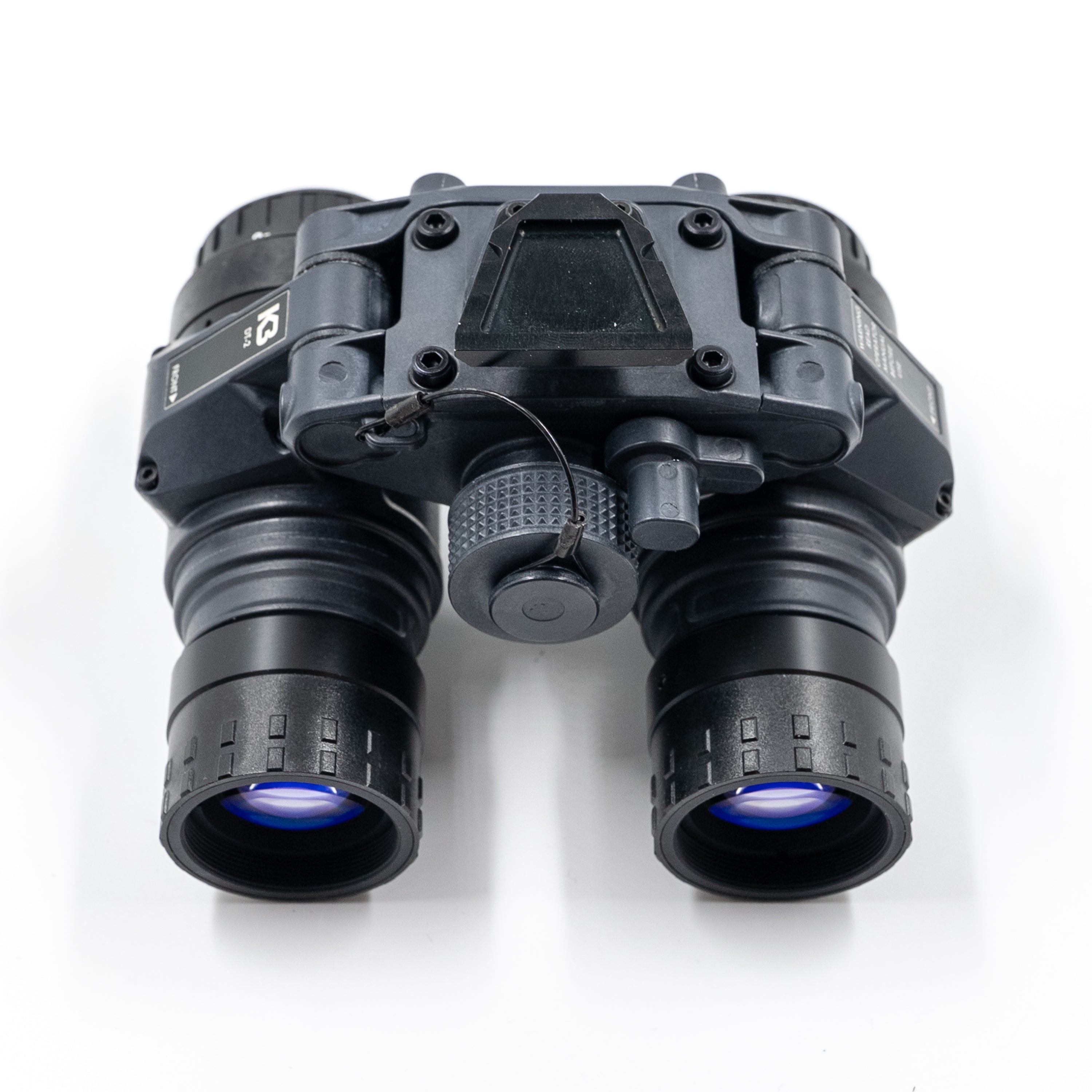

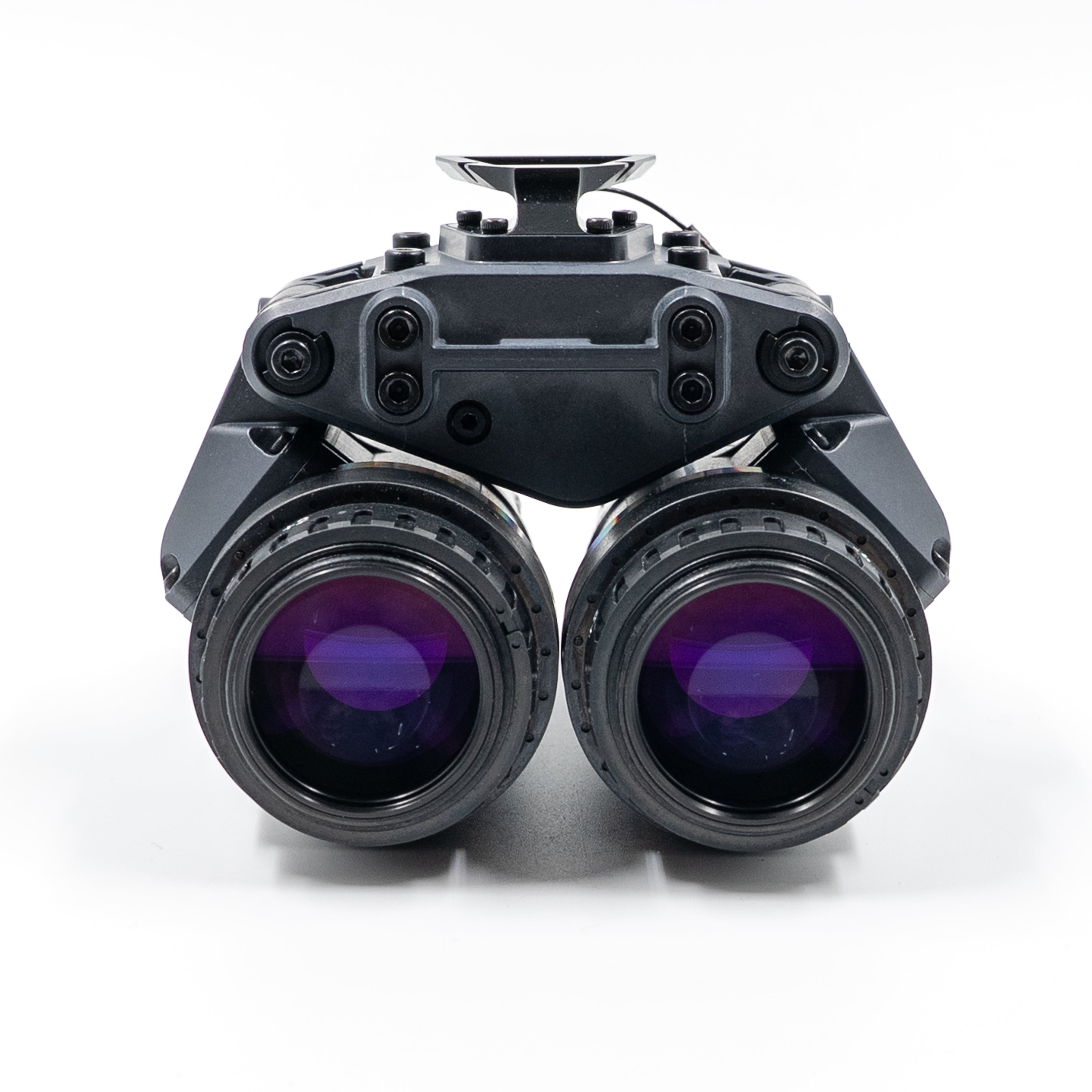

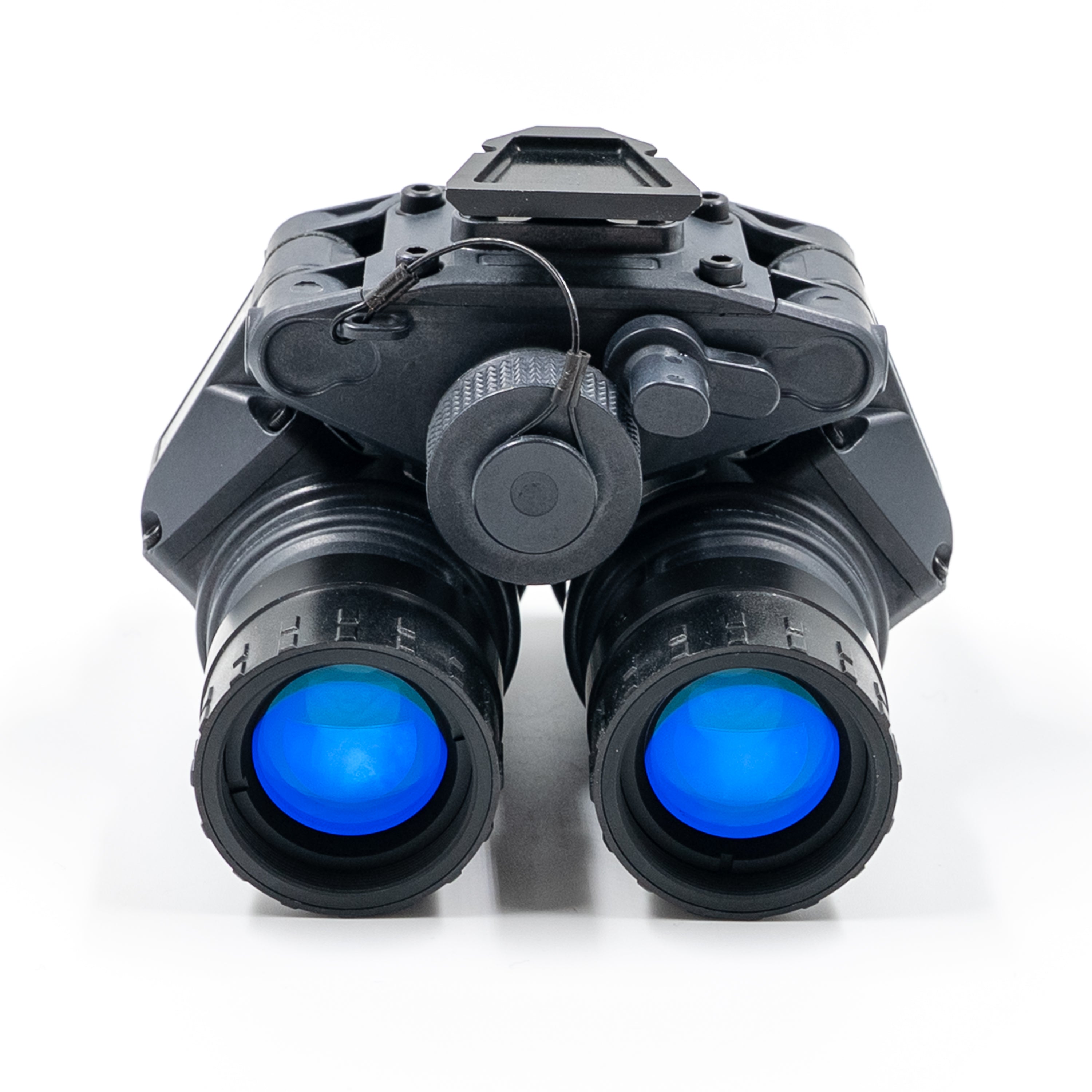

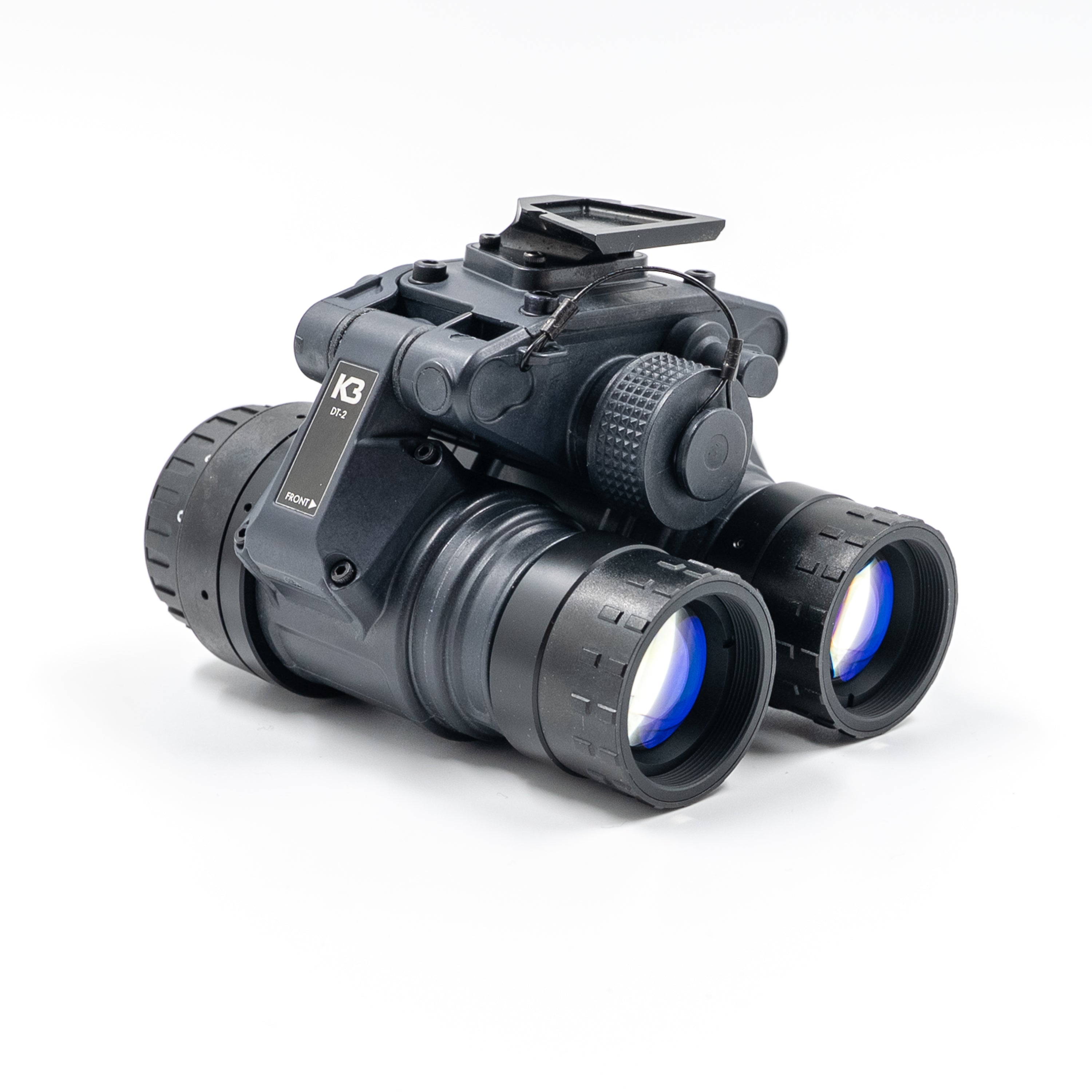

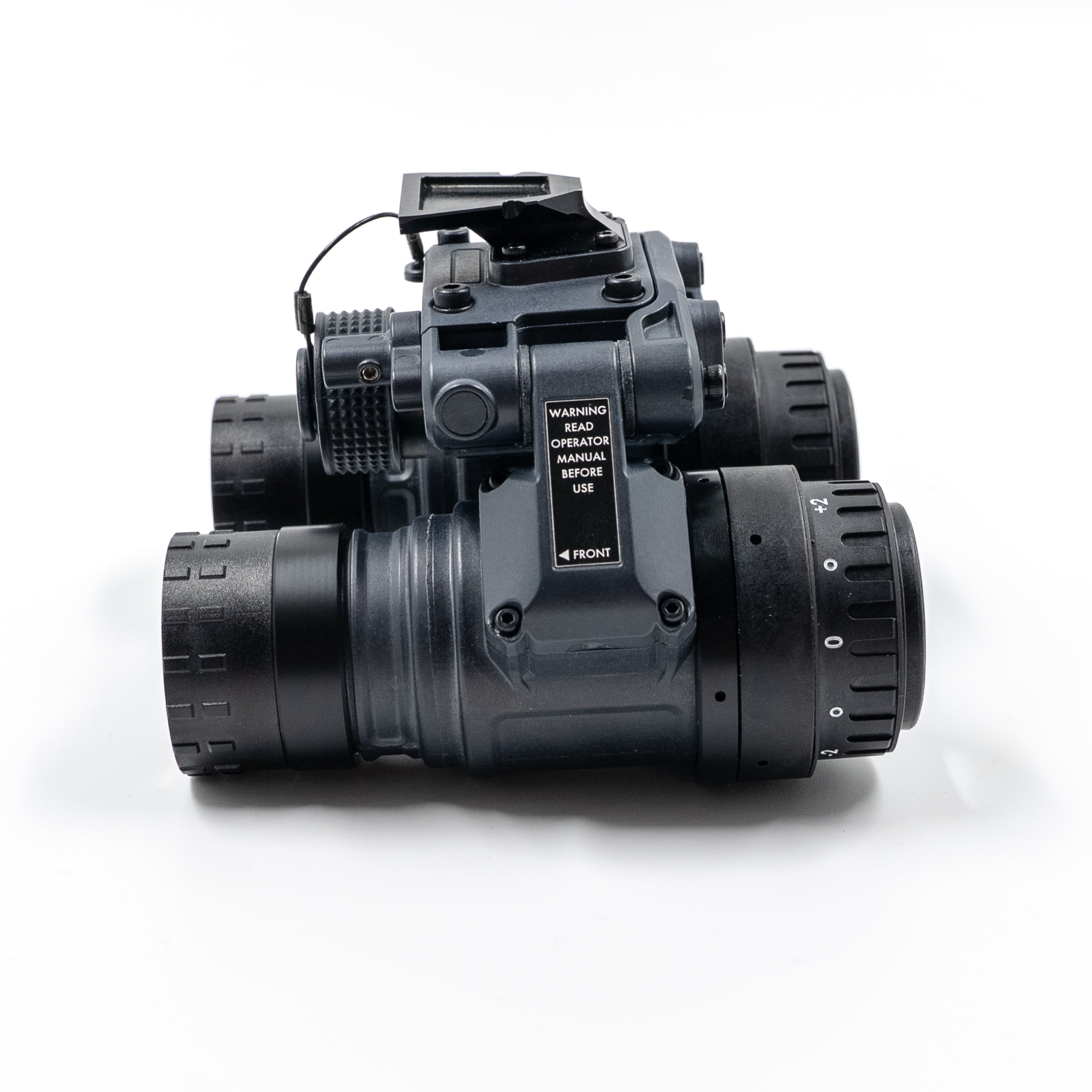

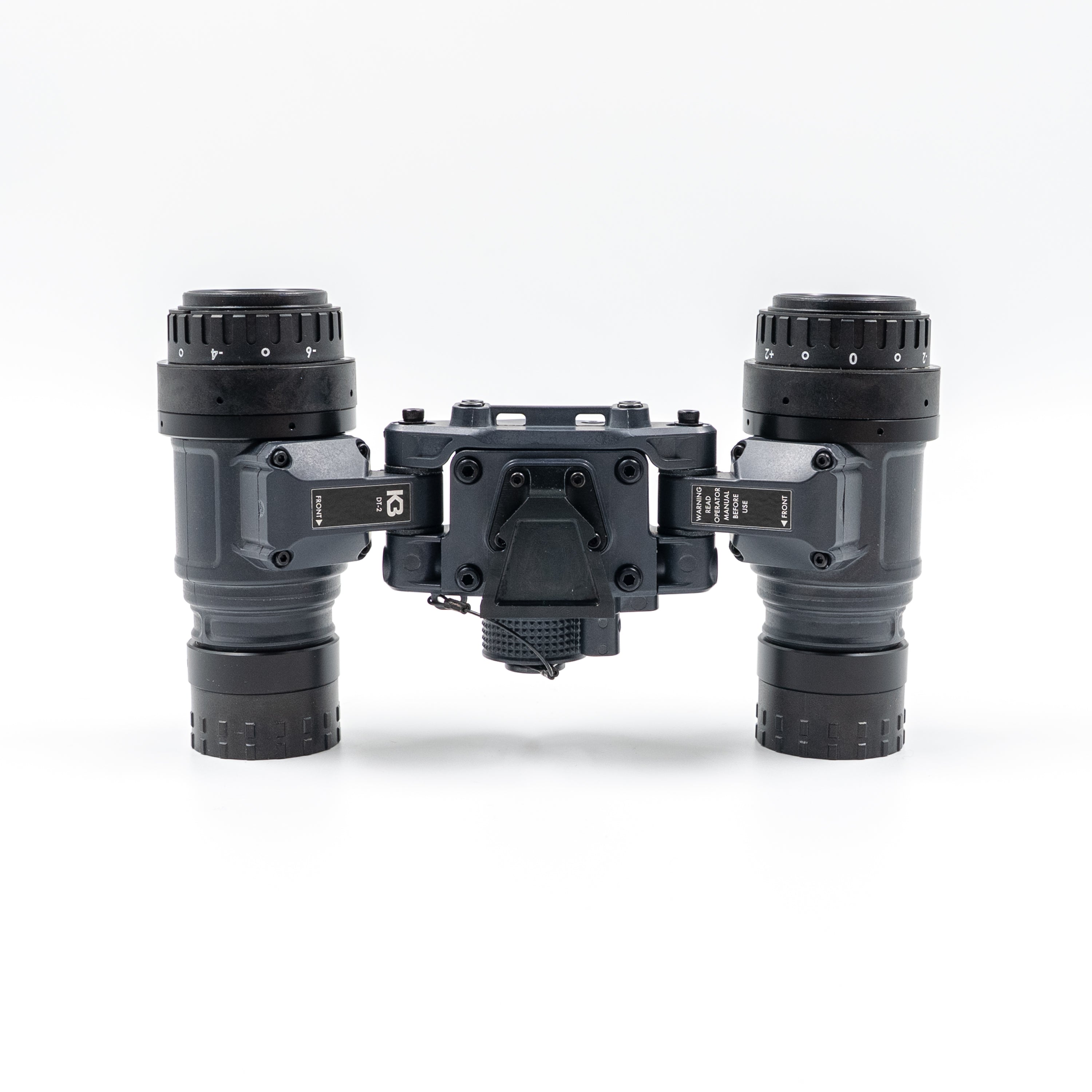

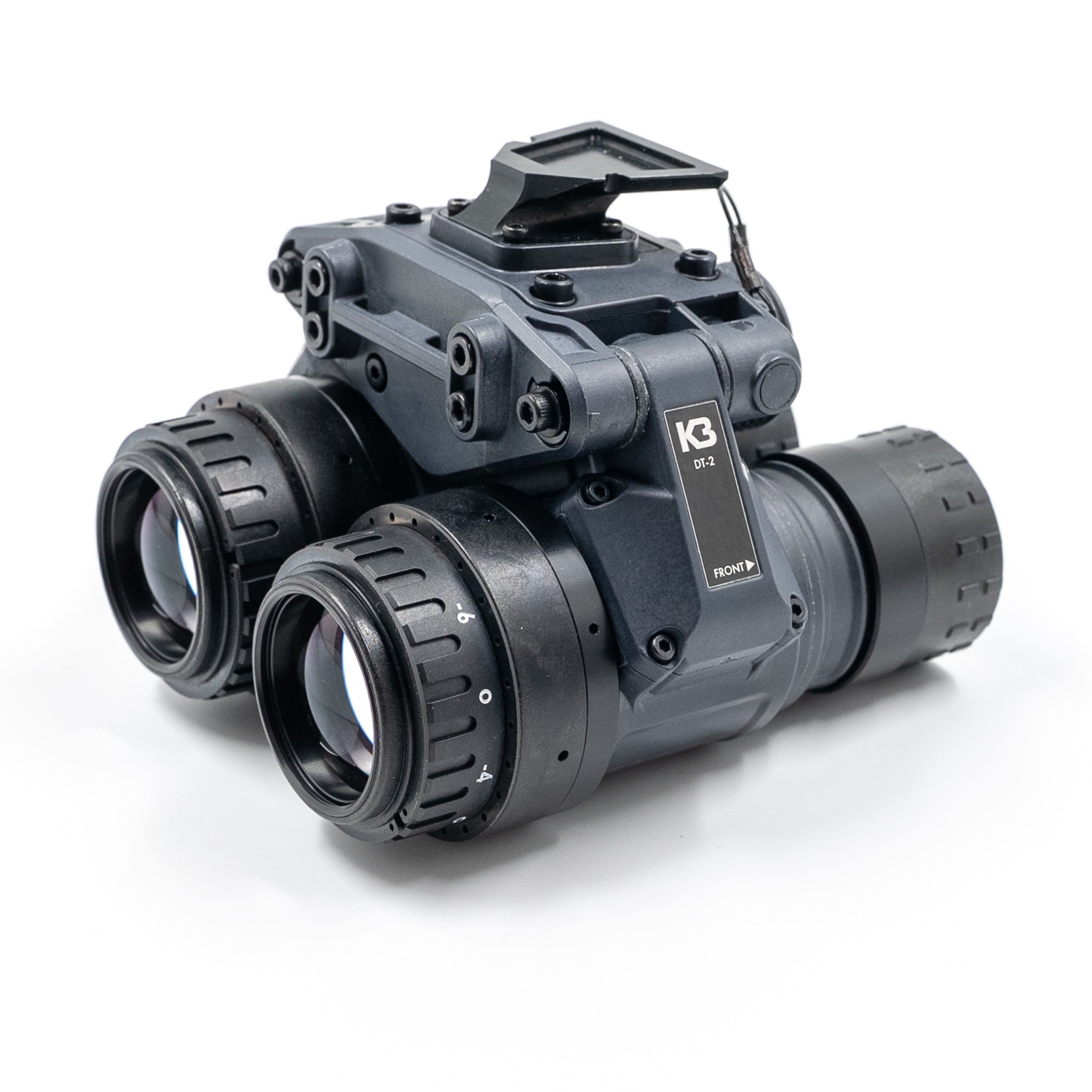

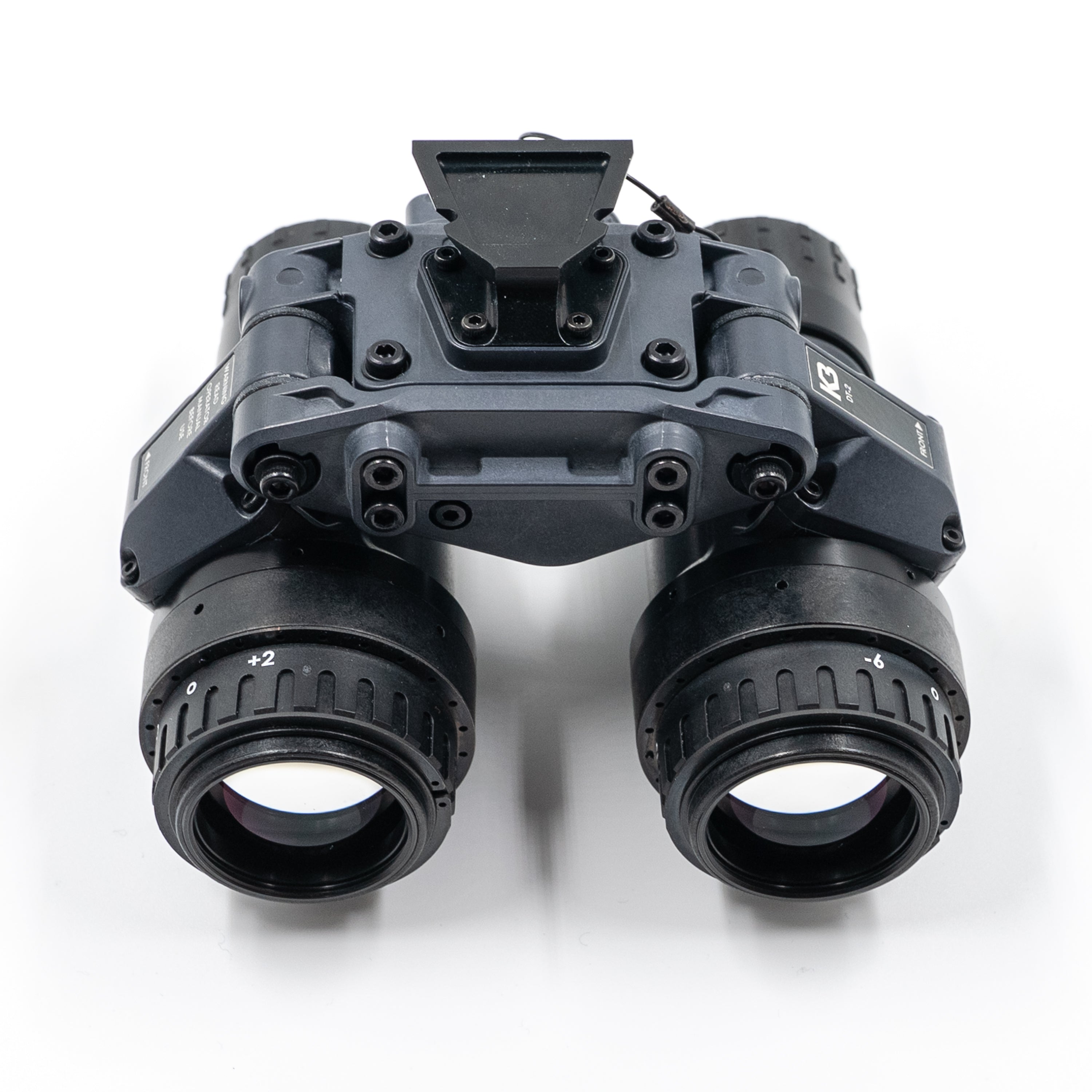

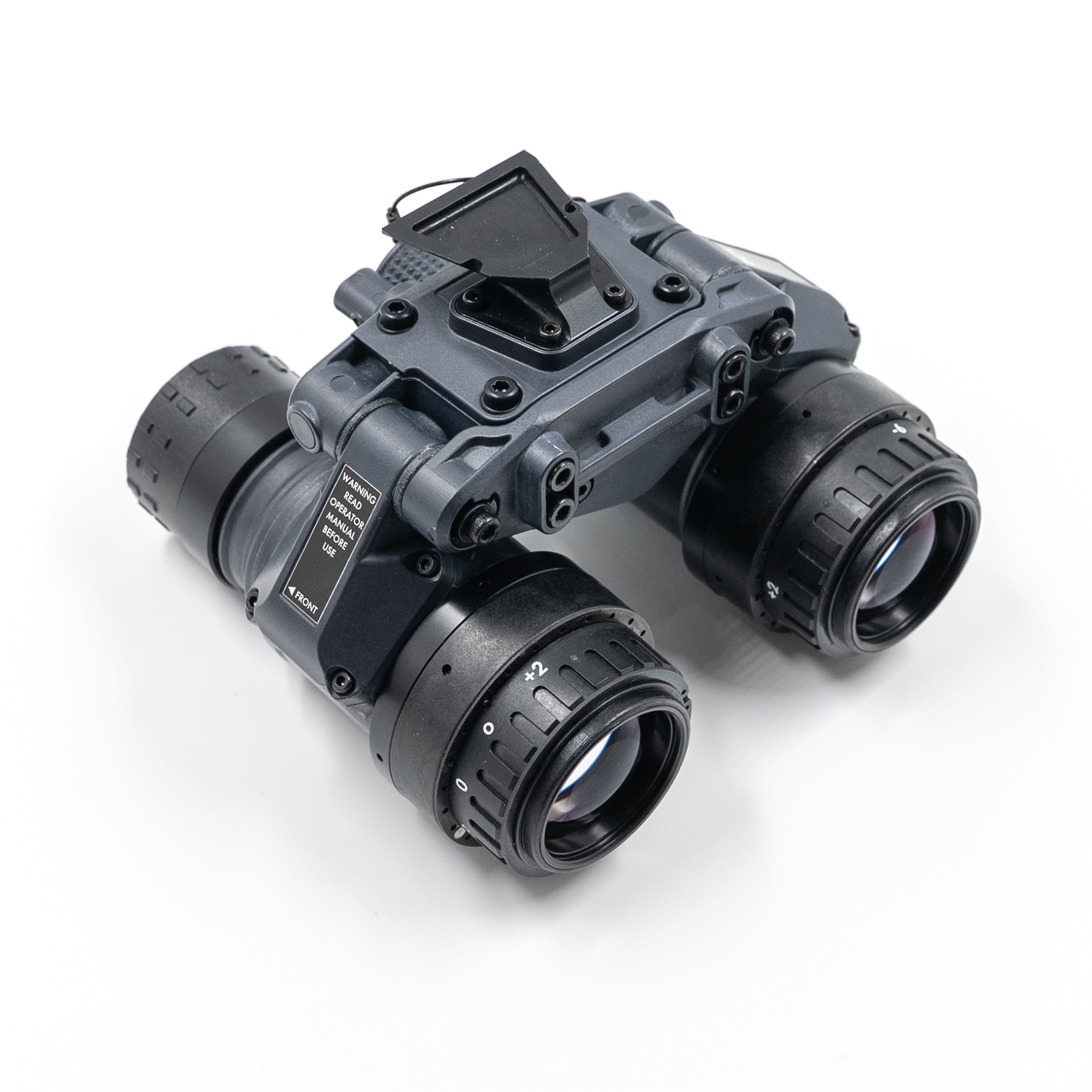

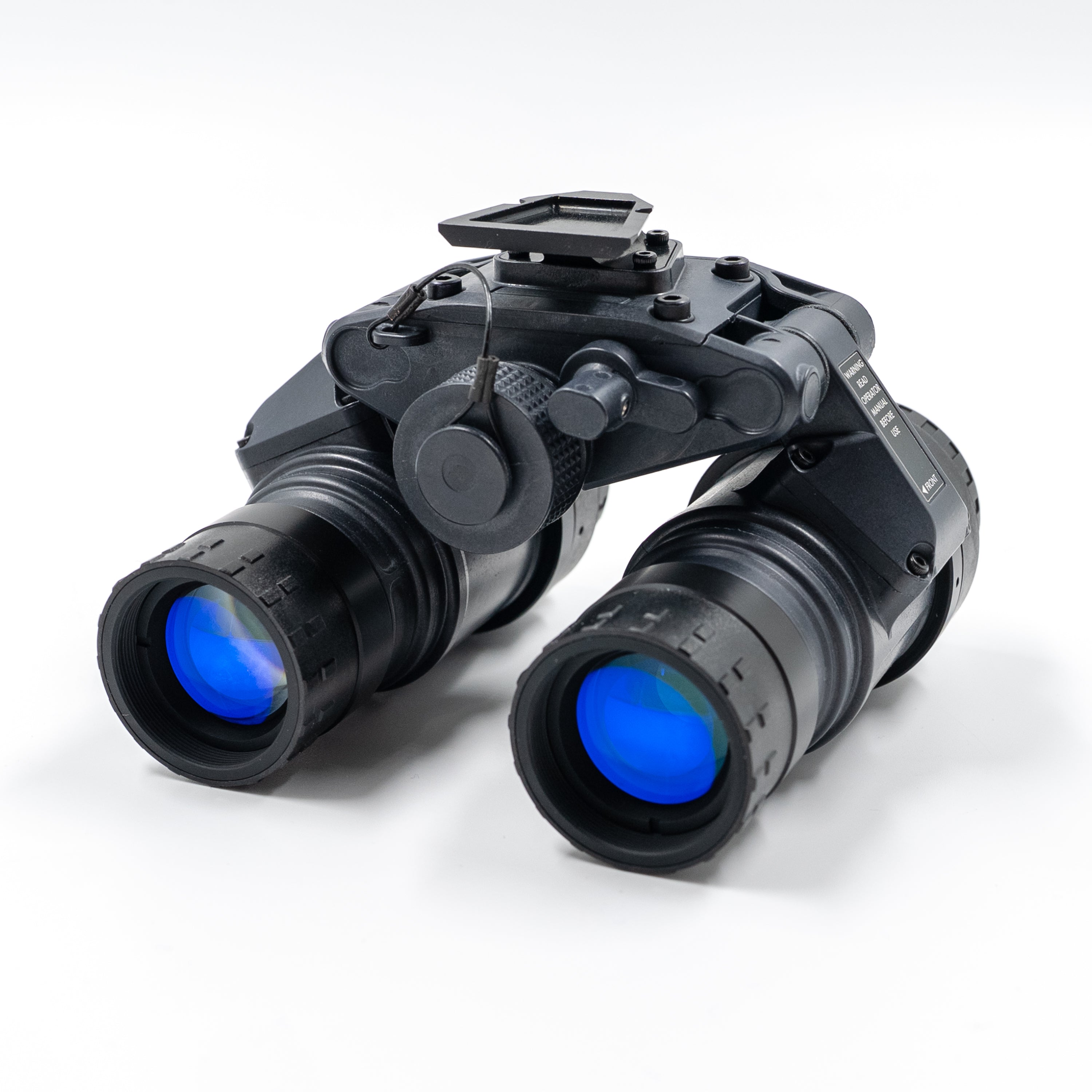

KB DT-2 Nightvision Binocular
Description
The Kauffmann-Bremin DT-2 is the newest housing from the original designer of the DTNVG. This straight forward, polymer-based housing and is perfect for end-users who were a fan of the DTNVG or looking for a unique, no-frills, easy to use, light-weight articulating bino.
The DT-2 uses a simple two position switch that provides reliable and straight-forward power controls and a low profile friction based IPD design to maintain optimal pod position in front of your eyes. Auto pod shut-off on articulation and auto-off on stow help prevent damage from light sources when the goggle is not in use.
Design improvements from the DTNVG have created a housing that is better for builders and hobbyists alike, and provides greater serviceability.
User Manual available HERE
Tech Specs:
| Battery Type: | 1x CR123 |
| Battery Life: | 25hrs @ 18°C (65°F) |
| Remote Power: | No |
| Auto-Off On Stow: | Yes |
| Individual Pod Shut Off: | Yes |
| Interpupillary Stop: | Yes - Friction Based |
| IR Illuminator: | No |
| Manual Gain: | No |
| Weight with Noctis PVS-14 Optics: | 557g |
| Operating Temperature: | -30°C to 50°C |
| Storage Temperature: | -50°C to 70°C |
| Water Immersion: | 18 meters for 2 hours |
| Low Battery Indicator: | Yes - Approximately 30 Minutes |
We offer premium quality lenses with our systems from US Milspec vendors. Lenses are very important when it comes to image quality, and while lower quality lenses are still useable, lower quality lenses will result in lower perceived resolution, and higher perceived image distortion.
Read more about our lens lineup HERE
Our nightvision devices are custom built to your specifications. We build our devices inside our positive pressure clean room fitted with dual filtration blowers that meet ISO5 clean room specifications. Our devices are calibrated and tested using our Hoffman ANV-126A and HVS-126 Digital Night Vision Test Equipment, and vacuum tested and Argon purged using our digital purge machine. Please allow up to one week for assembly, calibration, and testing prior to shipment.
Origin:
Housing Components Made in Europe
Lenses Manufactured in USA or TAA Compliant Countries
Image Intensifiers Manufactured in France/Netherlands (Photonis) or China (NNVT)
Assembly, Final Testing and Quality Control done in Canada
Our nightvision devices are custom built to your specifications. Please allow up to one week for assembly, calibration, and testing prior to shipment.
KB DT-2 Nightvision Binocular
Premium lens systems
Image intensifiers
NNVT and Photonis
Nightvision Built in Canada
Precision through Process
Our devices are assembled in a positive pressure clean room utilizing HEPA certified filters and strict circulation standards to ensure a dust free assembly environment. Our blowers for cleaning optical components use compressed, double filtered 99.999% dry Nitrogen.
Calibration and collimation are performed using our Hoffman Engineering ANV-126A and HVS-126 Night Vision Digital Calibration System. Waterproofing and environmental resistance are vacuum tested followed by a multi phase Argon purge using our digital vacuum and purge test set.
We strive to bring the highest quality standards to our customers. Our night vision devices are built and assembled in our specialized facility in Aurora, Ontario.
