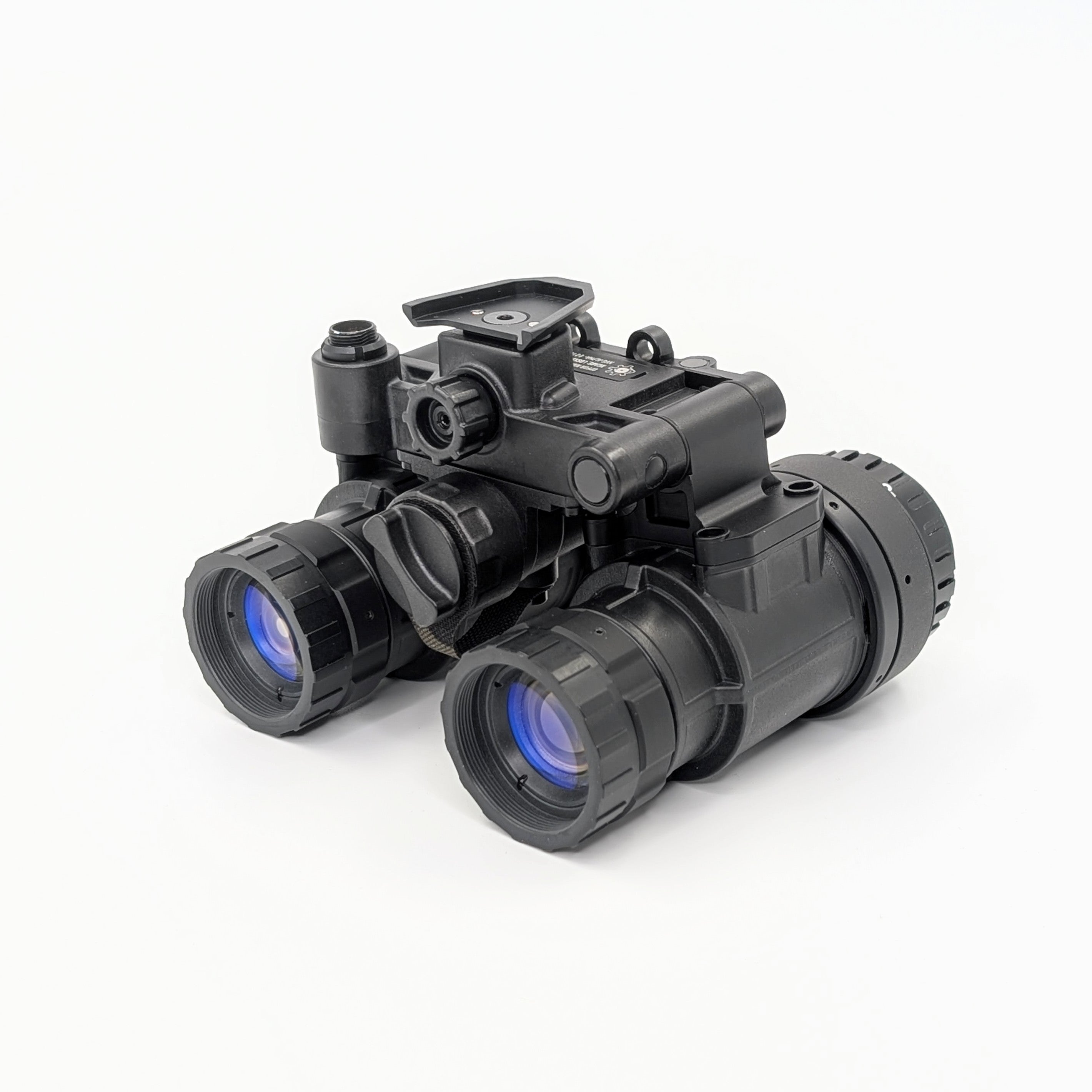

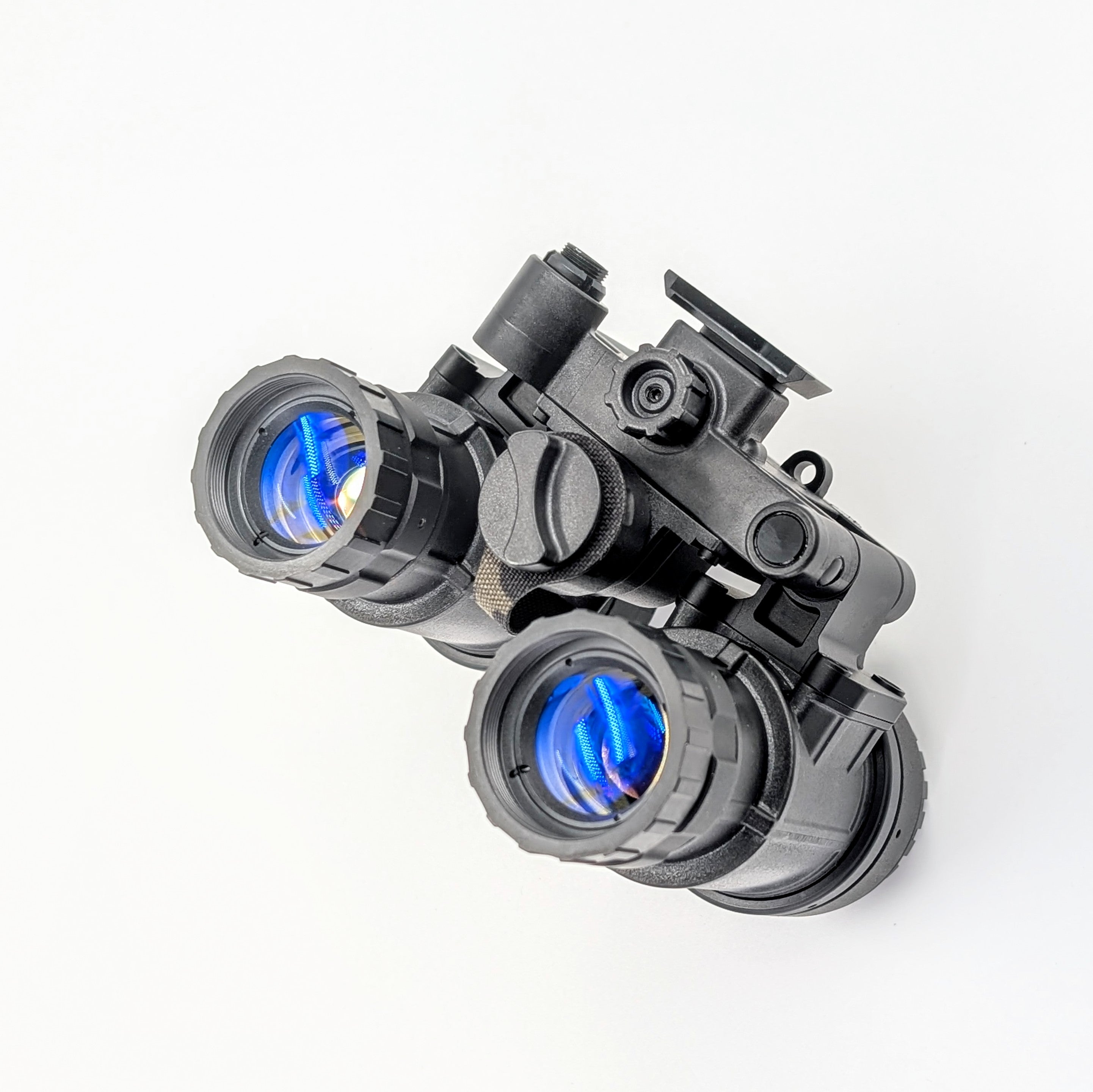

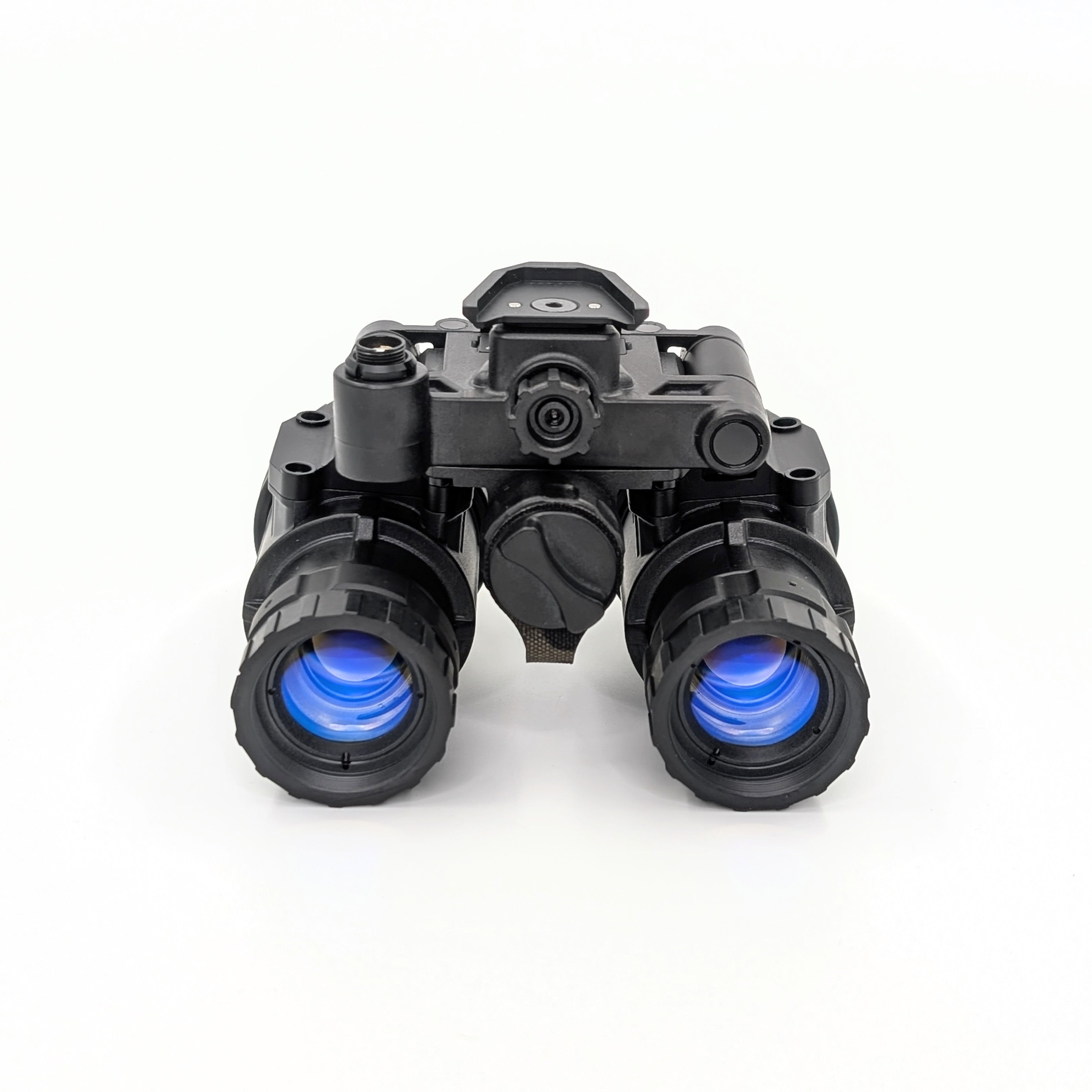

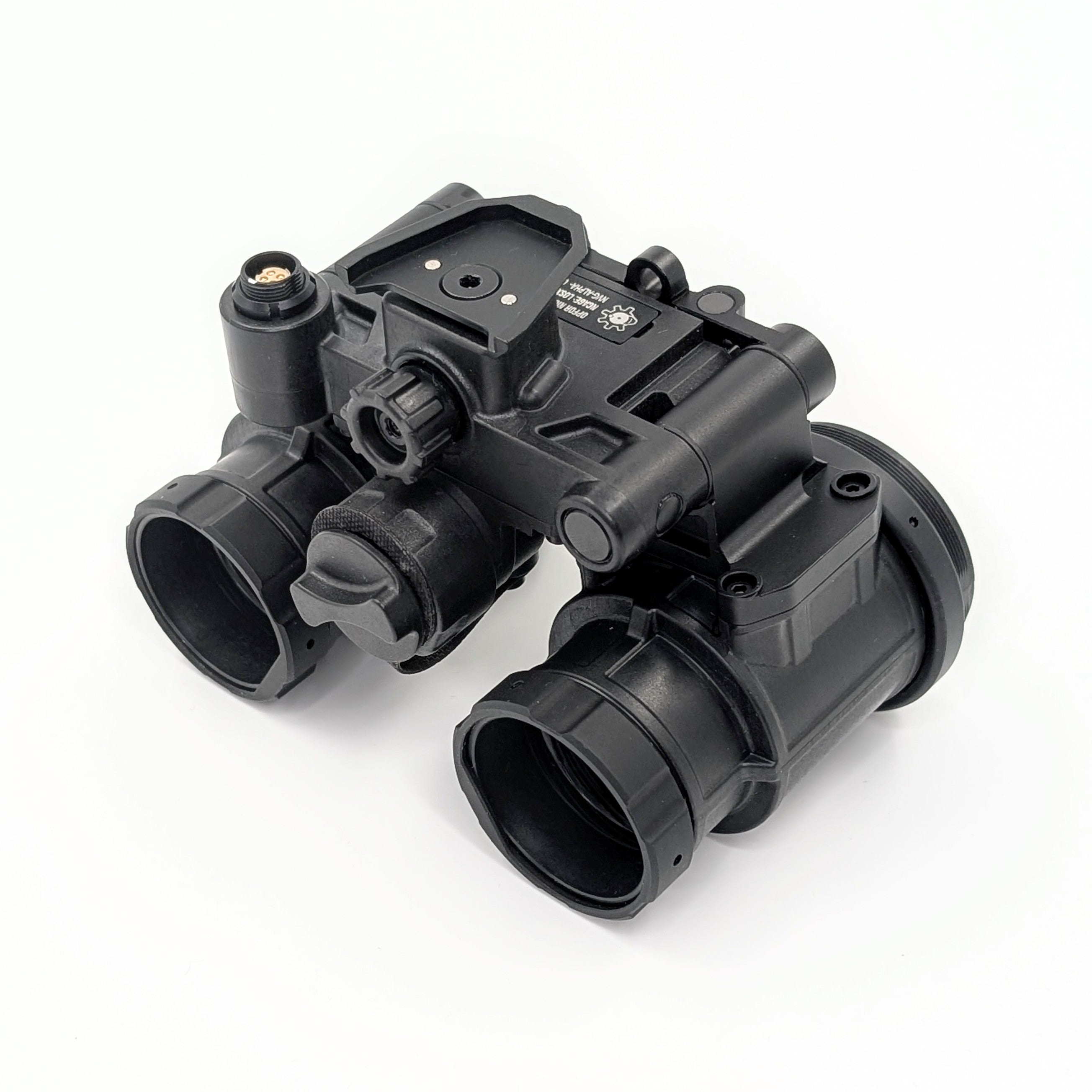

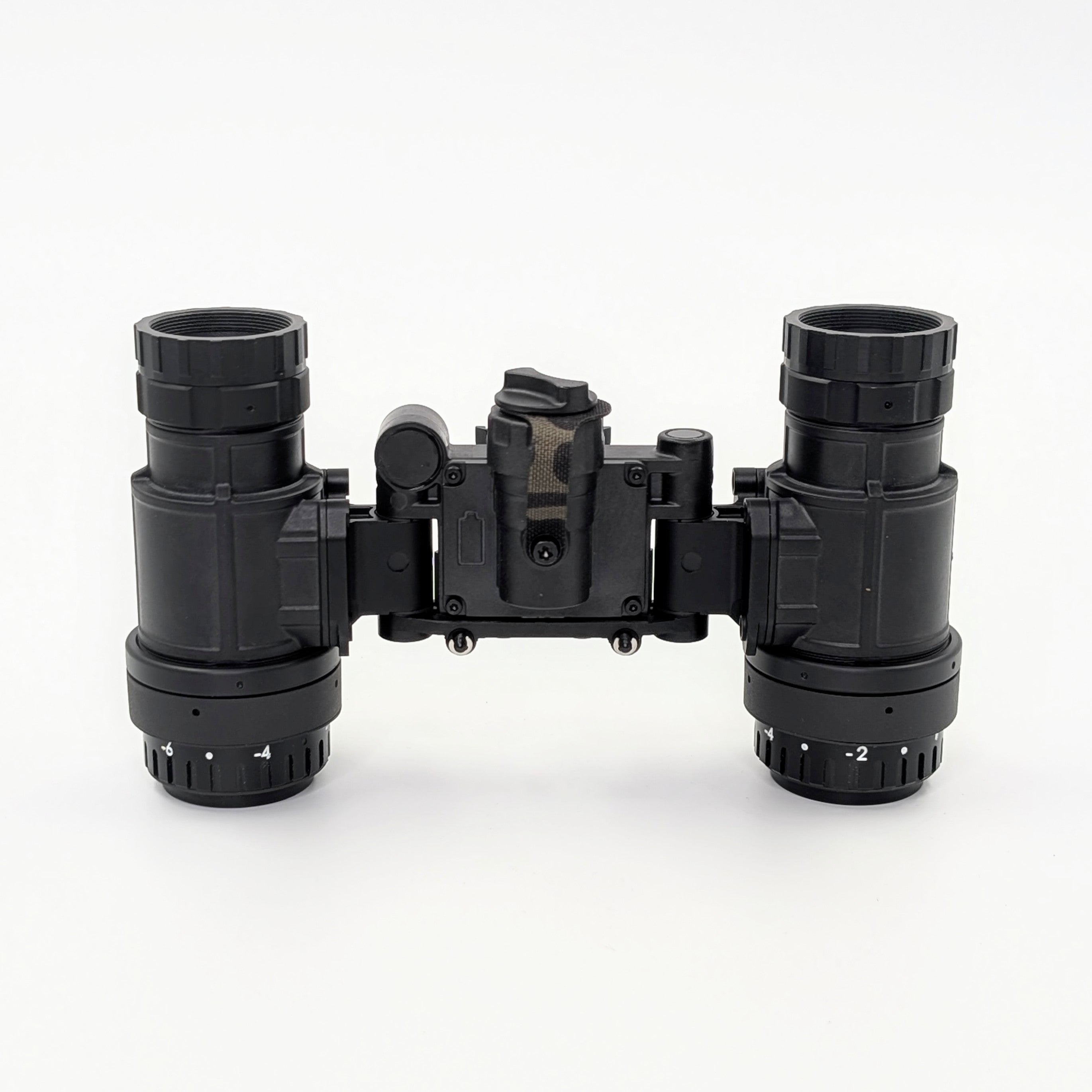

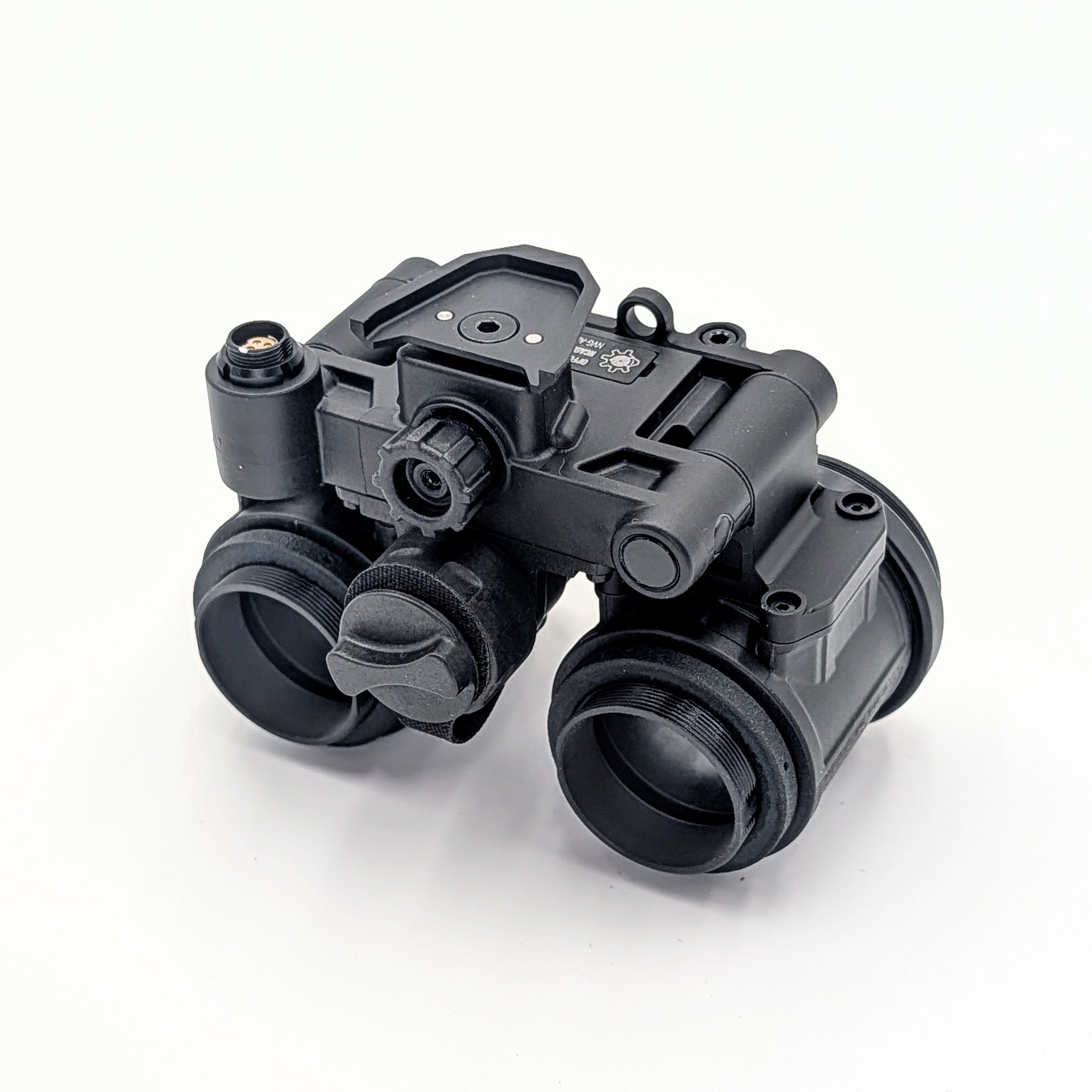

NVG-ALPHA Build Kit

Build Kit Includes:

• NVG-ALPHA Housing
• 2x Light Pipes
• 2x Tube Locking Rings
• 2x D-Collars with Set Screws
• Lenses (optional)
• Image Intensifiers are NOT Included but available separately, Click Here
• Assembly tools, lenses and other components available, Click Here

Key Features:

• Robust aluminum hinge design
• Variable gain with all Photonis tubes and some NNVT tubes
• Gain memory remembers gain settings even when turning device off and on
• Individual pod shutoff when articulated (feature can be toggled ON/OFF)
• Automatic shutoff when flipped past vertical (feature can be toggled ON/OFF)
• 2 minute idle shutoff mitigates damage from devices being left on when not in use (feature can be toggled ON/OFF)

• Intuitive and ruggedized interpupillary stop design redirects all impact forces inwards into a reinforced aluminum plate

• Powered by single CR123A battery
• Optional remote battery pack with external 4 pin Fischer port
  • Mount compatibility for remote power: Wilcox G24 Lite, Wilcox G69, Cadex Low Profile Flip Up, Argus A4

Specifications:

Construction: Polymer and Aluminum
Power: CR123A (~20 hours) or External Fischer
Operating Voltage: 1.2-5V
Operating Temperature: -51°C to +49°C
IR Illuminator: On Board
Manual Gain Control: Compatible with EGAC Pigtail, 3 Plate MX10160, 4 Plate MX10160
Weight: ~195g Housing Only, ~470g with RPO 3.0 Lenses and Lightweight Diopter, ~560g with BrightPath Solutions MIL40 Lenses, ~595g with Noctis/Fujinon Lenses
Shock/Drop Resistance: meets MIL-STD-810G Transit Drop
Water Immersion: meets IP68, 2 Meters for 1 Hour

Origin:
Housing Components Made in China
Assembled in Canada
