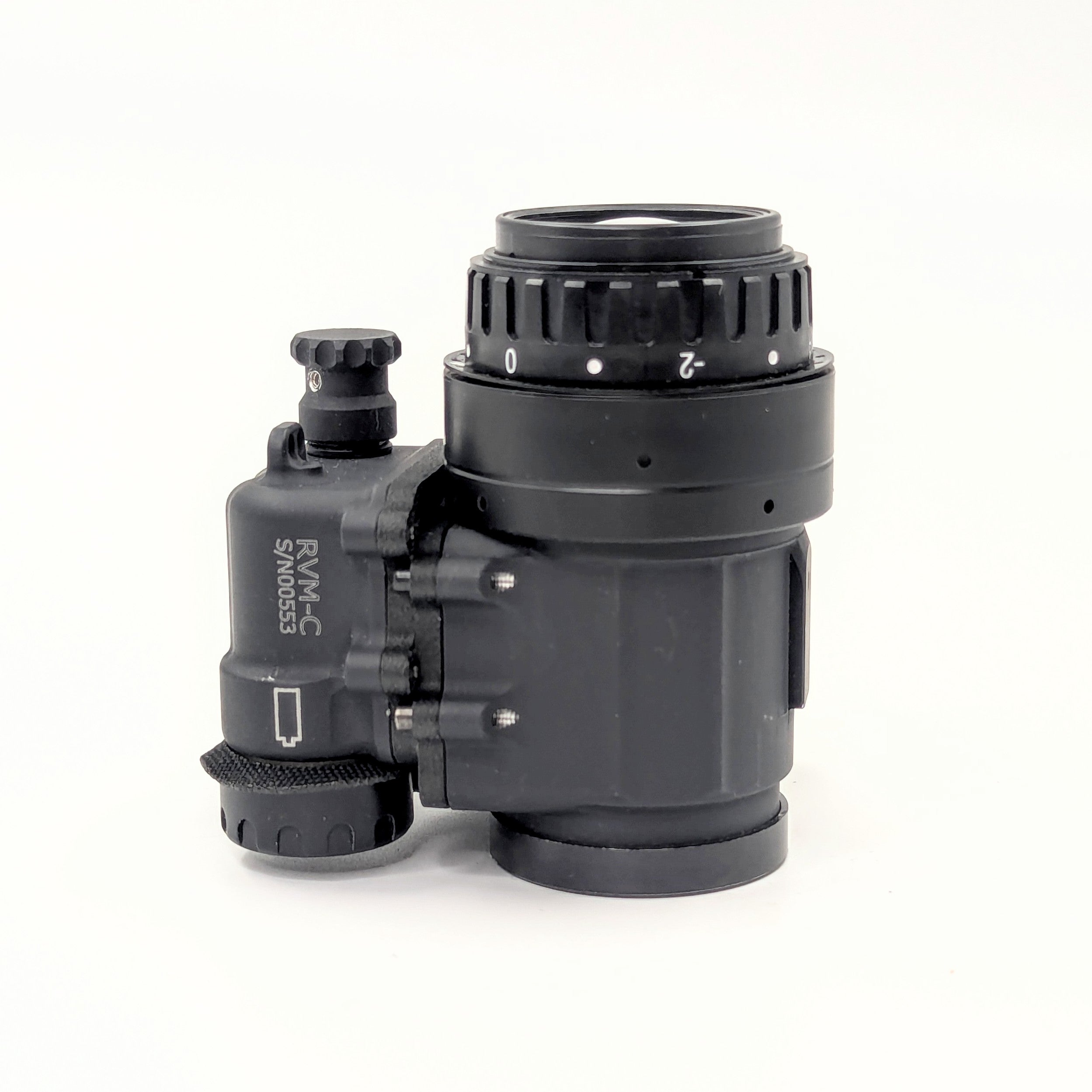

RVM-14 C Mount Astronomy/Observation Monocular

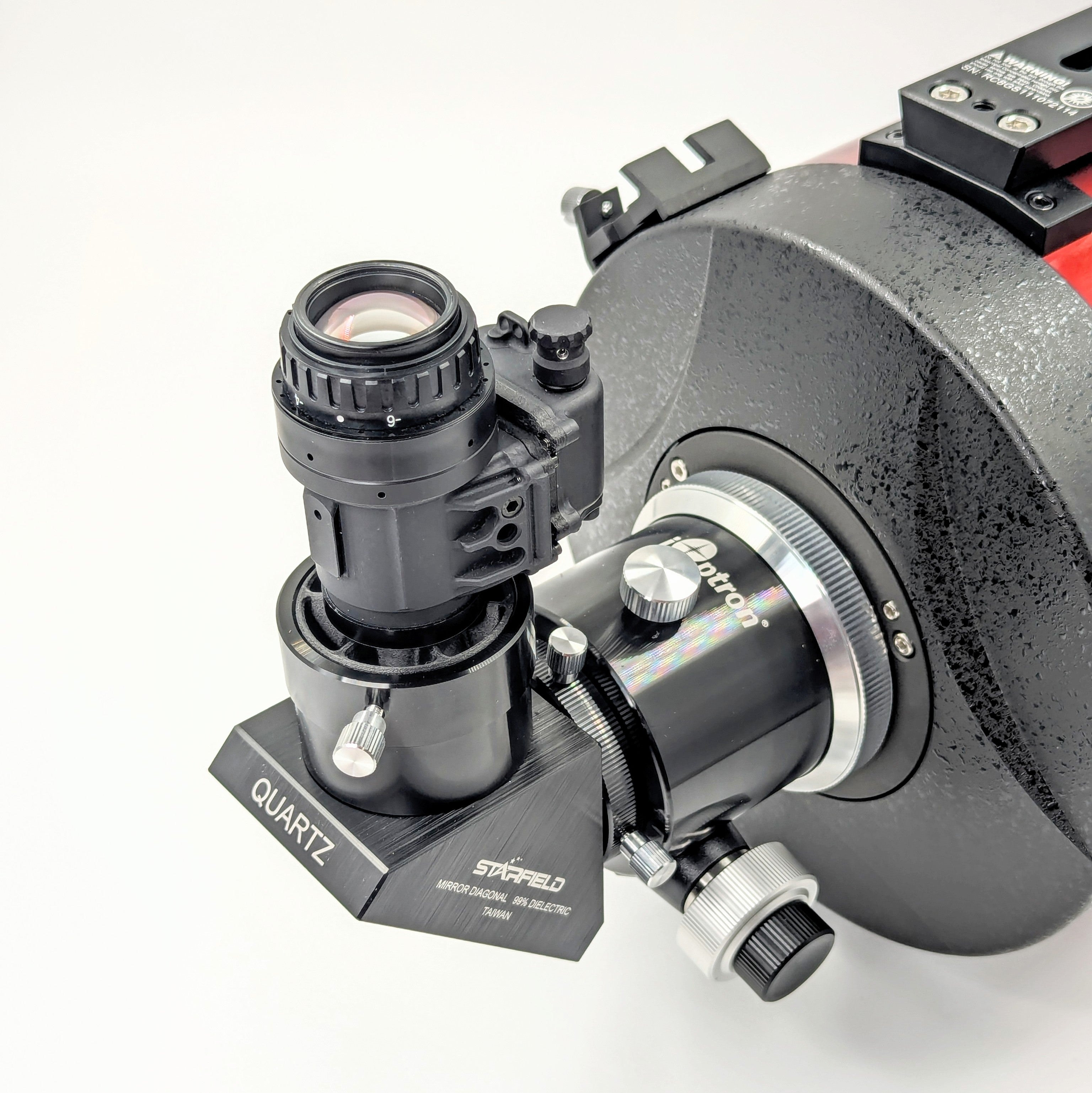

Our RVM-14 C Astro/Observation monocular allows the user to attach their own C-mount lens to achieve the desired field of view, or attach directly into a telescope using a barrel adapter. Our device is built with our own battery compartment relocation kit which moves the battery compartment back toward the eyepiece side, allowing the front side to clear the width of a telescope adapter or a wider C-Mount lens.

Build Features:

• Manual gain
• Battery compartment relocation kit installed
• Low profile battery cap included

RVM-14 C Base Features:

• Power Source: (1) CR123 Size Battery

• Operation Time: Approximately 75 Hours at Room Temperature

• IR Illuminator: Built In

• IR LED & LOW BATTERY INDICATORS: YES
• Manual gain
• OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND C MOUNT OBJECTIVE

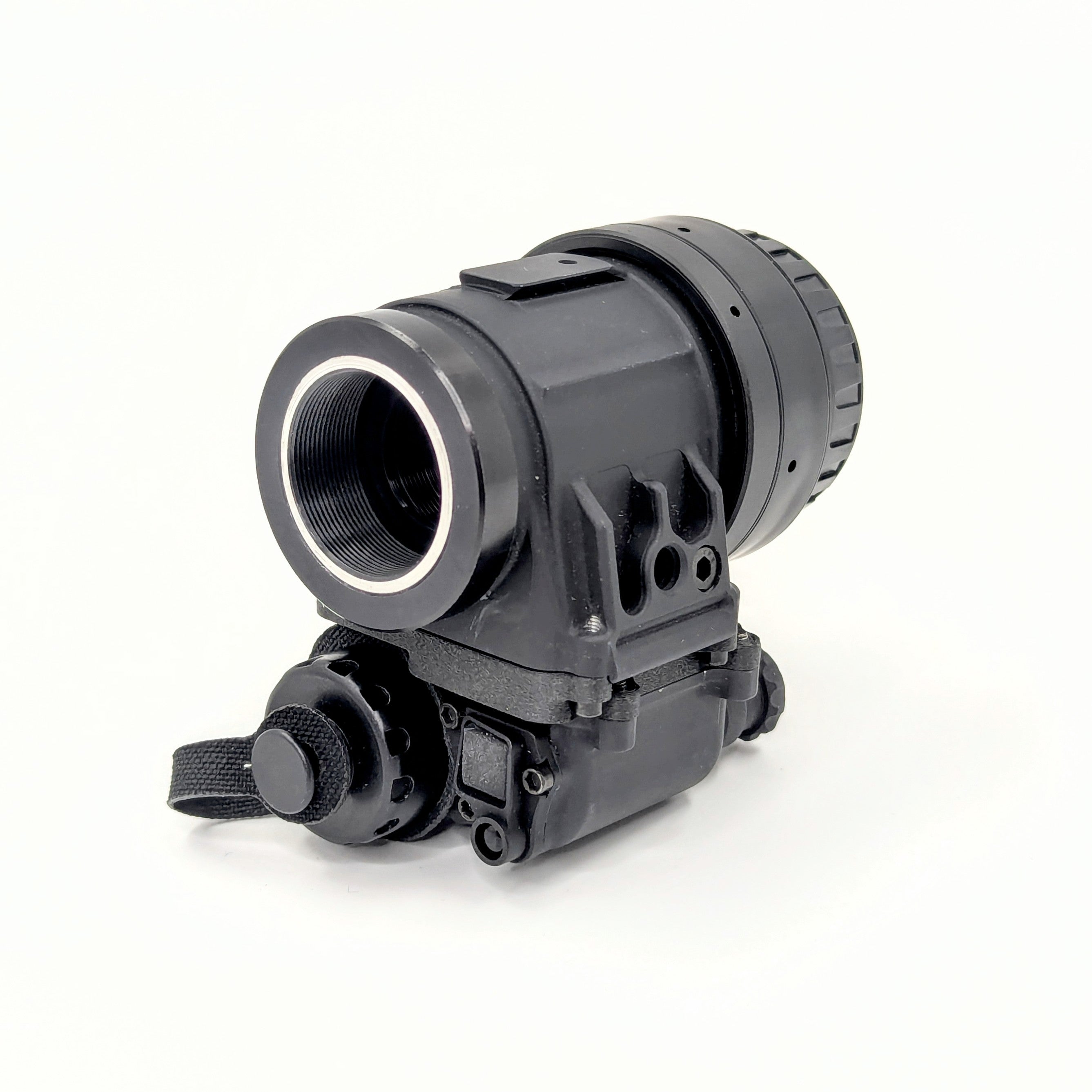

The RVM-14 monocular housing is billet machined from 7075 aircraft grade aluminum and designed to handle challenging real-world environments. The housing design accepts Milspec PVS-14 eyepieces and C mount objective lenses.

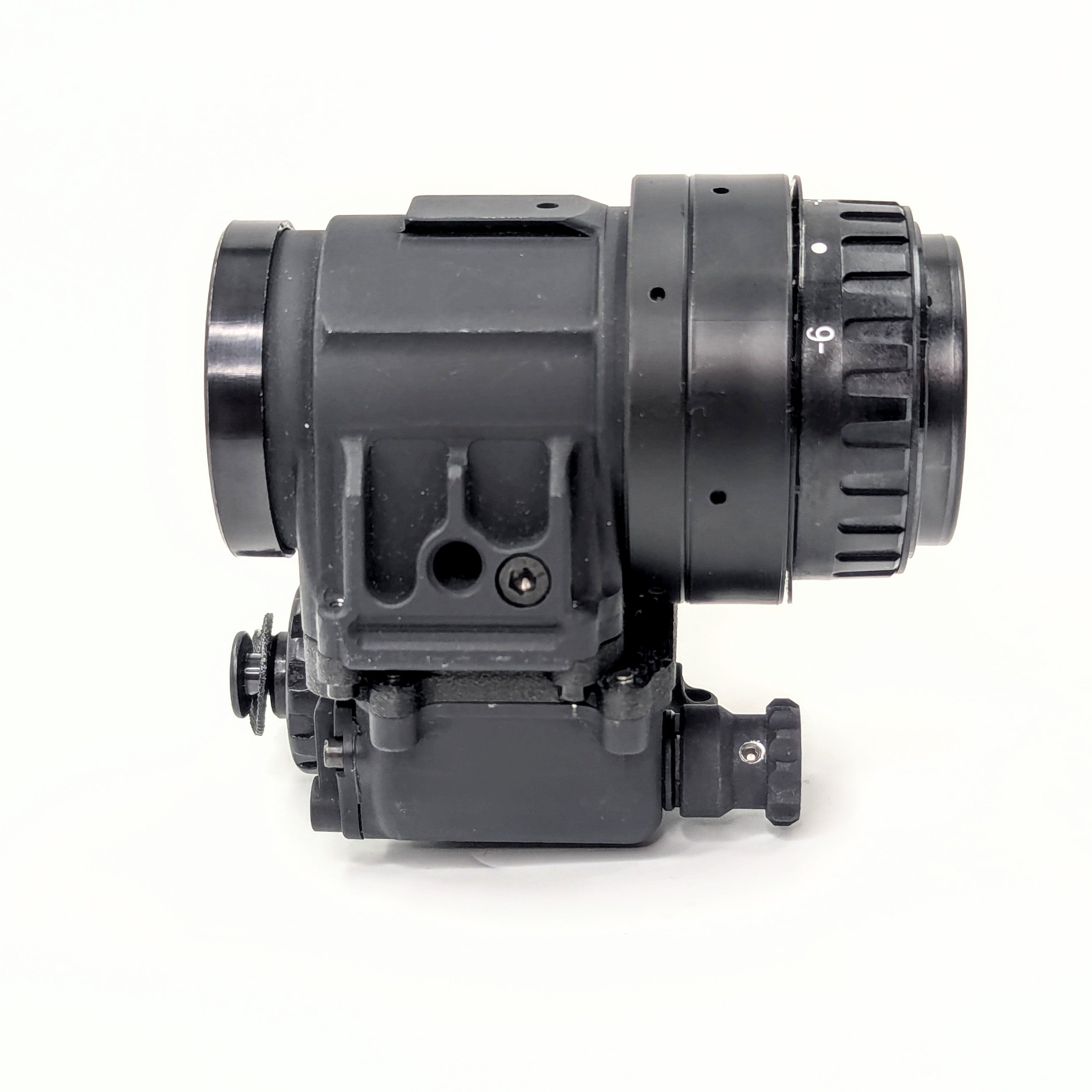

The monocular features a side mounting area to accept PVS-14 accessories and mounts with a standard ¼-20 thread. Two monos can also be attached to a bridge mount (RVM-14 Bridge) in a binocular configuration with the small dovetail incorporated into the top of the housing, or the dovetail can be used with the RVM-14 Arm for single mono use. Both the Arm and Bridge are articulating to lay back against the helmet when in the stowed position.

Warranty: 1 Year on Image Intensifier, 5 Years on Housing
