IRay/Infiray JerryC Clip On Thermal Imager (COTI) - C2/CE2/C5/CE5
Choose options
The JerryC family of thermal fusion optics produced by Infiray are image enhancements to your night vision device. It is intended to increase detection capabilities beyond what is normally capable with traditional image intensifier systems.

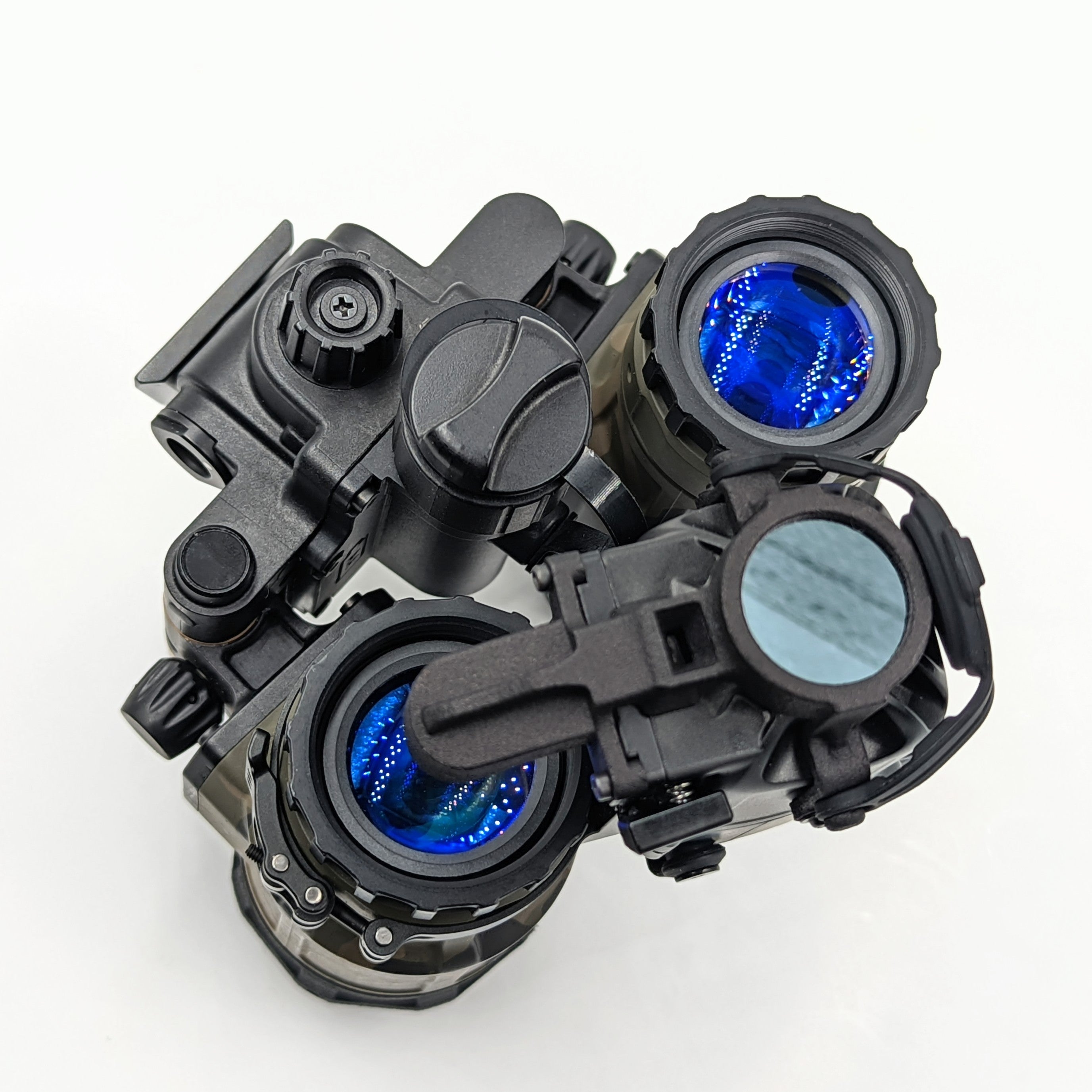

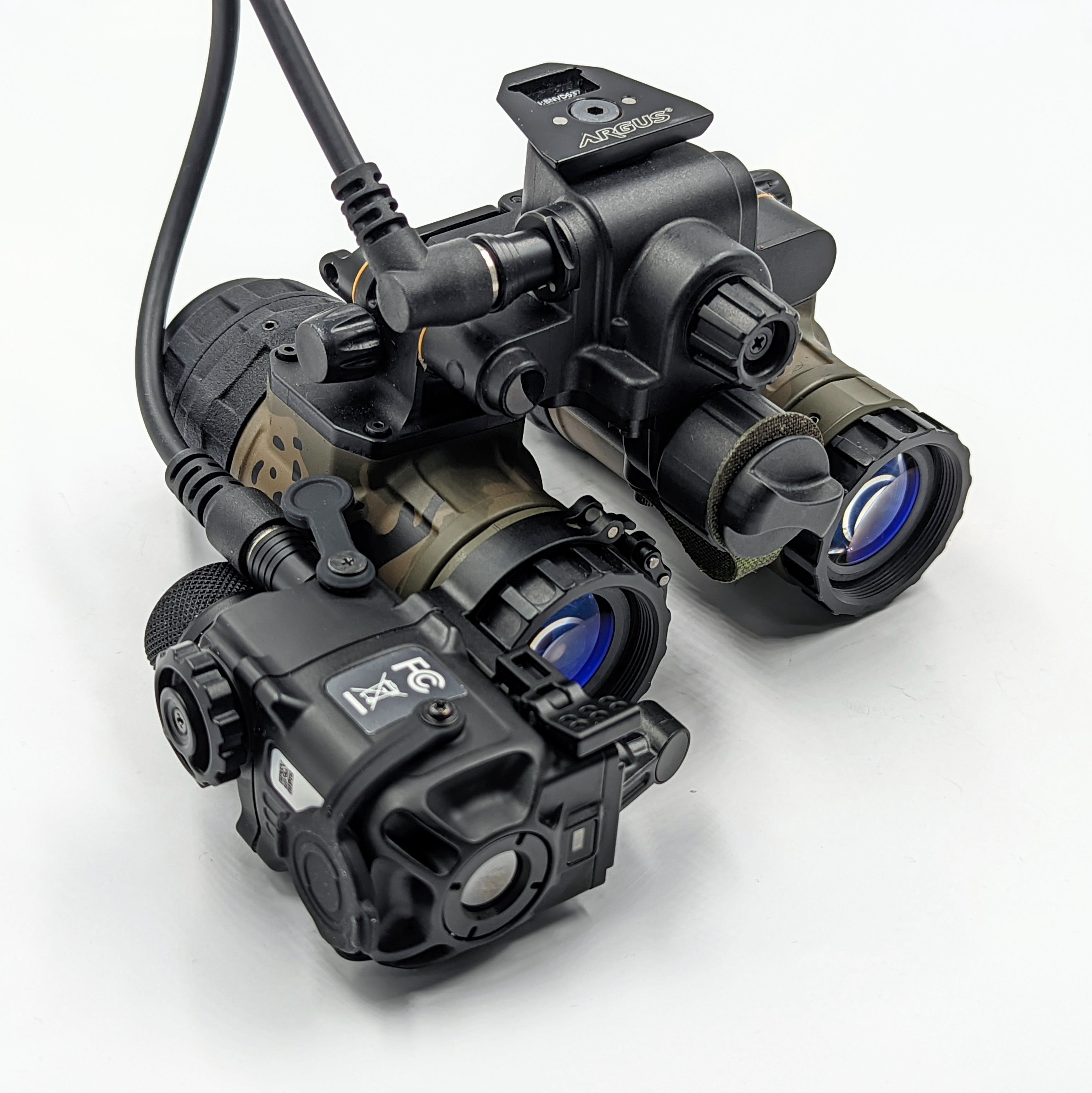

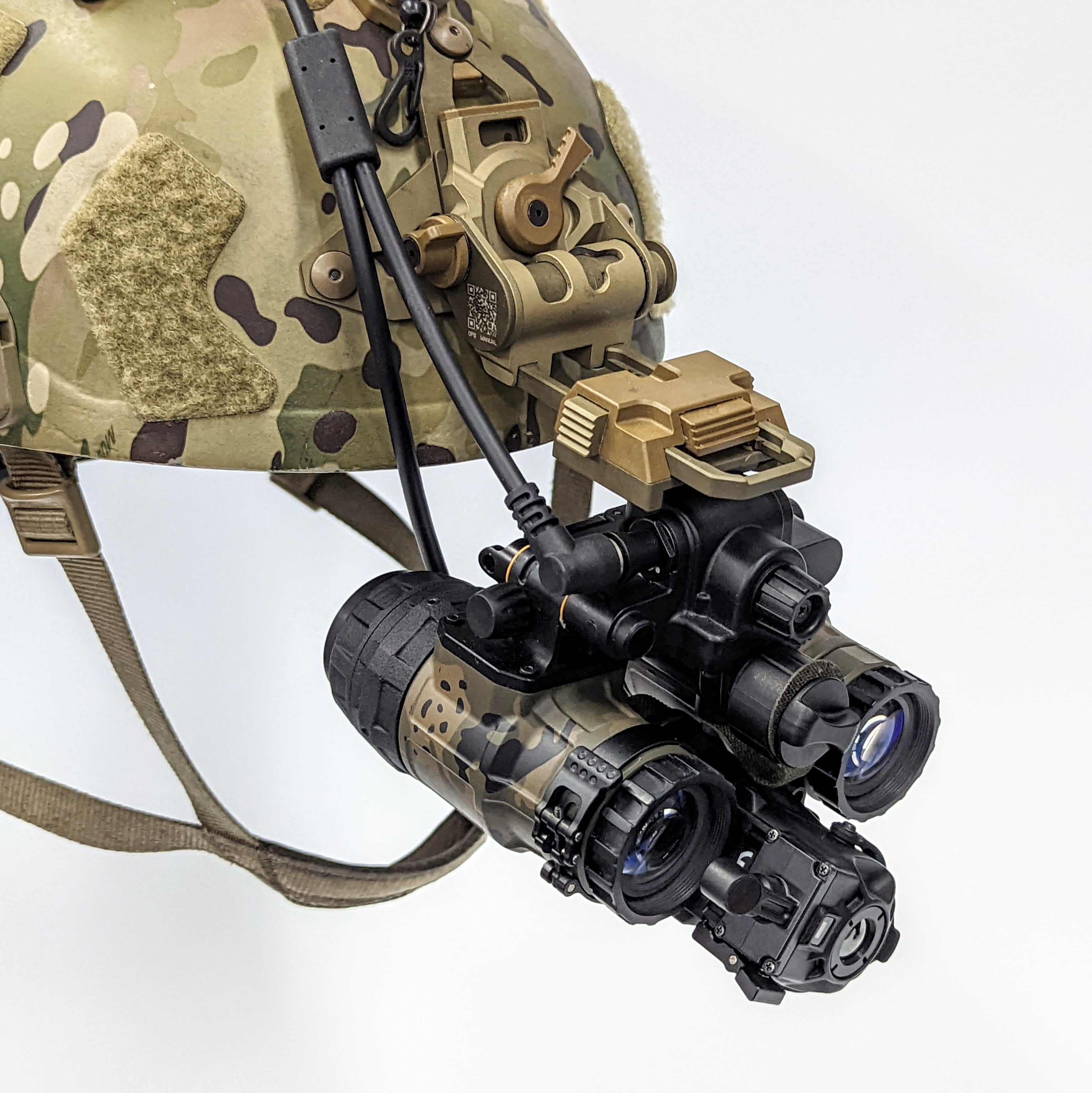

Shown here mounted on a BNVD-1431 Ultralight with a Force on Force Shield
The current version of the JerryC thermals uses software to allow for image alignment. It has three visual modes: Outline, Patrol, and Full Thermal.
Models:
| C2 | CE2 | C5 | CE5 | |
| Resolution | 384x288 | 384x288 | 640x512 | 640x512 |
| Field of View | 20° | 20° | 30.5° | 30.5° |
| Power Supply | Dual | External | Dual | External |

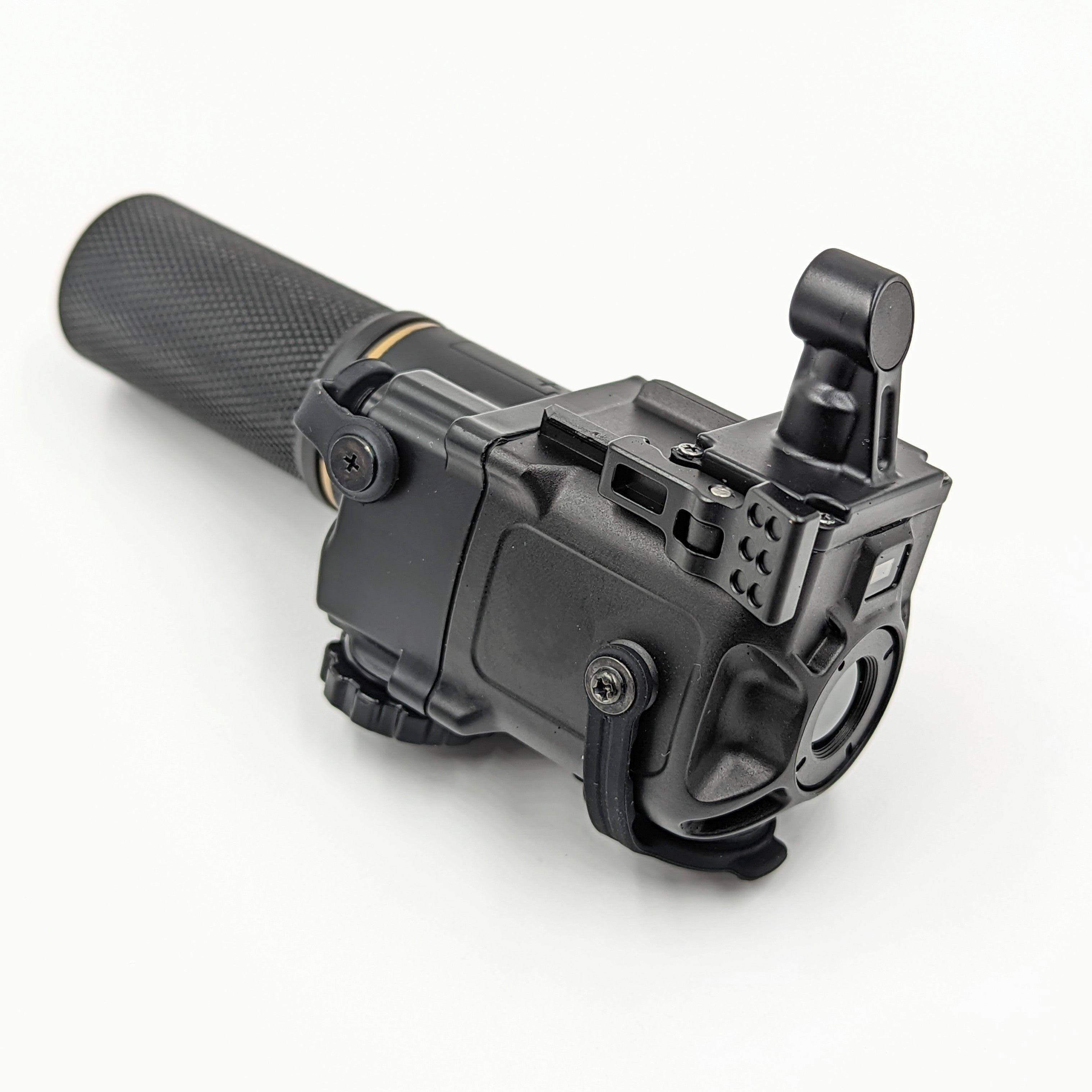

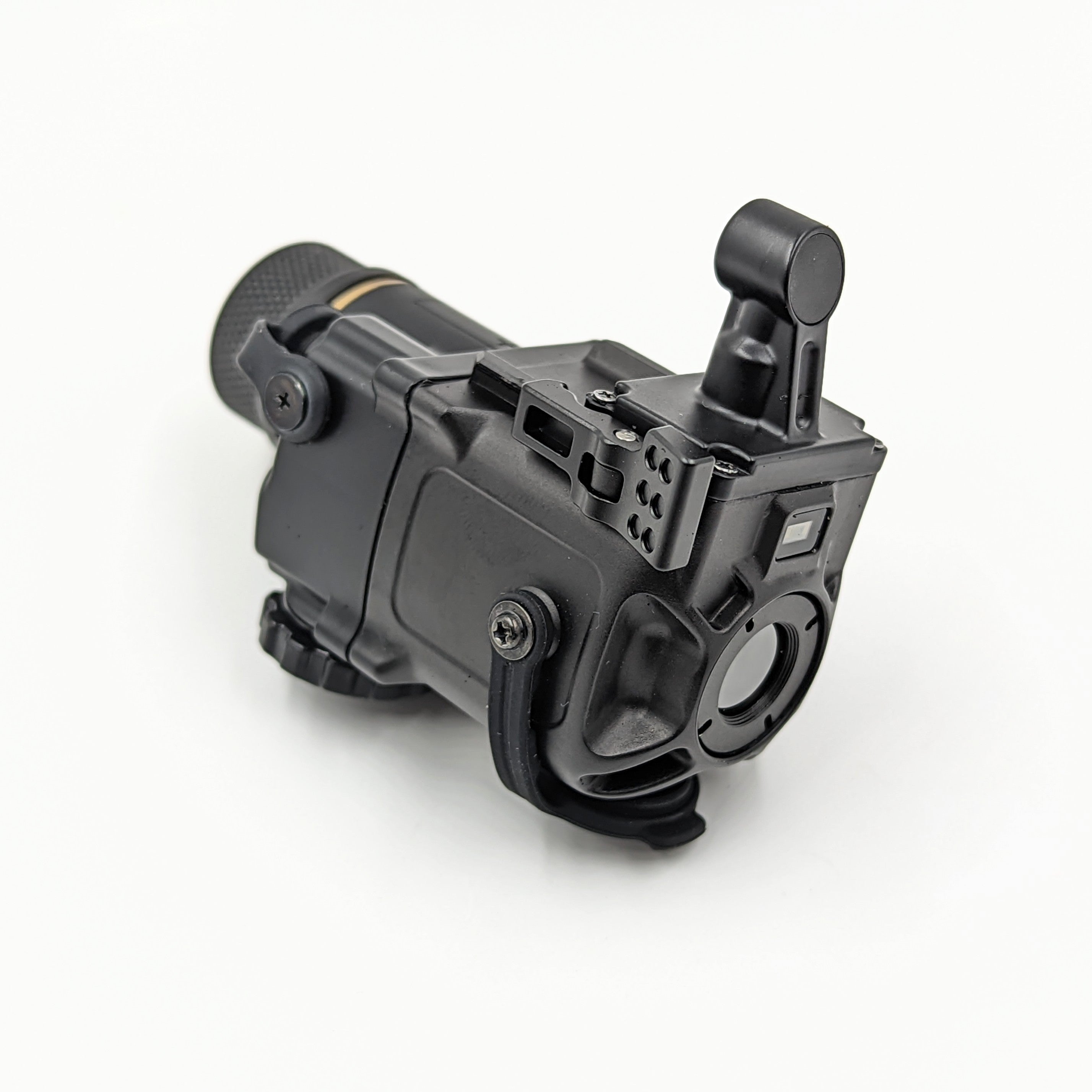

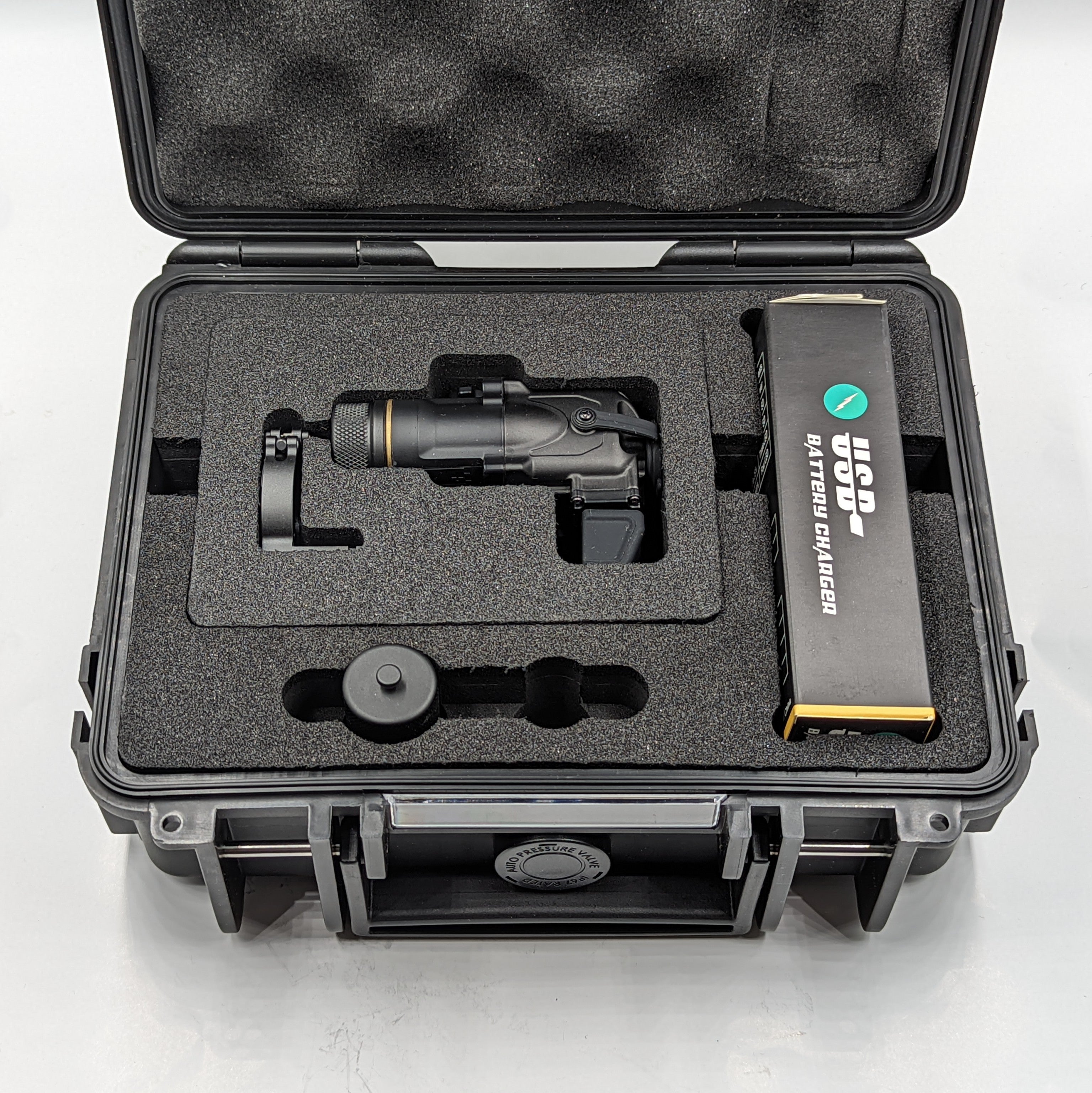

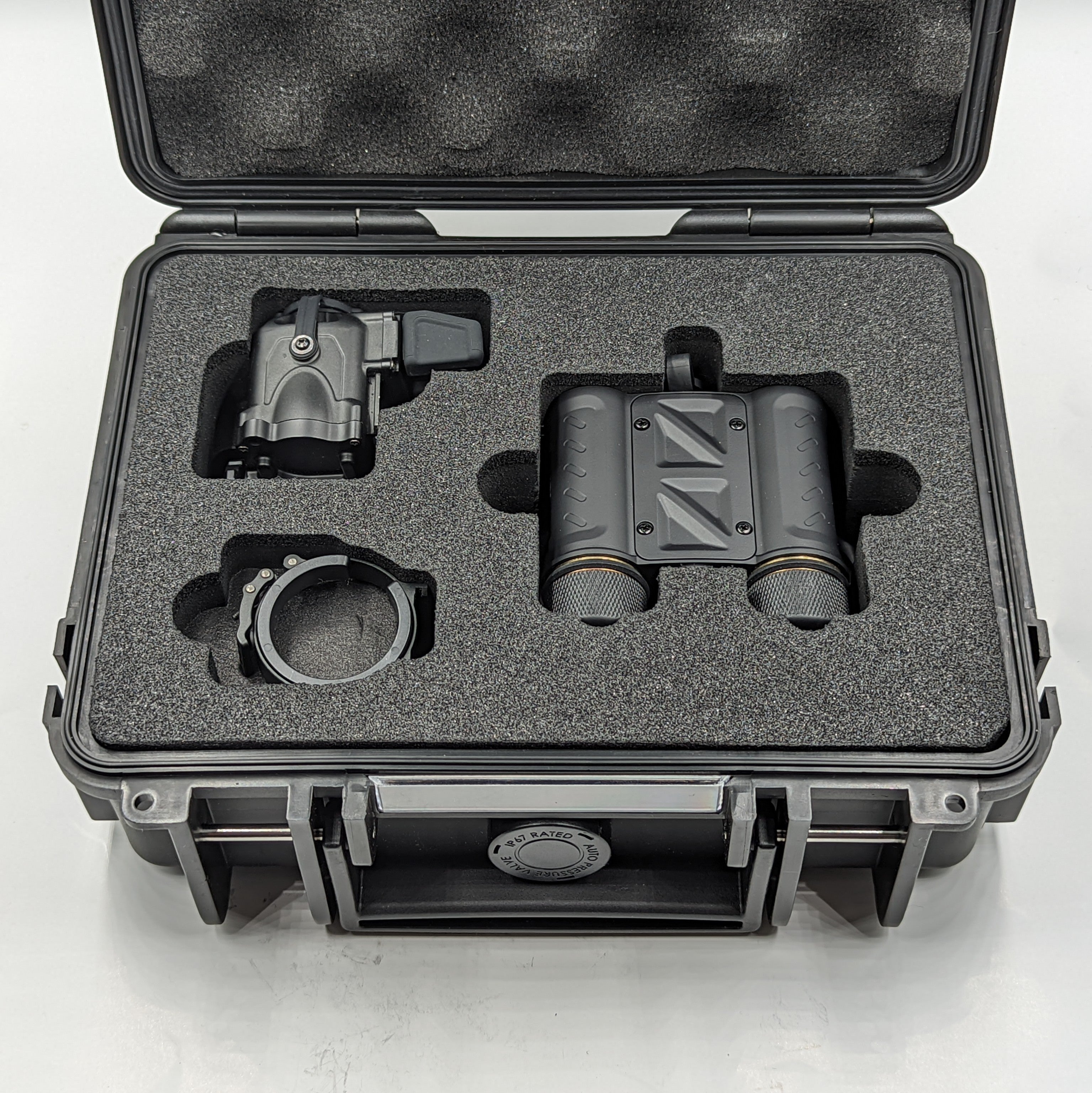

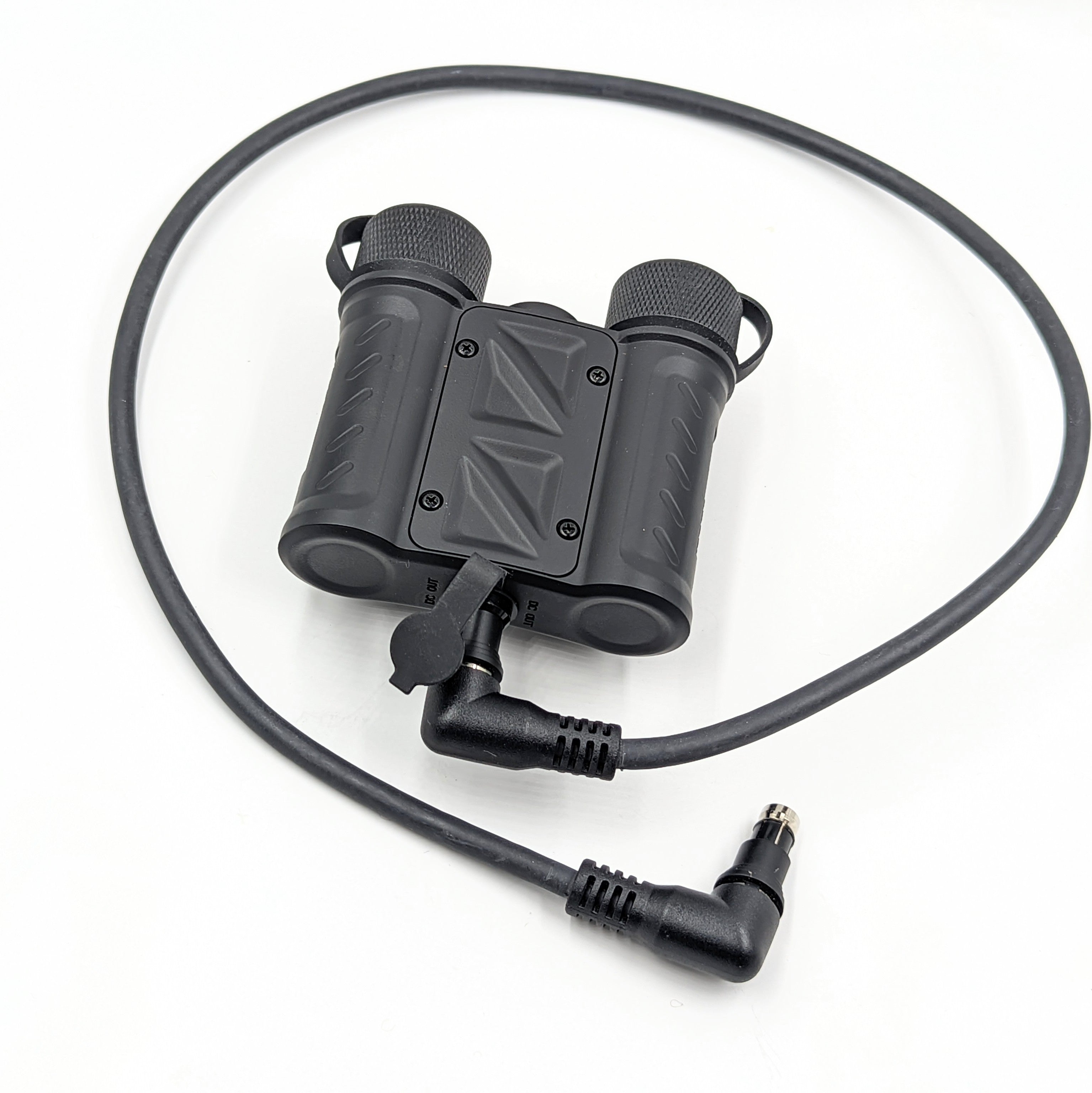

The JerryC systems are capable of using both 17335 and 18650 Li-Ion power cells (not included). The dual power versions include a Li-Ion battery charger, while the external only versions come with the JerryC Battery Pack that holds two 18650 Li-Ion power cells.
For those intending to use these for Force on Force training and simulation, save $100 when you add our Force on Force Shield to cart!
|
Detector Type |
Uncooled VOx infrared detector |
|
|
Detector Resolution |
384×288 or 640x512 |
|
|
Pixel Size |
12μm |
|
|
FOV |
20 or 30.5 |
|
|
Display Mode |
Manual/Automatic |
|
|
Image Mode |
White-hot/Highlight/Outline |
|
|
Power Supply |
17335,18650 |
|
|
Weight |
78g/110g |
|
|
Interface |
External power supply/Analog video (PAL)/RS232 |
|
|
Operating Temperature |
-40°C~+60°C |
|
|
Ingress Protection Rating |
IP67 |
|
As authorized sellers of iRay products, all products carry a factory warranty of 3 years excluding user negligence or modification. We deal direct to factory to offer you the best prices possible. If there is another iRay product that is not listed, do not hesitate to send us an inquiry.
Note: We are direct authorized dealers of Infiray Outdoor and Iray Technology Co. We do not deal with Infiray Canada which is not related to the actual manufacturer or distributor of the product. More information HERE.
Manual HERE
Menu for optical alignment:
This product is export controlled, but we do export! Please contact us prior to ordering for more information on the export process.
We are no longer able to export Iray products to the USA.
Origin:
Manufactured in China
